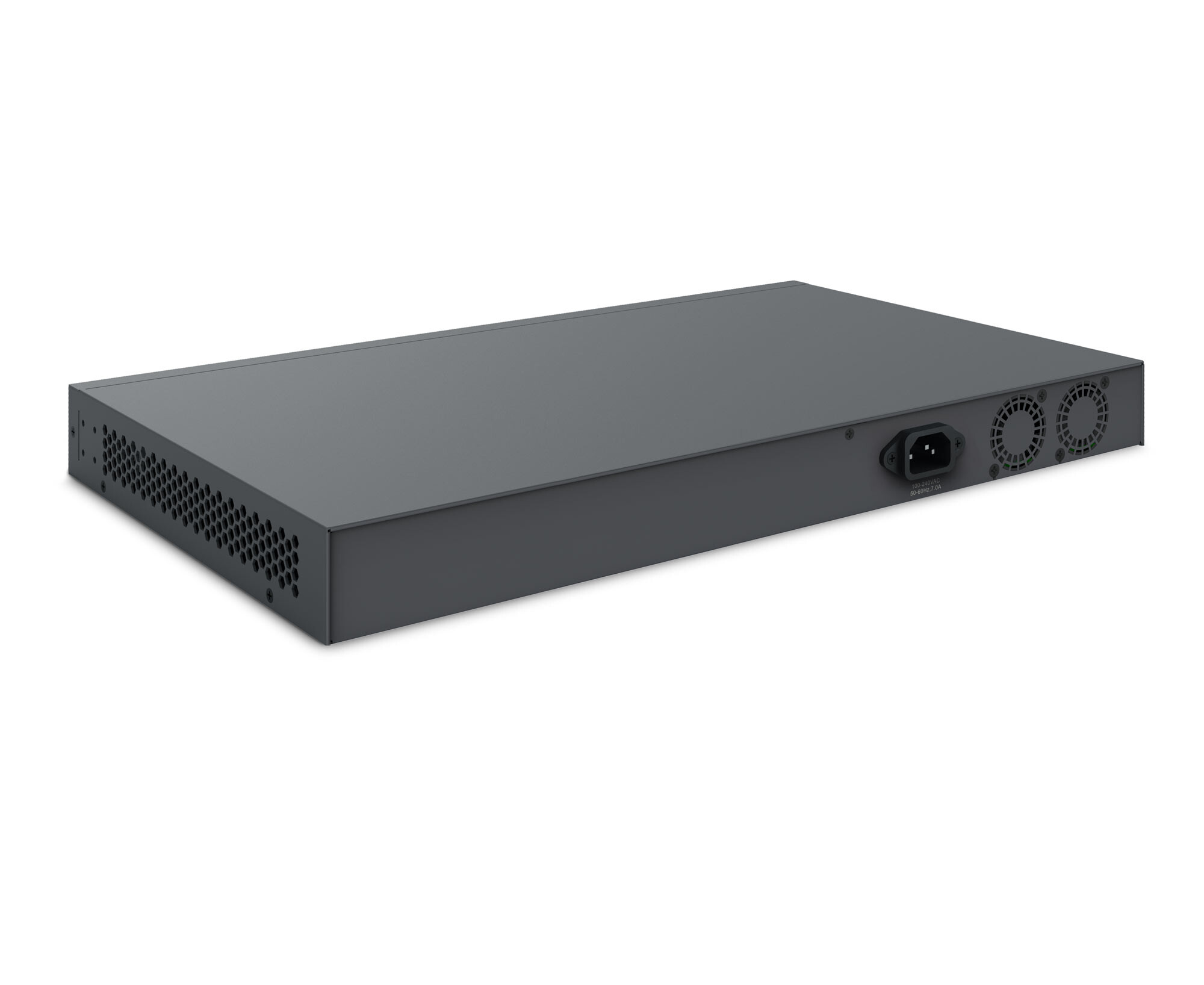

ECS2552FP Cloud Managed 48-Port Multi-Gigabit PoE+ Switch with 4 SFP+ Ports

740 Watt with simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points

EnGenius
SKU: ECS2552FP
MPN: 1402A0250002
Lagerstatus: 5-10 dagar
8 090 kr
Exklusive moms: 2 022,50 kr
st

> datasheet <

Product Highlights

The EnGenius ECS2552FP cloud-managed 48-port PoE+ multi-gigabit switch with 740-Watt budget, simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2552FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.

  • 48 10/100/1000/2500 Base-T GbE Ports

  • 32 Gigabit and 16 2.5-Gigabit PoE Ethernet Ports

  • Full-Featured Layer 2+ Ethernet Switch

  • 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget

  • 224 Gbps Switching capacity

  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports

  • Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations

  • Quick-Scan Device Register, Remote Monitoring and Troubleshooting

  • PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters

  • PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera

  • Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades

  • Advanced View Displays Network Topology with Devices and Relationships

  • Hybrid Switch Supports Multiple Management Options

Work Smart with EnGenius Cloud

Recensioner

Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
Technical Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 32 10/100/1000 Mbps Ports
16 100/1000/2500 Mbps Ports
4 SFP+ Ports
Switching Capacity 224Gbps
SDRAM 512MB
Flash Memory 128MB
PoE+ Capable Ports 1-48 (802.3af/at)
Total PoE Budget 740W
Power Source 100 ~ 240VAC, 50-60Hz
Physical Interface LED Indicators Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Software Features (L3 Features)
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Software Features (L2 Features)
Network Management EnGenius Cloud
ezMaster/SkyKey
Local Web GUI
MAC Address Table 32K
Jumbo Frame 10K
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Trust Mode Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/Egress)
Port Security Max. 256 Entries
Access Control List (ACL) MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Environmental & Physical
Temperature Range Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing) Operating: 5% - 95%
Package Contents 1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
Dimensions & Weights
Device ECS2552FP
Weight 10.74 Ibs. (4.87 kg)
Width 12.20” (310mm)
Length 17.32” (440 mm)
Height 1.73” (44 mm)
Packaging
Weight 13.18 lbs. (5.98 kg)
Width 16.89” (429 mm)
Length 21.57” (548 mm)
Height 4.13” (105 mm)
Warranty 2 years
Certifications CE, FCC, IC
