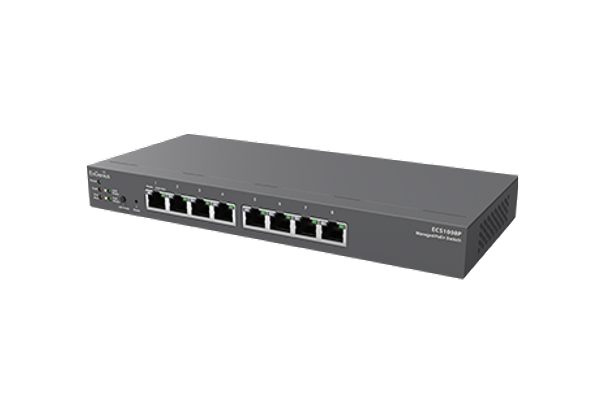

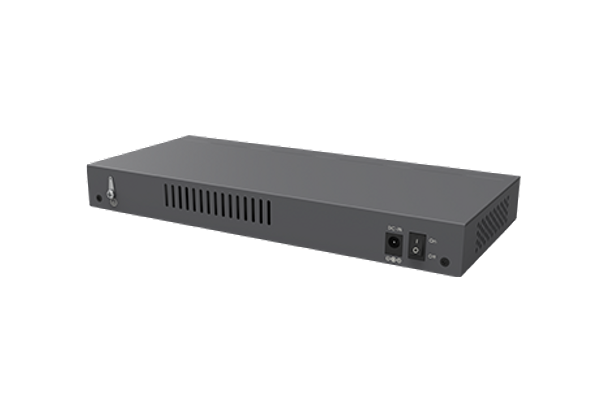

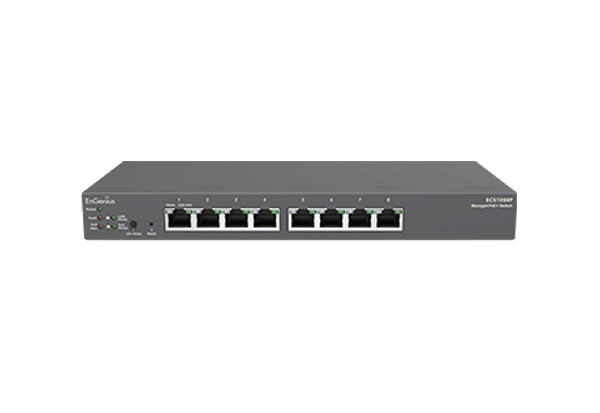

Cloud Managed 55W PoE 8 Port Network Switch
Layer 2 Managed 802.3af Compliant PoE 8 Port Network Switch With Centralized Network Management
The ECS1008P Cloud Managed 55W 8-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs.
- Managed by EnGenius Cloud Platform
- (8) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
- Desktop Model Supports Full-Featured Layer 2 Switching
- 802.3af Available On All Ports with a Total PoE Budget of 55W
Recensioner
Be the first to post a review for this product
| Port Standards |
802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet,802.3ab ,10000Base-T Ethernet, 802.3x Full-Duplex Flow Control |
| Network Ports |
(8)10/100/1000 Mbps Ports |
| Performance |
Switching Capacity: 16Gbps,Forwarding Mode StoreAndForward |
| , Flash Memory 32 MB, SDRAM 256MB, Packet Buffer Memory 512 KB, Address Database Size 8,000 MAC Addresses |
| PoE Capability |
PoE Standard: Ports 1~8 Support IEEE 802.3af, PoE Capable Ports: All Gigabit Ethernet Ports |
| Power Source |
AC Input 100 ~ 240VAC 50-60Hz 1.2A, DC Output 54V/1.67A |
| LED Indicators |
Device, Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED Ports, Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot) |
| Operating Temperature Range |
0 to 40° C |
| Storage Temperature Range |
-20 to 70 ° C |
| Weight |
1.5 kg |
| W x D x H |
105 x 240 x 27 |
| Package Contents |
(1) ECS1008P Switch, (1) Power Cord, (1) RJ45 Console Cable, (1) Rack Mount Kit,(1) Quick Installation Guide |
