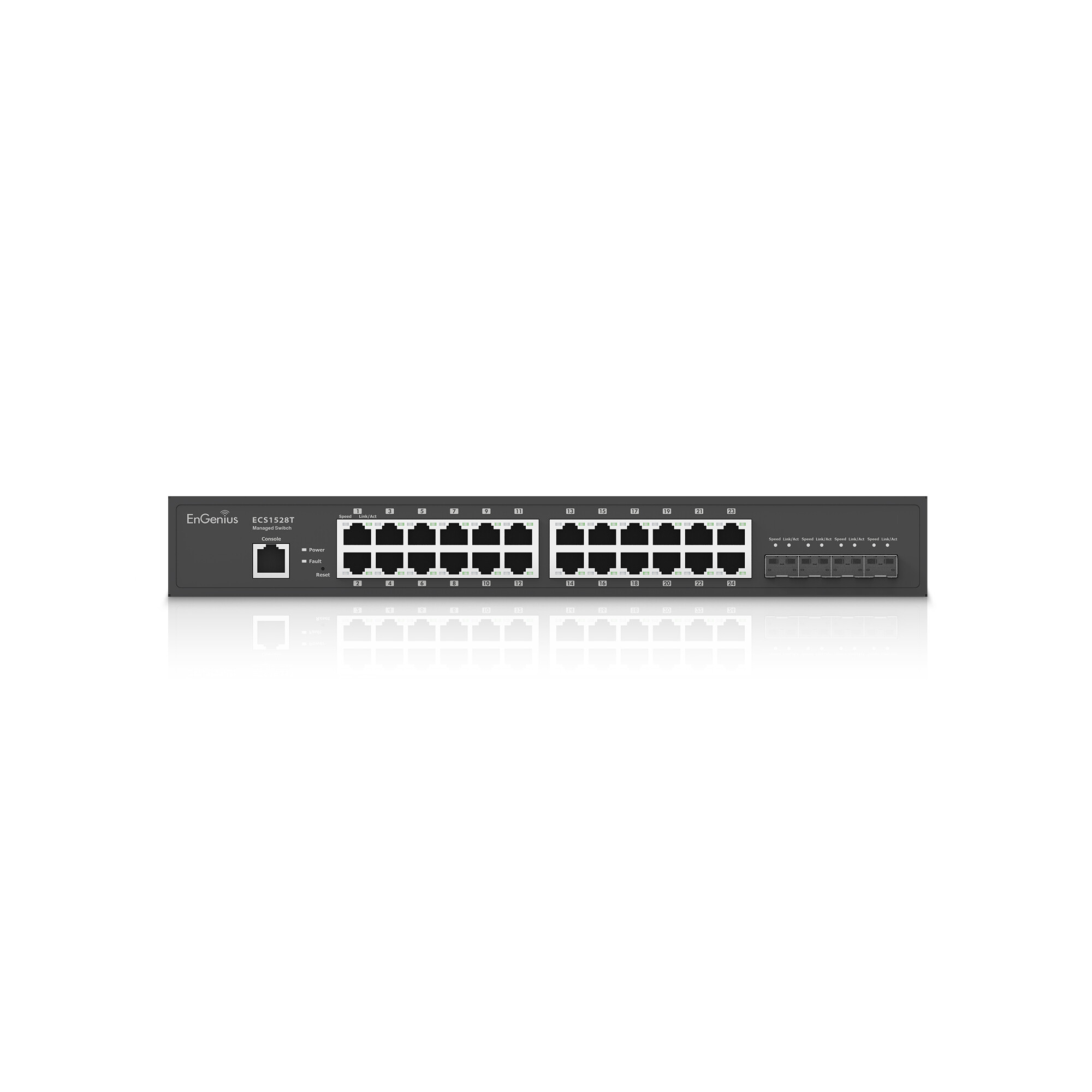

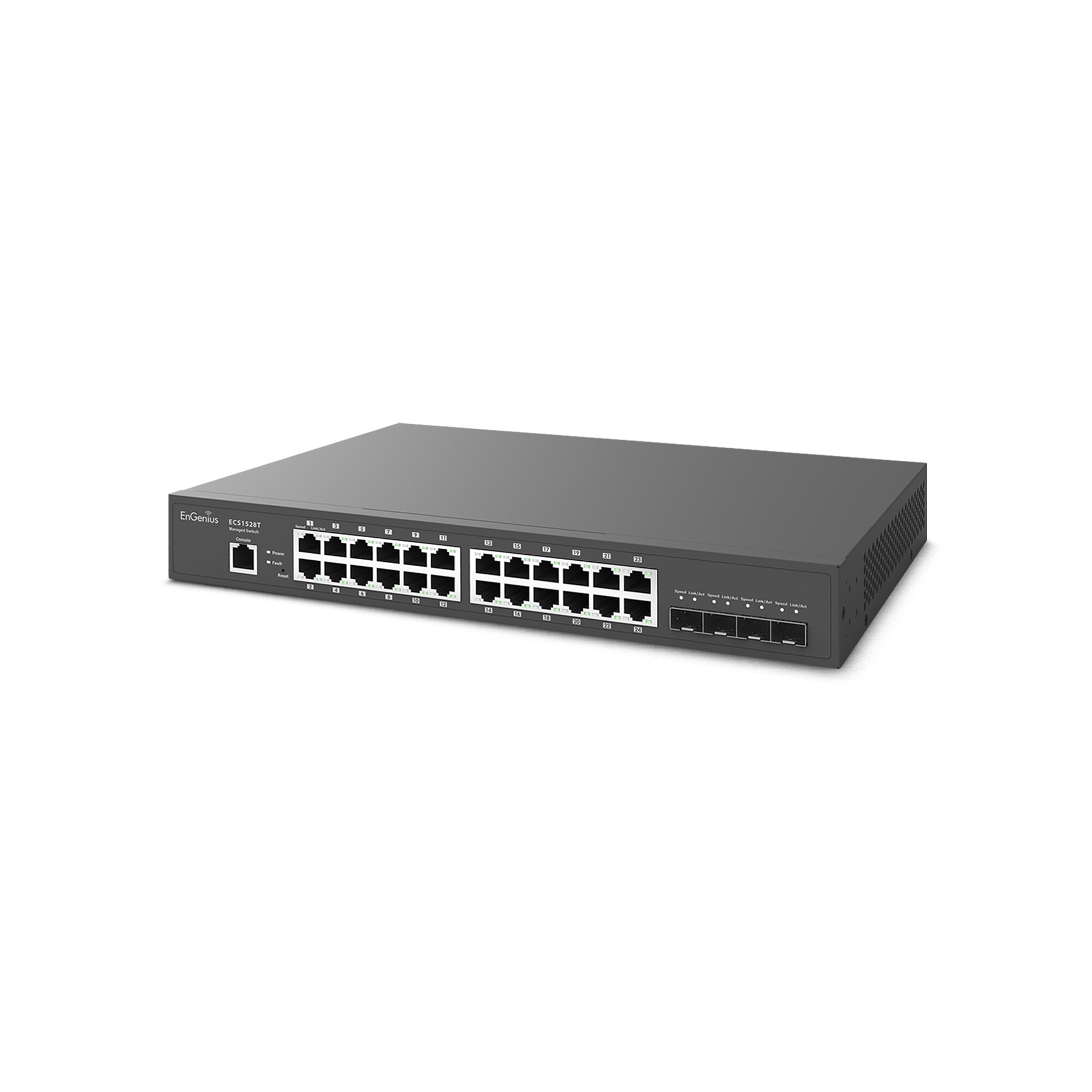

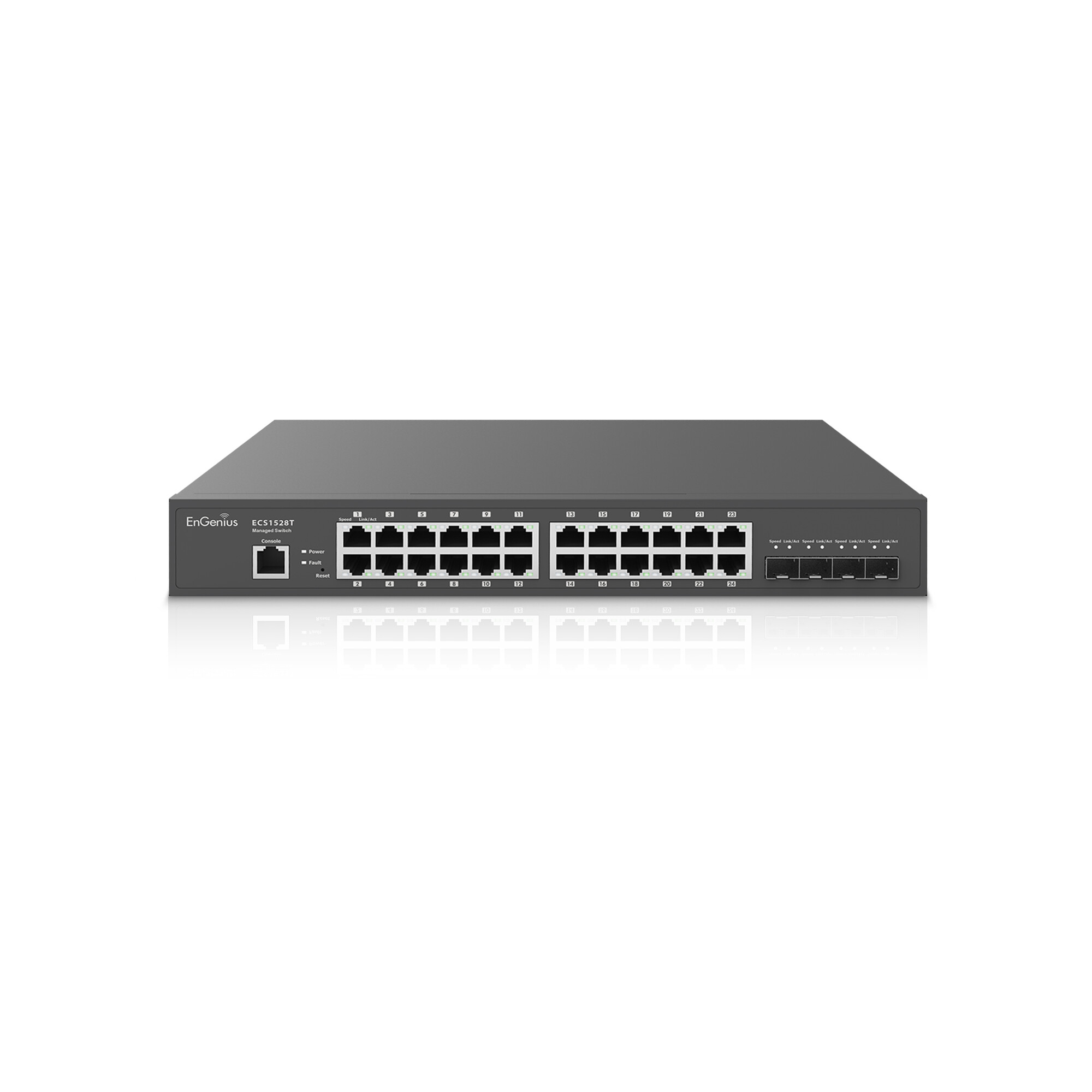

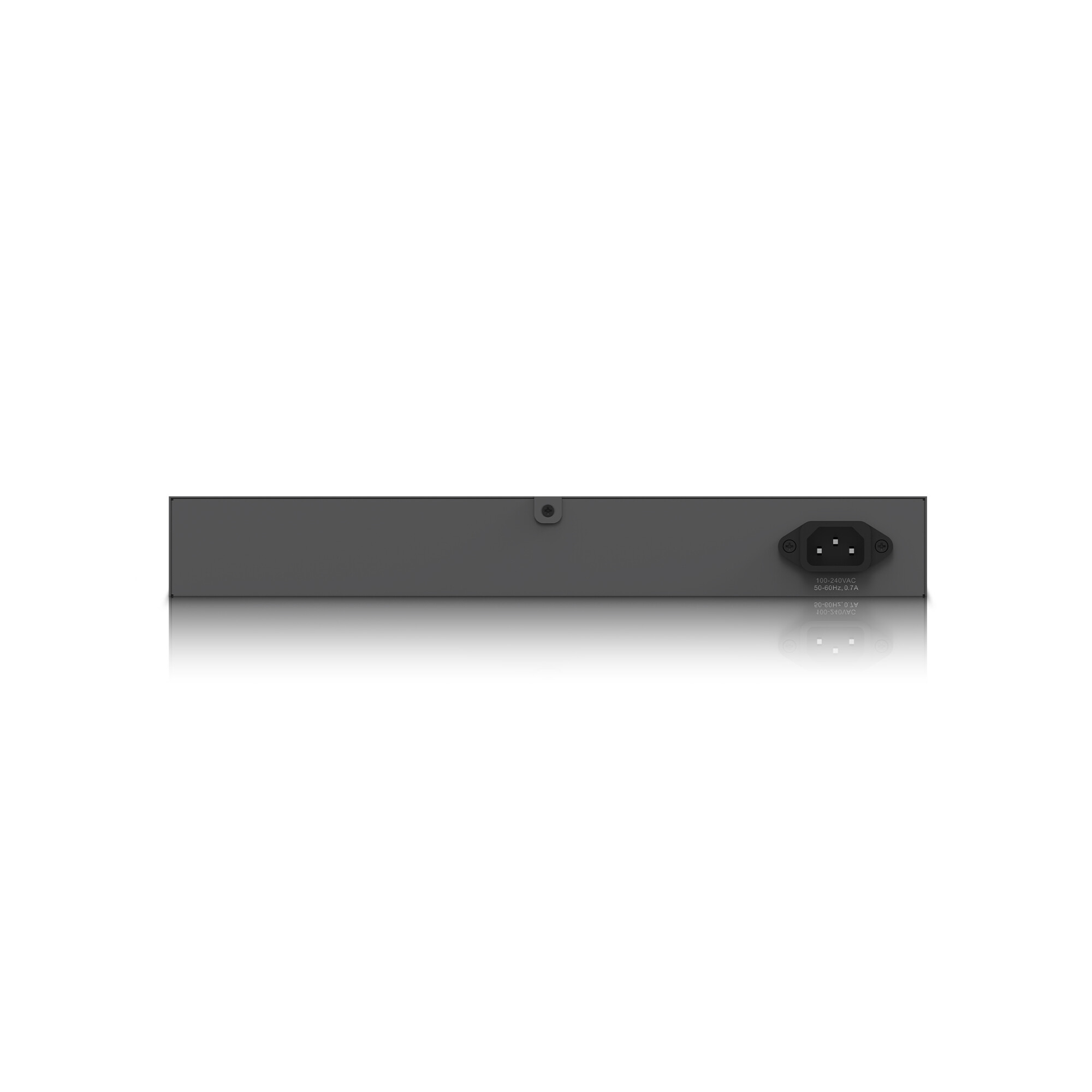

ECS1528T Cloud Managed 24-Port Gigabit Switch with 4 SFP+ Ports

Layer 2+ Switch with Multiple Management Options for Large Businesses. 24 10/100/1000 Base-T GbE Ports

MPN: 1402A0313301
Lagerstatus: 5-10 dagar
4 995 kr
Exklusive moms: 1 248,75 kr

> datasheet <

Product Highlights

EnGenius Cloud ECS1528T is a 24-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses.

  • 24 10/100/1000 Base-T GbE Ports

  • Full-Featured Layer 2+ Switching

  • 128 Gbps Switching capacity

  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports

  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication

  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency

Work Smart with EnGenius Cloud


Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
Technical Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 24 10/100/1000 Mbps Ports + 4x SFP+ Ports
Switching Capacity 128Gbps
Flash Memory 128MB
Power Source 100 ~ 240VAC, 50-60Hz
Physical Interface LED Indicators Power LED
Fault LED
Ports Link/Activity/Speed (per Ethernet port)
Software Features (L3 Features)
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Software Features (L2 Features)
MAC Address Table 16K
Jumbo Frame 9K
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Trust Mode Cos/802.1p
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/Egress)
Port Security Max. 256 Entries
Access Control List (ACL) MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface (GUI) HTTP IPv4 / IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
802.1d Spanning tree
Environmental & Physical
Temperature Range Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing) Operating: 5% - 95%
Package Contents 1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
Device Dimensions & Weights
Device ECS1528T
Weight 5.93 lbs. (2.69 kg)
Width 17.32” (440 mm)
Depth 7.87” (200 mm)
Height 1.73” (44 mm)
Weight 6.64 lbs. (3.01 kg)
Width 11.08” (281.5 mm)
Length 20.15” (512 mm)
Height 4.02” (102 mm)
Warranty 2 year
Certifications CE, FCC, IC
