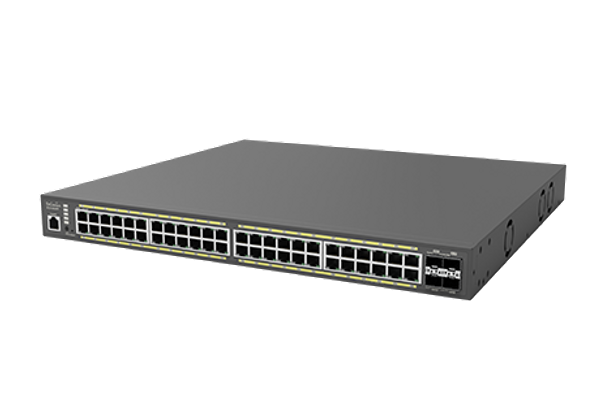

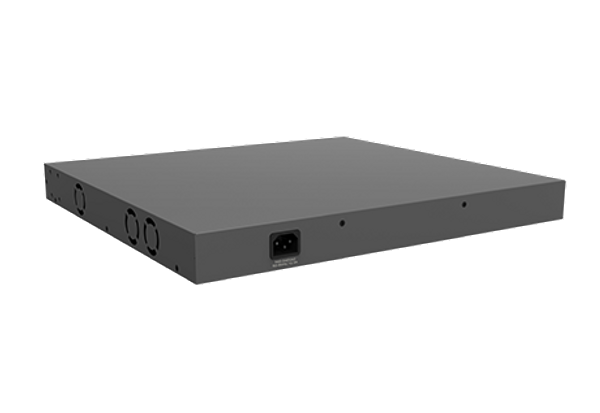

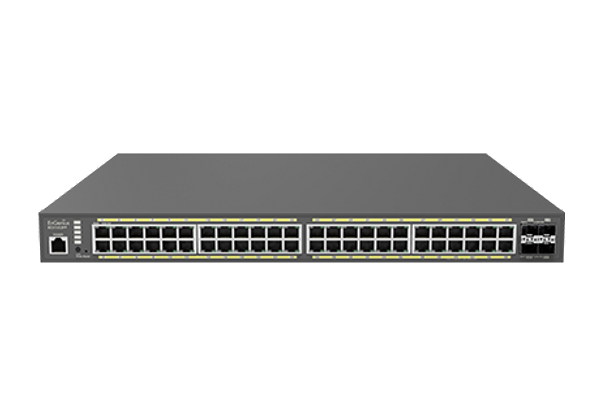

Cloud Switch ECS1552FP, L2, 48 PoE ports 740watt

ECS1552FP Layer 2 Managed 802.3at Compliant PoE 48 Port, 4 SFP+ Network Switch

Lagerstatus: 5-10 dagar
14 300 kr
Exklusive moms: 3 575 kr

> Datasheet <

Cloud Switch ECS1552FP, 48 PoE ports 740 watt, 4 SFP+
Layer 2 Managed 802.3at Compliant PoE 48 Port Network Switch

The ECS1552FP Cloud Managed 740W 48-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs.
  • Managed by EnGenius Cloud Platform
  • (48) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
  • (4) 1000/10 000 SFP+ Ports
  • Full-Featured Layer 2 Switching
  • 802.3af/at Available On All Ports with a Total PoE Budget of 740W

Work Smart with EnGenius Cloud


Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
Port Standards 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet,802.3ab ,10000Base-T Ethernet, 802.3x Full-Duplex Flow Control
Network Ports (48)10/100/1000 Mbps Ports, SFP+ Ports: 4 x 10G
Performance Switching Capacity 176Gbps, Forwarding Mode StoreAndForward, Flash Memory 128 MB, SDRAM 512MB, Packet Buffer Memory 2MB, Address Database Size 32k MAC Addresses
PoE Capability Ports 1-48 Supports IEEE 802.3at, PoE+ Capable Ports: All Gigabit Ethernet Ports
PoE Budget 740W
Power Source AC Input 100 ~ 240VAC 50-60Hz 1.2A, DC Output 54V/1.67A
LED Indicators Device, Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED Ports, Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot)
Operating Temperature Range 0 to 40° C
Storage Temperature Range -20 to 70 ° C
Weight 5,9kg
W x D x H 310 x 440 x 44
Package Contents (1) ECS1552FP Switch, (1) Power Cord, (1) RJ45 Console Cable, (1) Rack Mount Kit,(1) Quick Installation Guide
