Product Highlights

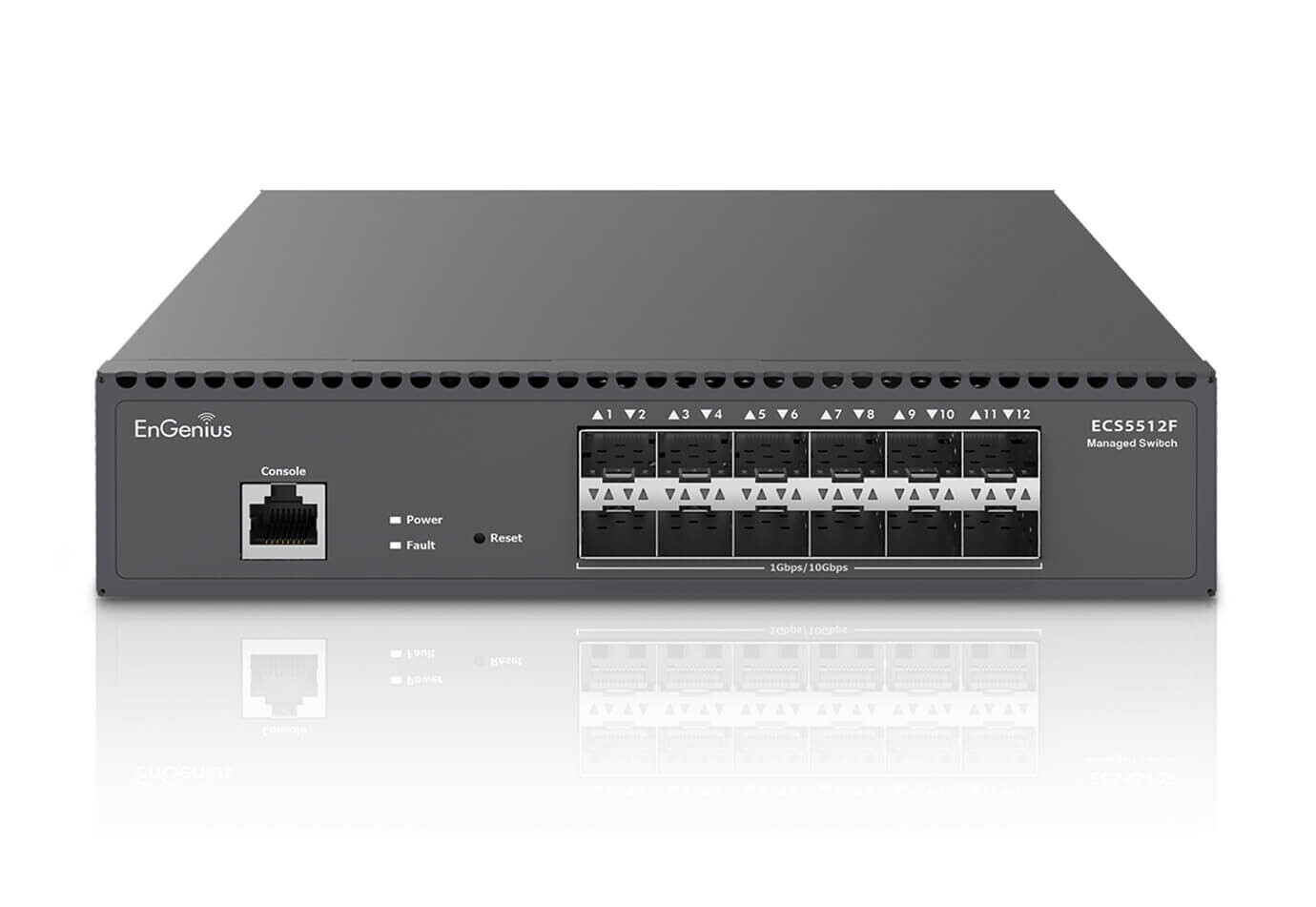

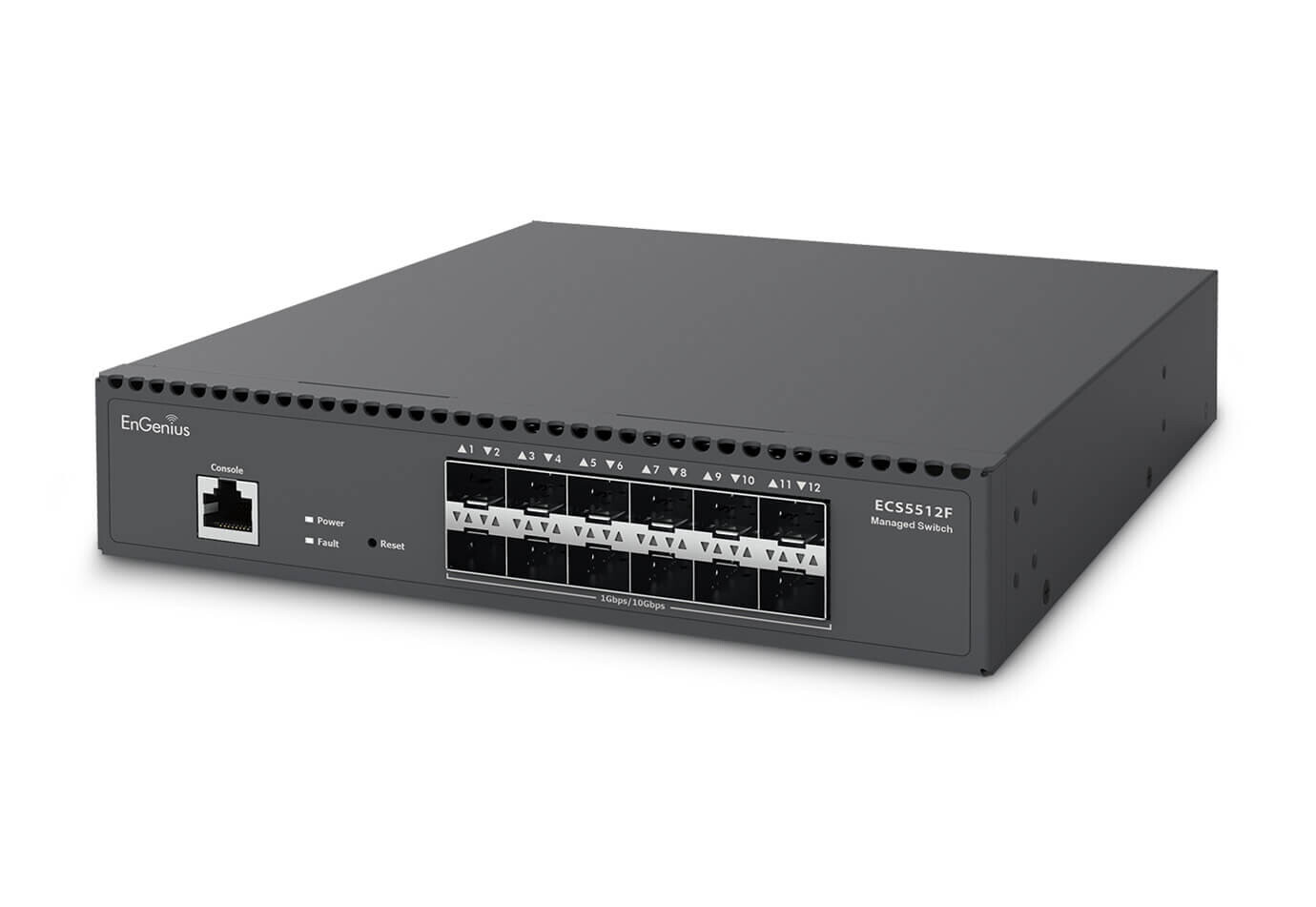

The EnGenius Cloud ECS5512F Cloud Managed Layer 2+ Half-Rack Aggregate Switch, is a reliable and easy-to-manage 12-Port 10G SFP+ uplink ports switch that provides high-speed connectivity for your network devices. Its Zero-touch provisioning and centralized cloud management make it easy to set up and manage your network from anywhere, anytime. With its Voice-VLAN feature and robust security, you can ensure quality voice and video traffic while protecting against malicious attacks.
- 12x 10G SFP+ (fiber) uplink ports to high-speed NAS and servers for a high-performance network
- Zero-touch provisioning centralized cloud management and visualized monitoring
- Hybrid cloud switch supports flexible management options such as EnGenius Cloud or standalone
- Robust security that supports Port-based / MAC-based ACL Storm control, DHCP Snooping, DOS Attack Prevention, 802.1X & RADIUS Authentication, and more
- Optimized for quality voice and video traffic with Voice-VLAN feature
Recensioner
Be the first to post a review for this product
| Port Standards |
802.3u 100Base-TX Ethernet |
|
802.3ab 1000Base-T Ethernet |
|
802.3bz 2.5G/5GBase-T Ethernet |
|
802.3x Full-Duplex Flow Controltrol |
| Network Ports |
12x SFP+ Ports |
| Switching Capacity |
240Gbps |

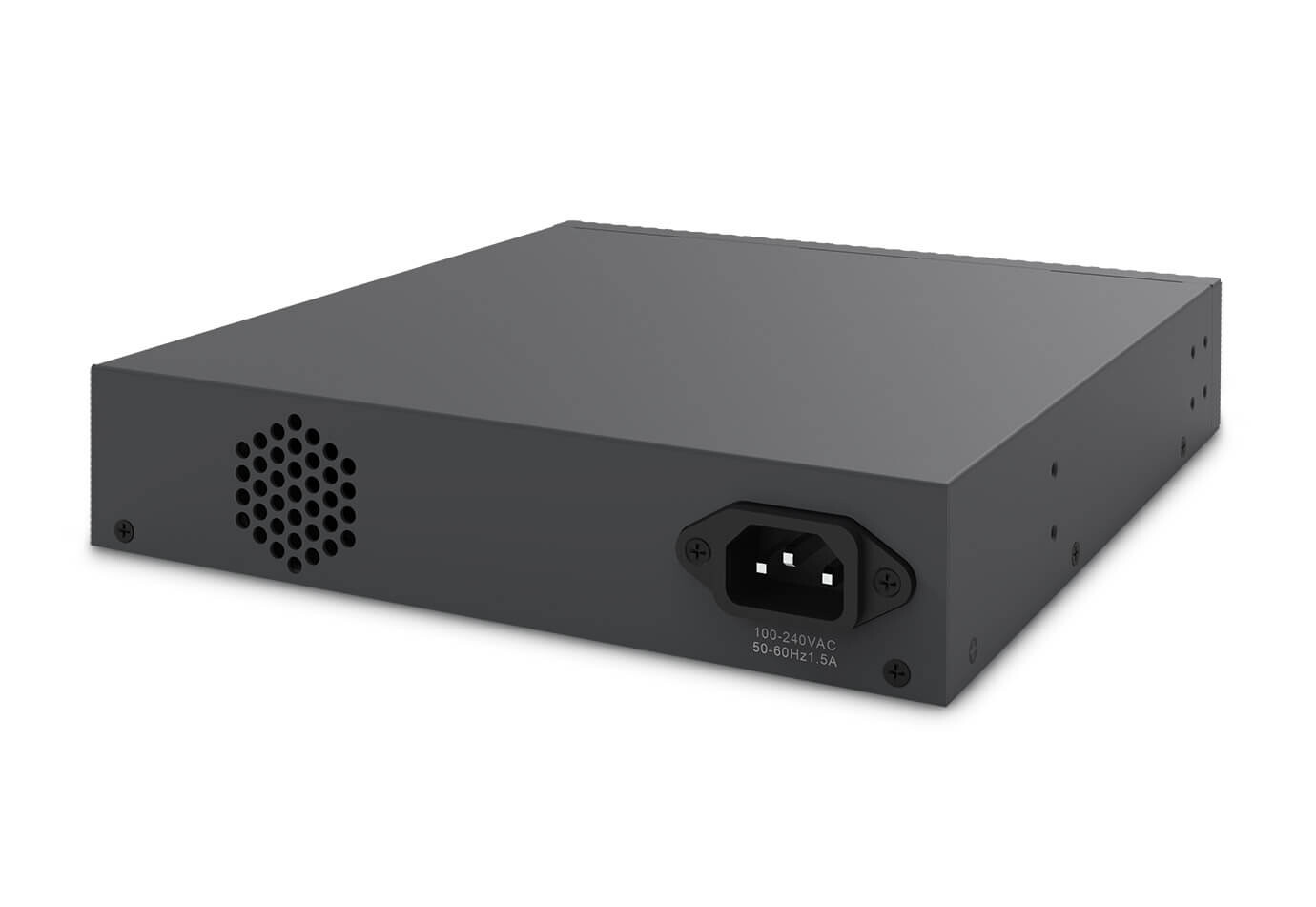

| Power Source |
100 ~ 240VAC, 50-60Hz |

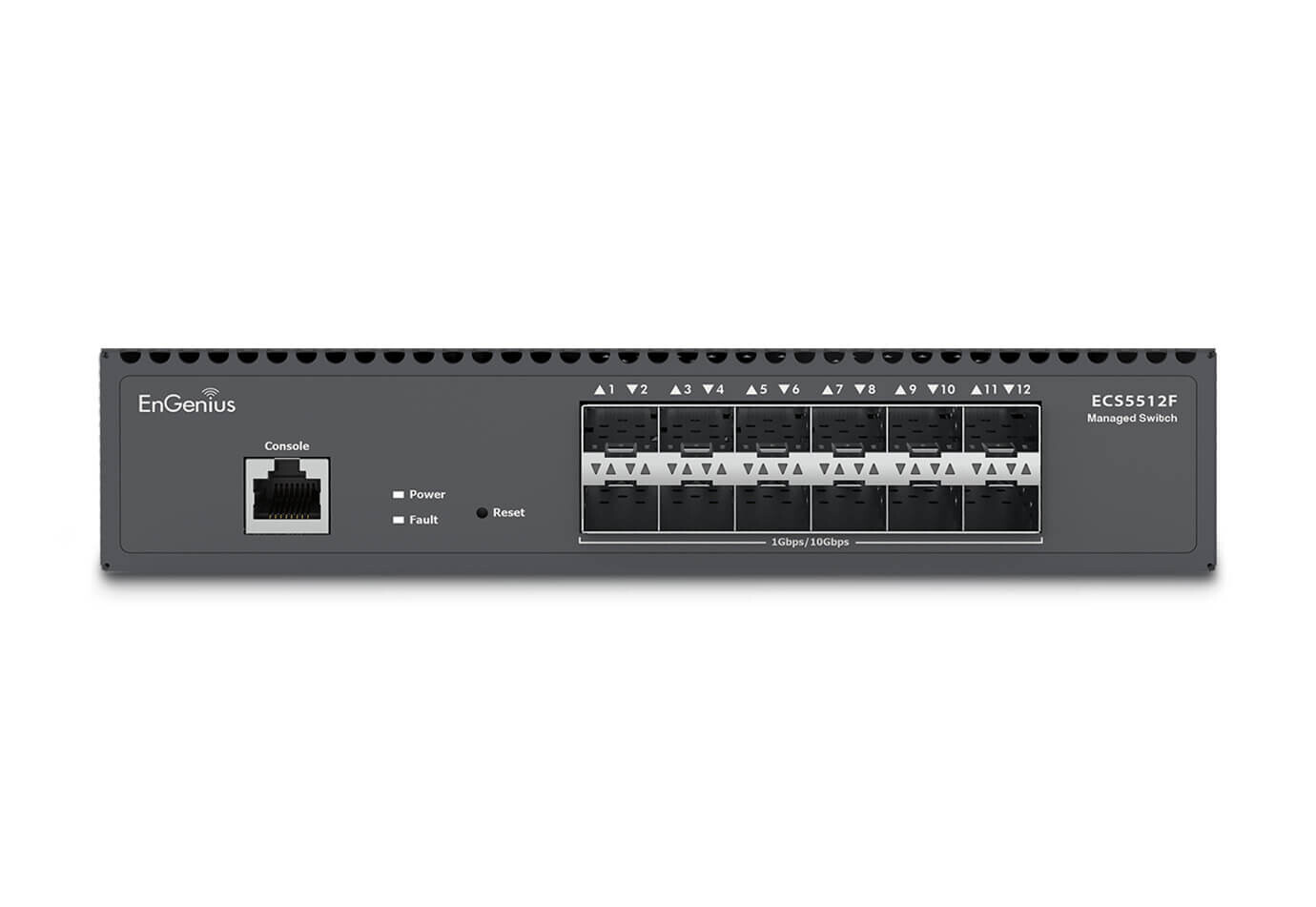

| Physical Interface |
LED Indicators: Power LED |
|
Fault LED |
| Ports Indicators |
Link/Activity/Speed (per SFP slot) |
| Multiple IP Interface |
20 IPv6 address |
| ARP Table |
Max. 192 ARP entries |
| Static ARP |
Static 192 ARP entries |
| IPv4 Static Route |
Max. 63 entries |
| IPv6 Static Route |
Max. 21 entries |
| L2 Features |
| Network Management |
EnGenius Cloud Local Web GUI |
| Multicast Group |
Max 256 groups |
| MLD Snooping |
MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported |
Queue /Que: 8 |
| Trust Mode |
Cos/802.1p |
|
DSCP |
|
CoS/802.1p-DSCP |
| Scheduling Mechanism |
Strict / WRR/ Strict + WRR |
| Bandwidth Control |
Port-based bandwidth control (Ingress/Egress) |
| Port Security |
Max. 256 Entries |
| Access Control List (ACL) |
MAC Based ACL |
|
IPv4/IPv6 Based ACL |
|
ACL Binding |
|
Time base ACL |
| Web Graphical User Interface(GUI) |
HTTP IPv4 / IPv6 |
|
HTTPS IPv4 / IPv6 |
| SNMP |
SNMP v1/v2c/v3 Support |
| System Time |
Time Setting/Daylight saving |
| Common L2 Features |
802.1D Spanning Tree 802.1w Rapid Spanning Tree 802.1S Rapid Spanning Tree Loopback Detection Multicast Filitering IGMP Snooping 802.1Q VLAN tagging 802.3x flow control 802.3ad Link Aggregation IPv4 DHCP Relay IPv4 DHCP Snooping IPv4 DHCP Snooping Source MAC Address Check-up ARP Packet Validation (additional validation checks) Voice VLAN Port-based VLAN CoS Mapping 802. 1X Radius Authentication Protocol IPv4 Settings/ IPv6 Settings Command Line Interface (CLI) SSH Server Telnet Server TFTP Client Configuration Upgrade/ Backup Simple Network Time Protocol (SNTP) SYSLOG |
| Temperature Range |
Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) |
Operating: 5% - 95% |
| Package Contents |
1x Cloud Managed 10 Gig Switch |
|
1x Quick Installation Guide |
|
1x Power Cord |
|
1x RJ45 Console Cable |
|

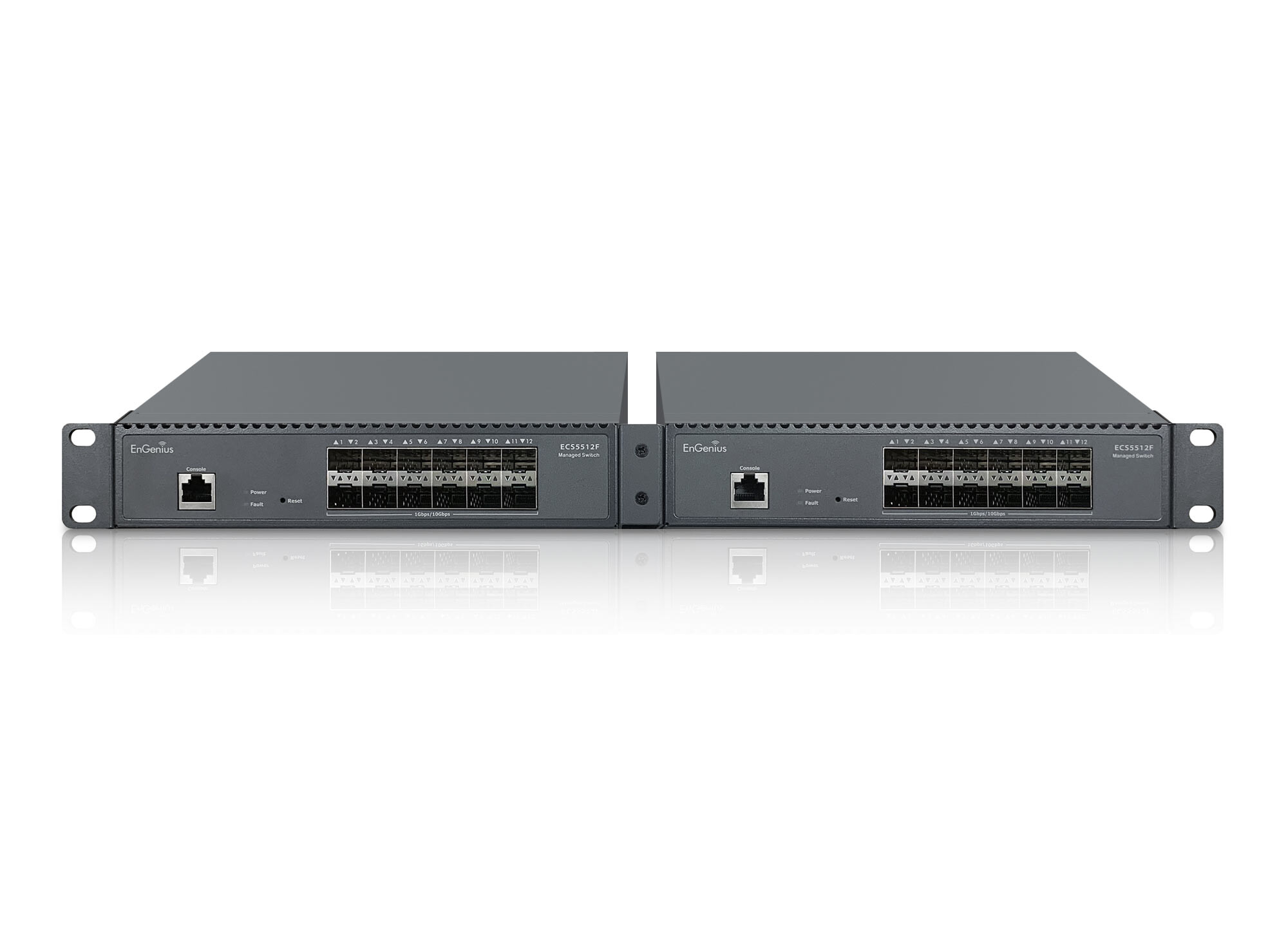

1x Rack Mount Kit |
| Device Dimensions & Weights |
| Device |
ECS5512F |
| Weight |
1,39 Kg |
| Width |
210 mm |
| Length |
230 mm |
| Height |
44 mm |
| Packaging Content |
1x Cloud Managed Gigabit Switch |
|
1x Product Card |
|
1x Power Cord |
|
1x RJ45 Console Cable |
|
1x Rack Mount Kit |
| Certifications |
CE, FCC, IC |
