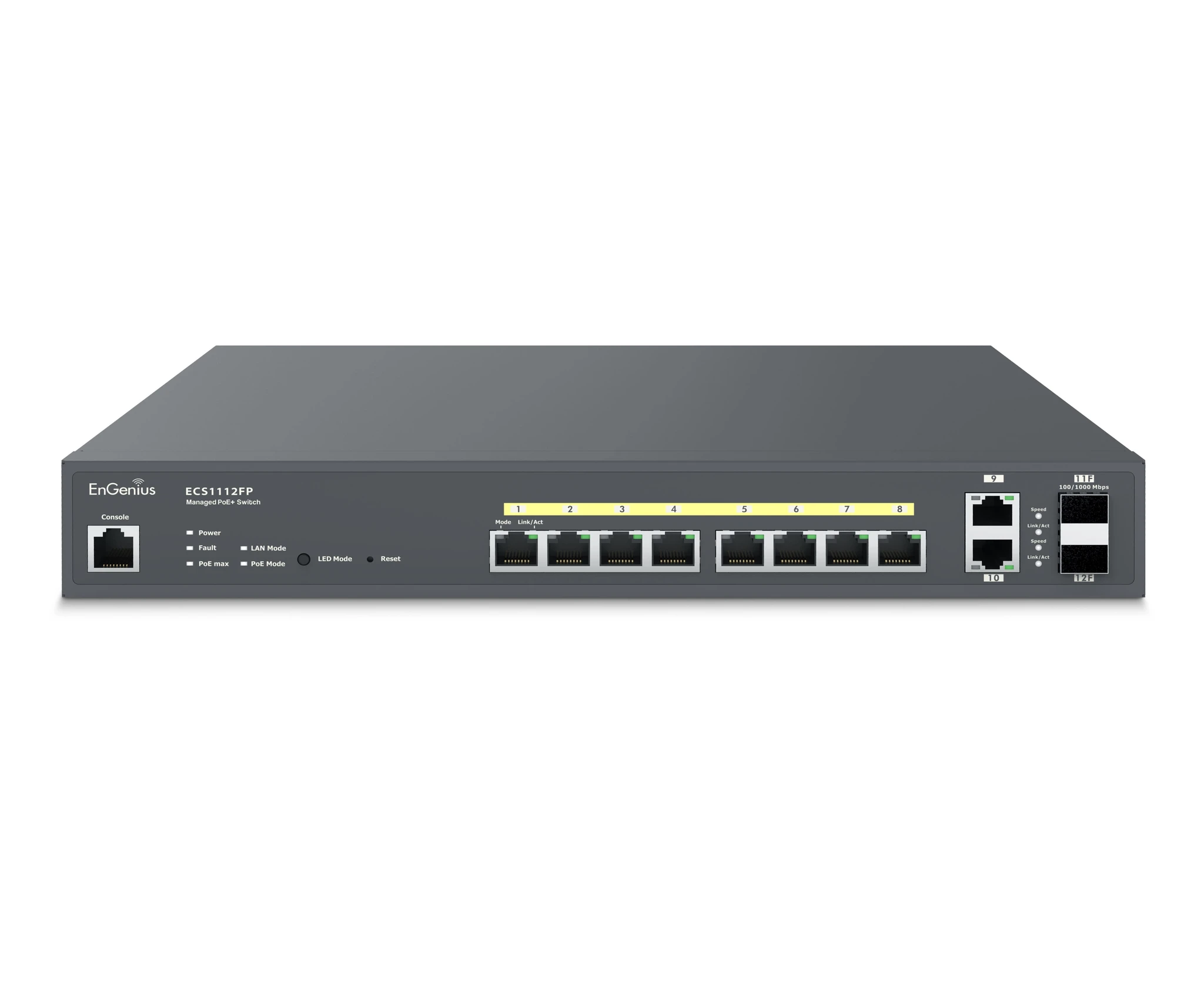

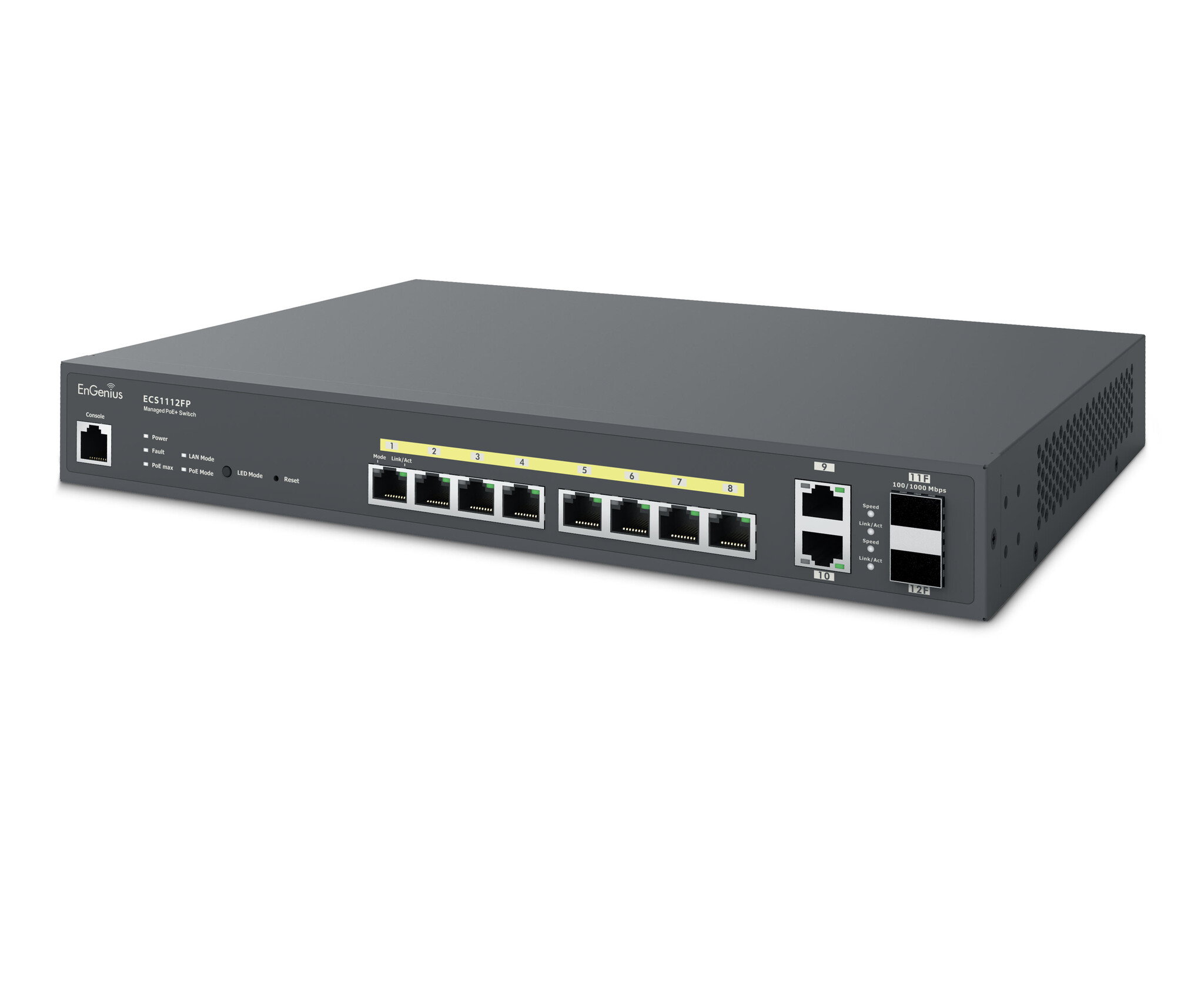

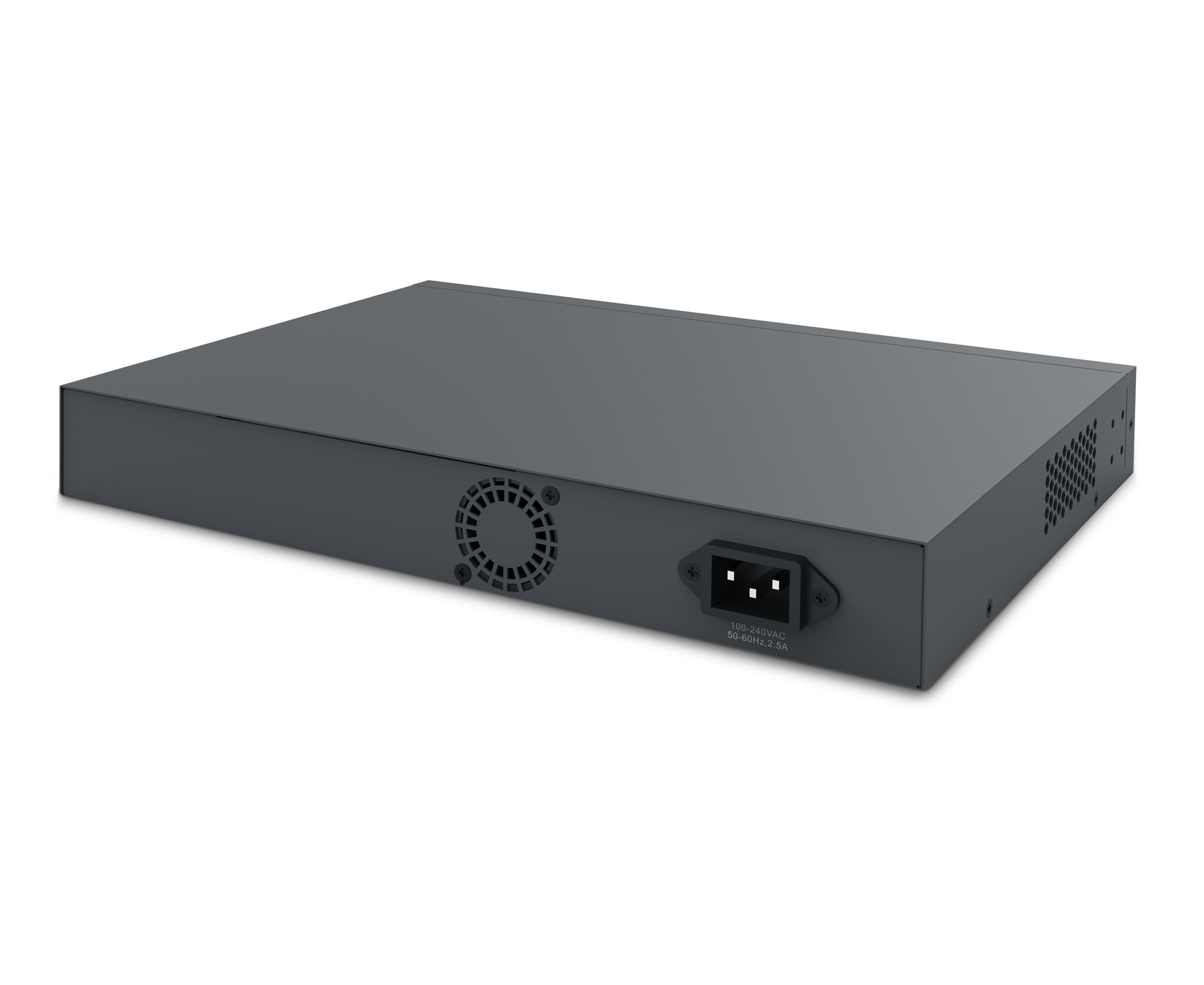

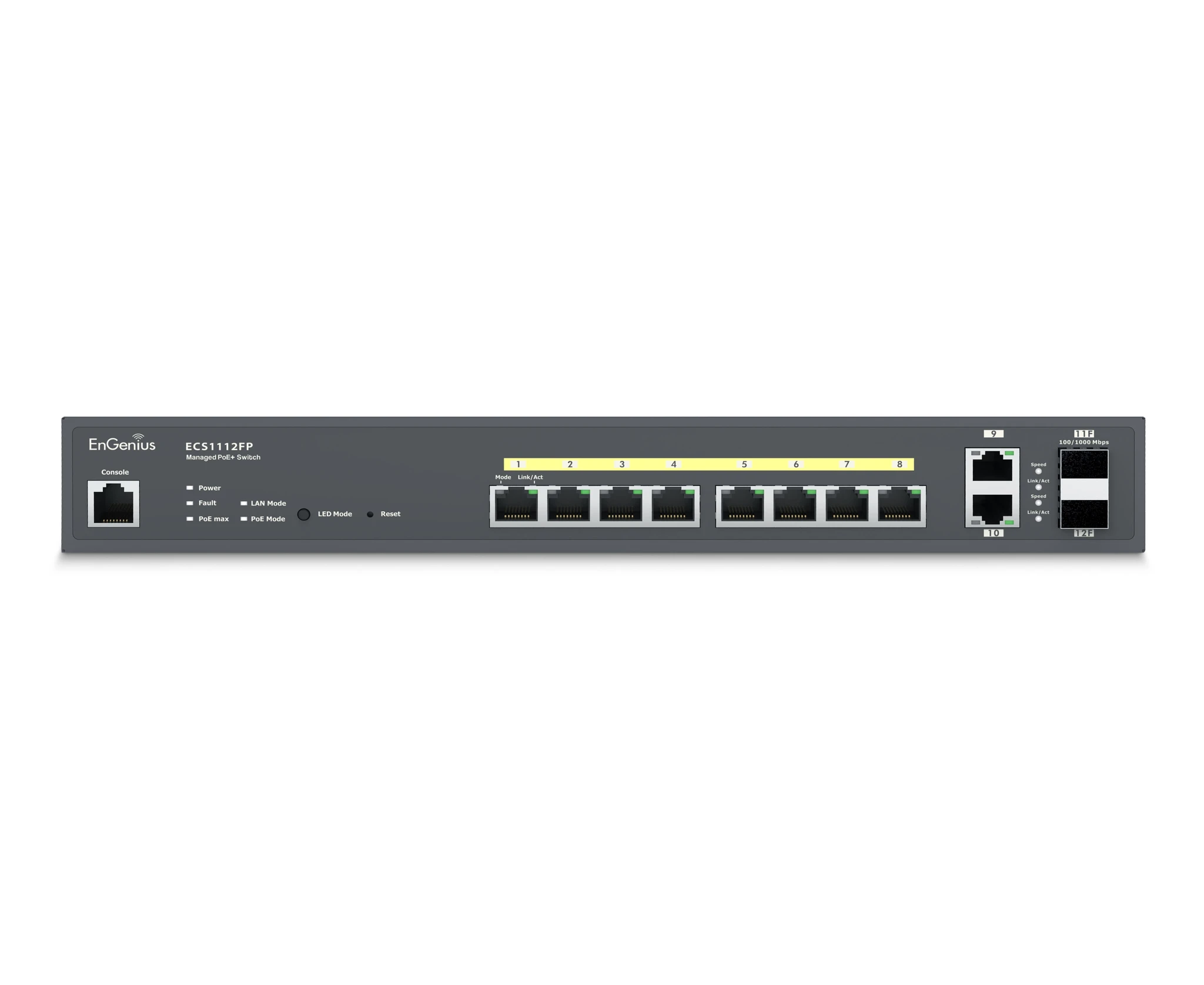

ECS1112FP Cloud Managed 8-Port Gigabit 130W PoE+ Switch
Layer 2+ Switch with 4 Uplink Ports and Multiple Management Options for SMBs. 8 x 10/100/1000 Base-T GbE Ports
SKU:
ECS1112FP
MPN:
1402A0150310
Lagerstatus:
5-10 dagar
Product Highlights
EnGenius Cloud ECS1112FP, an 8-Port Gigabit PoE+ Layer 2+ Switch with 130W Budget, 2 GbE and 2 Dual-Speed SFP ports for uplinks. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- 8 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 130W PoE budget
- 24 Gbps Switching capacity
- 2 Gigabit Ethernet Port and 2 Dual-Speed SFP (fiber) uplink ports
Work Smart with EnGenius Cloud
Recensioner
Be the first to post a review for this product
| Technical Specifications |
|---|
| Port Standards | 802.3 10Base-T Ethernet |
| 802.3u 100Base-TX Ethernet | |
| 802.3ab 1000Base-T Ethernet | |
| 802.3x Full-Duplex Flow Control |
| Network Ports | 10 10/100/1000 Mbps Ports + 2x SFP Ports |
| Switching Capacity | 24Gbps |
| SDRAM | 256MB |
| Flash Memory | 32MB |
| PoE+ Capable Ports | 1-8 |
| Total PoE Budget | 130W |
| Power Source | 100 ~ 240VAC, 50-60Hz |
| Physical Interface LED Indicators | Power LED |
| Fault LED | |
| PoE Max LED | |
| LAN Mode LED | |
| PoE Mode LED |
| Ports | Link/Activity/Speed (per Ethernet port) |
| Link/Activity/Speed (per SFP slot) |
| Software Features (L3 Features) | |
|---|---|
| Multiple IP Interface | 20 IPv6 address |
| ARP Table | Max. 192 ARP entries |
| Static ARP | Static 192 ARP entries |
| IPv4 Static Route | Max. 63 entries |
| IPv6 Static Route | Max. 21 entries |
| Software Features (L2 Features) |
|---|
| MAC Address Table | 8K |
| Jumbo Frame | 9K |
| Multicast Group | Max 256 groups |
| MLD Snooping | MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported | Queue 8 |
| Trust Mode | Cos/802.1p |
| DSCP | |
| CoS/802.1p-DSCP |
| Scheduling Mechanism | Strict / WRR/ Strict + WRR |
| Bandwidth Control | Port-based bandwidth control (Ingress/Egress) |
| Port Security | Max. 256 Entries |
| Access Control List (ACL) | MAC Based ACL |
| IPv4/IPv6 Based ACL | |
| ACL Binding | |
| Time base ACL |
| Web Graphical User Interface(GUI) | HTTP IPv4 / IPv6 |
| HTTPS IPv4 / IPv6 |
| SSL Certificate | Certificate/Key Import |
| SNMP | SNMP v1/v2c/v3 Support |
| RMON | RMON 1,2,3,9 |
| System Time | Time Setting/Daylight saving |
| Common L2 Features | 802.1d Spanning tree |
| Loopback Detection | |
| Multicast Filtering | |
| IGMP Multicast Forwarding | |
| IGMP Snooping | |
| MLD Multicast Forwarding | |
| 802.1Q VLAN tagging | |
| 802.3x flow control | |
| 802.3ad Link Aggregation | |
| IPv4 DHCP Relay | |
| IPv4 DHCP Snooping | |
| IPv4 DHCP Snooping Source MAC Address Check-up | |
| ARP Inspection | |
| ARP Packet Validation (additional validation checks) | |
| Voice VLAN | |
| Port-based VLAN | |
| Protocol-Based VLAN | |
| CoS Mapping | |
| 802. 1X Radius Authentication Protocol | |
| IPv4 Settings | |
| IPv6 Settings | |
| IEEE 802. 3az Energy Efficient Ethernet (EEE) | |
| Command Line Interface (CLI) | |
| SSH Server | |
| Telnet Server | |
| TFTP Client | |
| Configuration Upgrade/Backup | |
| Simple Network Time Protocol (SNTP) | |
| SYSLOG |
| Environmental & Physical |
|---|
| Temperature Range | Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) | Operating: 5% - 95% |
| Package Contents | 1x Cloud Managed Gigabit Switch |
| 1x Quick Installation Guide | |
| 1x Power Cord | |
| 1x RJ45 Console Cable | |
| 1x Rack Mount Kit |
| Device Dimensions & Weights |
|---|
| Device | ECS1112FP |
| Weight | 4.4 lbs. (1.9 kg) |
| Width | 13” (330.20 mm) |
| Length | 9” (228.60 mm) |
| Height | 1.73” (43.94 mm) |
| Packaging | |
|---|---|
| Weight | 6.2 lbs. (2.81 kg) |
| Width | 15.4” (391 mm) |
| Length | 12.2” (310 mm) |
| Height | 4” (102 mm) |
| Warranty | 2 Year |
| Certifications | CE, FCC, IC |
