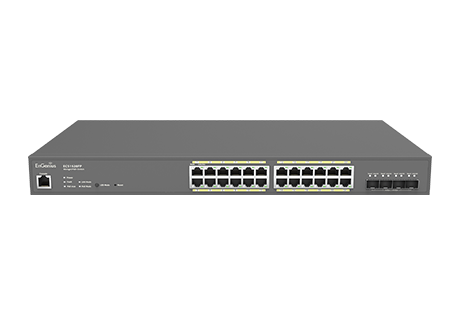

Cloud Switch ECS1528P, L2, 24 PoE ports 240Watt, 4 SFP+
Cloud Switch ECS1528P, L2, 24 PoE ports 240Watt, 4 SFP+
SKU:
ECS1528P
MPN:
ECS1528P
Lagerstatus:
5-10 dagar
> Datasheet <
Cloud Managed 240W PoE 24Port Network Switch
Layer 2 Managed 802.3af Compliant PoE Network Switch With Centralized Network Management
The ECS1528P Cloud Managed 2400W 24-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Power compatible PoE devices such as IP cameras, VoIP phones, and APs.
- Managed by EnGenius Cloud Platform
- (24) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
- (4) 1000/10 000 SFP+
- Desktop Model Supports Full-Featured Layer 2 Switching
- 802.3af/at Available On All Ports with a Total PoE Budget of 240W
Work Smart with EnGenius Cloud
Recensioner
Be the first to post a review for this product
| Port Standards | 802.3 10Base-T Ethernet, 802.3u 100Base-TX Ethernet,802.3ab ,10000Base-T Ethernet, 802.3x Full-Duplex Flow Control |
| Network Ports | (24)10/100/1000 Mbps Ports |
| SFP+ Ports | 4 x 10G |
| Performance | Switching Capacity: 128Gbps, Forwarding Mode Store-and-Forward |
| ,Flash Memory 128 MB, SDRAM 512MB, Packet Buffer Memory 2MB, Address Database Size 16k MAC Addresses | |
|---|---|
| PoE Capability | Ports 1-24 Supports IEEE 802.3at, PoE+ Capable Ports: All Gigabit Ethernet Ports |
| PoE Budget | 240W |
| Power Source | AC Input 100 ~ 240VAC 50-60Hz 1.2A, DC Output 54V/1.67A |
| LED Indicators | Device, Power LED, Fault LED, PoE Max LED, LAN Mode LED, PoE Mode LED Ports, Link/Activity/Speed (per Ethernet port), Link/Activity/Speed (per SFP slot) |
| Operating Temperature Range | 0 to 40° C |
| Storage Temperature Range | -20 to 70 ° C |
| Weight | 4,7kg |
| W x D x H | 260 x 440 x 44 |
| Package Contents | (1) ECS1528P Switch, (1) Power Cord, (1) RJ45 Console Cable, (1) Rack Mount Kit,(1) Quick Installation Guide |
