Product Highlights

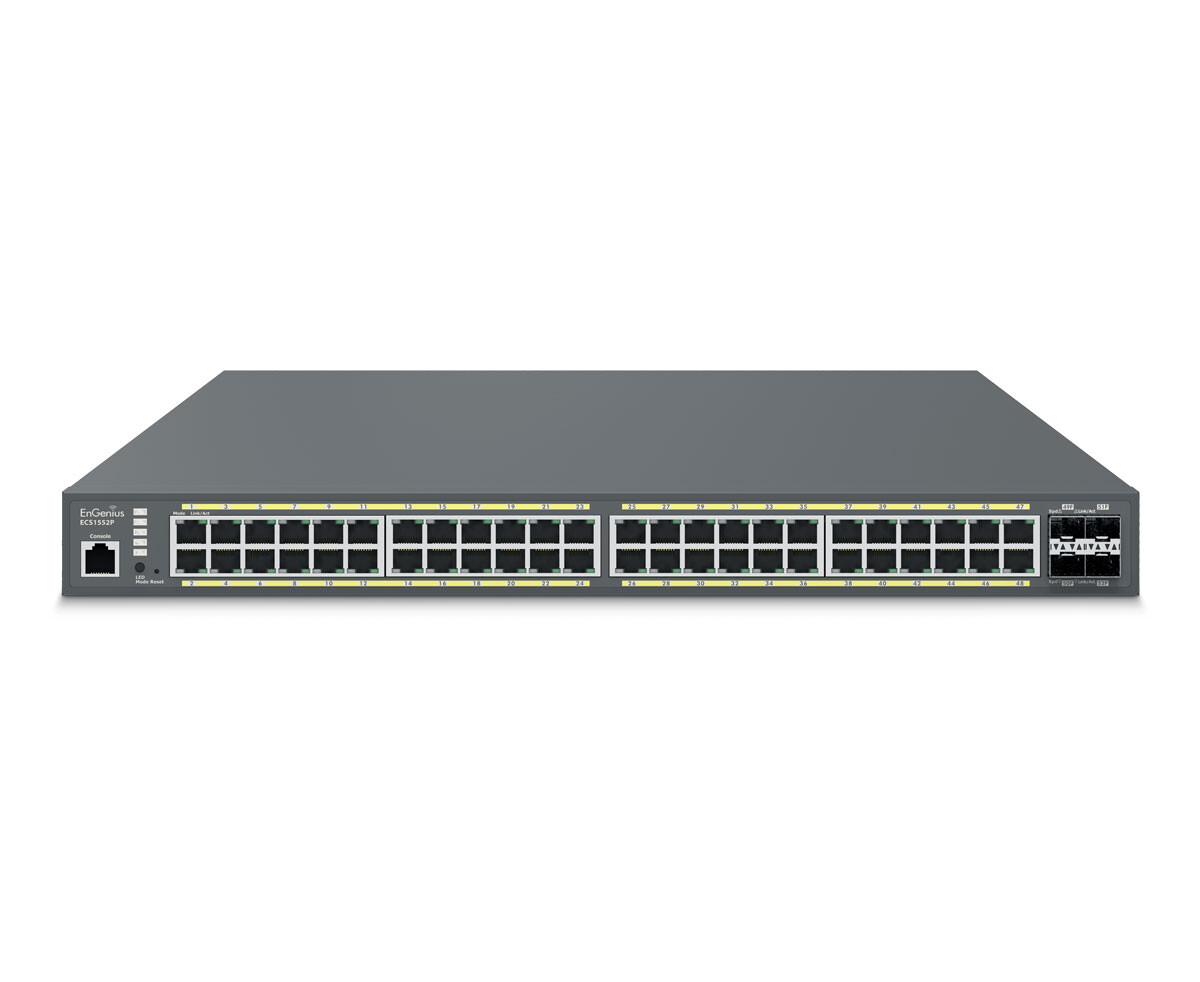

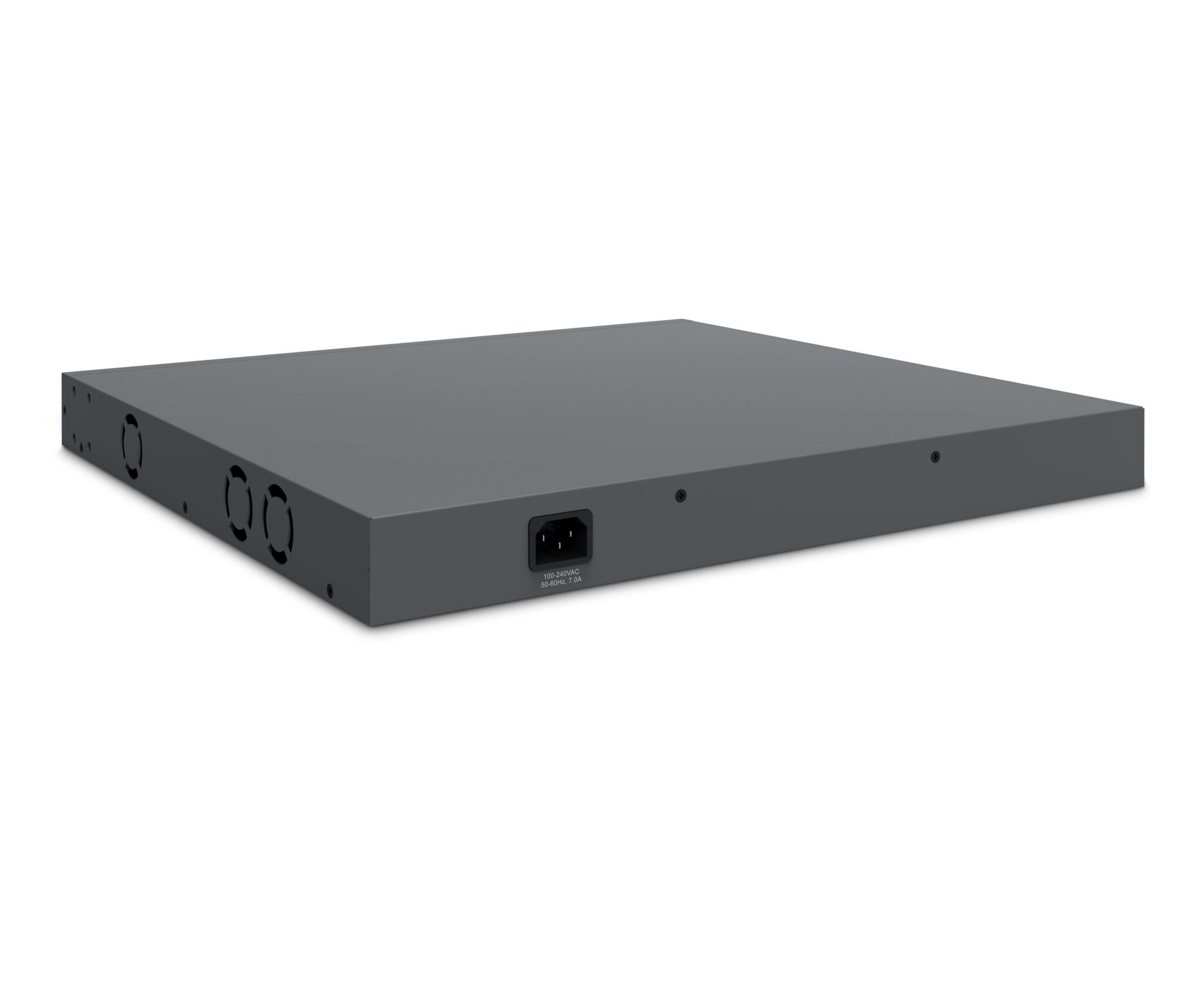

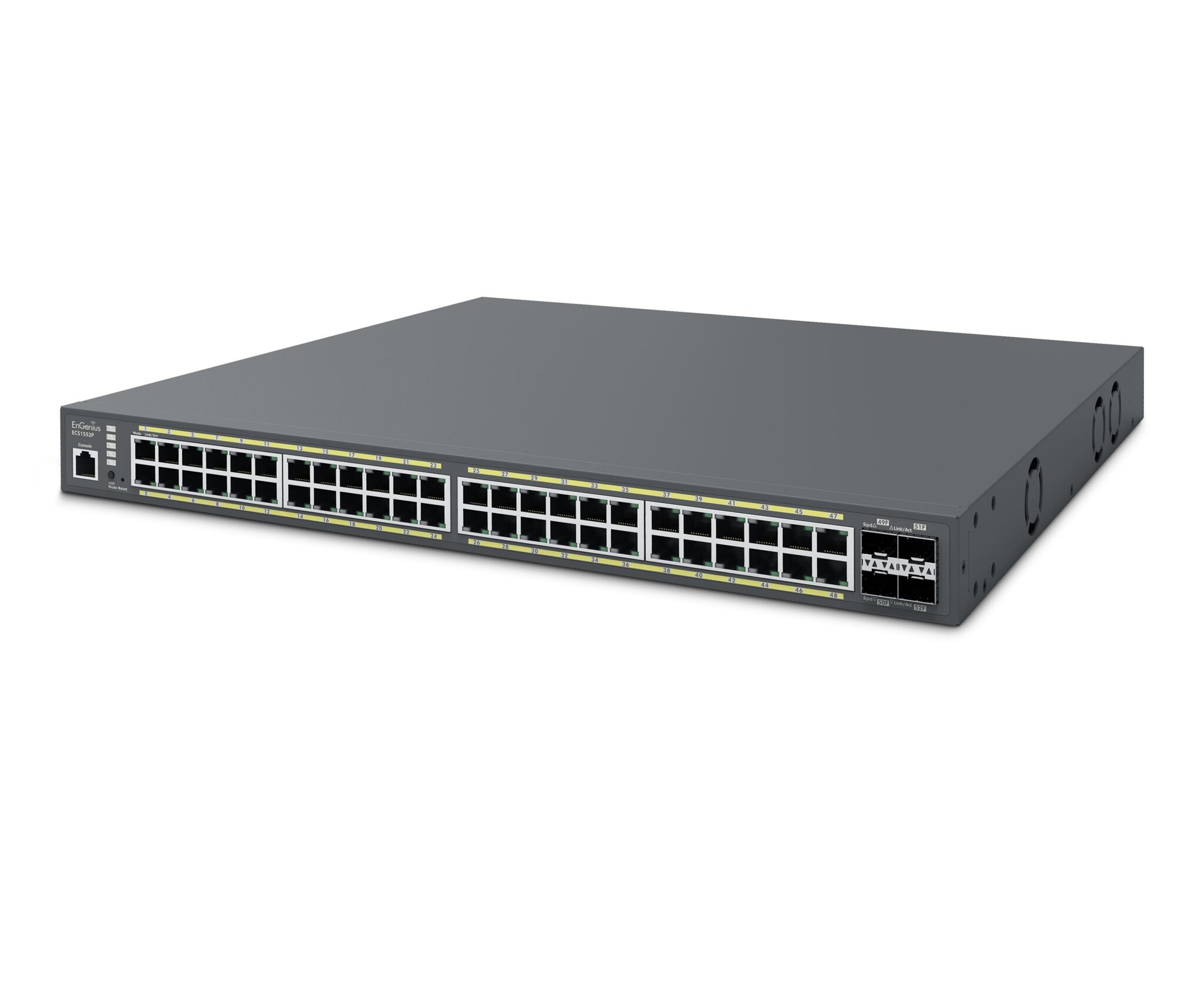

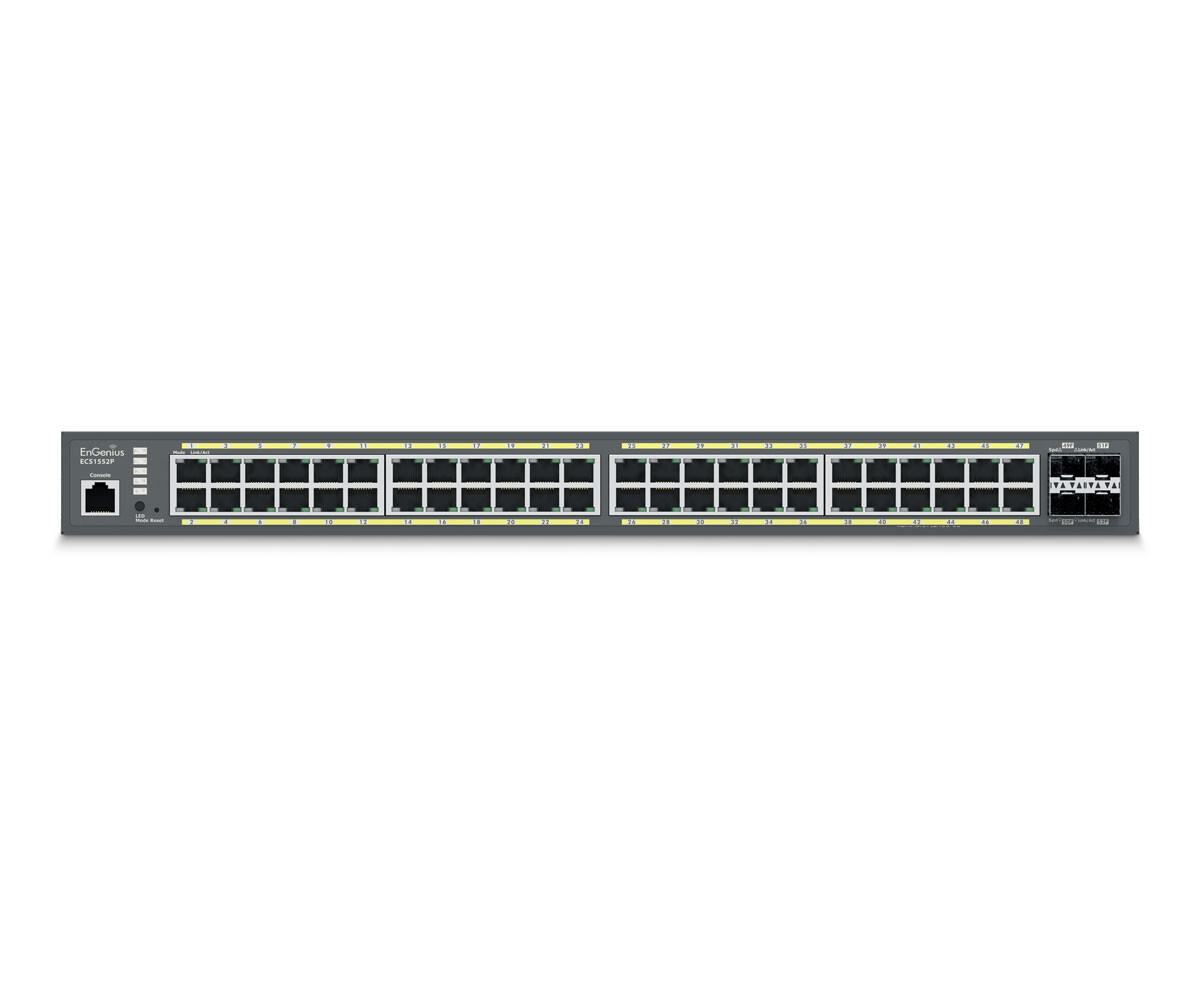

EnGenius Cloud ECS1552P is a 48-Port Gigabit PoE+ Layer 2+ Switch with a 410W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.
- 48 10/100/1000 Base-T GbE Ports
- Full-Featured Layer 2+ Switching
- 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
- 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
- PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
- PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
- Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades
- Quick-Scan Device Register, Remote Monitoring and Troubleshooting
- Hybrid Switch Supports Multiple Management Options
Recensioner
Be the first to post a review for this product
| Port Standards |
802.3 10Base-T Ethernet |
|
802.3u 100Base-TX Ethernet |
|
802.3ab 1000Base-T Ethernet |
|
802.3x Full-Duplex Flow Control |
| Network Ports |
48 10/100/1000 Mbps Ports + 4x SFP+ Ports |
| Switching Capacity |
176Gbps |
| Power Source |
100 ~ 240VAC, 50-60Hz |
| Physical Interface LED Indicators |
Power LED |
|
Fault LED |
|
PoE Max LED |
|
LAN Mode LED |
|
PoE Mode LED |
| Ports |
Link/Activity/Speed (per Ethernet port) |
| Software Features (L3 Features) |
| Multiple IP Interface |
20 IPv6 address |
| ARP Table |
Max. 192 ARP entries |
| Static ARP |
Static 192 ARP entries |
| IPv4 Static Route |
Max. 63 entries |
| IPv6 Static Route |
Max. 21 entries |
| Software Features (L2 Features) |
| Multicast Group |
Max 256 groups |
| MLD Snooping |
MLD Snooping: v1 |
| QoS-Number of Priority Queues Supported |
Queue 8 |
| Trust Mode |
Cos/802.1p |
|
DSCP |
|
CoS/802.1p-DSCP |
| Scheduling Mechanism |
Strict / WRR/ Strict + WRR |
| Bandwidth Control |
Port-based bandwidth control (Ingress/Egress) |
| Port Security |
Max. 256 Entries |
| Access Control List (ACL) |
MAC Based ACL |
|
IPv4/IPv6 Based ACL |
|
ACL Binding |
|
Time base ACL |
| Web Graphical User Interface(GUI) |
HTTP IPv4 / IPv6 |
|
HTTPS IPv4 / IPv6 |
| SSL Certificate |
Certificate/Key Import |
| SNMP |
SNMP v1/v2c/v3 Support |
| System Time |
Time Setting/Daylight saving |
| Common L2 Features |
802.1d Spanning tree |
|
Loopback Detection |
|
Multicast Filtering |
|
IGMP Multicast Forwarding |
|
IGMP Snooping |
|
MLD Multicast Forwarding |
|
802.1Q VLAN tagging |
|
802.3x flow control |
|
802.3ad Link Aggregation |
|
IPv4 DHCP Relay |
|
IPv4 DHCP Snooping |
|
IPv4 DHCP Snooping Source MAC Address Check-up |
|
ARP Inspection |
|
ARP Packet Validation (additional validation checks) |
|
Voice VLAN |
|
Port-based VLAN |
|
Protocol-Based VLAN |
|
CoS Mapping |
|
802. 1X Radius Authentication Protocol |
|
IPv4 Settings |
|
IPv6 Settings |
|
IEEE 802. 3az Energy Efficient Ethernet (EEE) |
|
Command Line Interface (CLI) |
|
SSH Server |
|
Telnet Server |
|
TFTP Client |
|
Configuration Upgrade/Backup |
|
Simple Network Time Protocol (SNTP) |
|
SYSLOG |
|
802.1d Spanning tree |
| Temperature Range |
Operating: 32°F to 122°F (0°C to 50°C) |
| Humidity (Non-Condensing) |
Operating: 5% - 95% |
| Package Contents |
1x Cloud Managed Gigabit Switch |
|
1x Quick Installation Guide |
|
1x Power Cord |
|
1x RJ45 Console Cable |
|
1x Rack Mount Kit |
| Device Dimensions & Weights |
| Device |
ECS1552P |
| Weight |
13.66 Ibs. (6.2 kg) |
| Width |
17.32” (440 mm) |
| Length |
10.23” (260 mm) |
| Height |
1.73” (44 mm) |
| Packaging |
|
| Weight |
16.84 lbs. (7.64 kg) |
| Width |
20.82” (529 mm) |
| Length |
21.57” (548 mm) |
| Height |
4.13” (105 mm) |
| Certifications |
CE, FCC, IC |
