Plasma Cloud PS24-L Network Switch - 250W PoE

The PS24-L rack mount switch is an entry-level solution for small to medium size offices needing to power a considerable amount of PoE devices. With its 24x 1 Gigabit Ethernet ports and a PoE budget of 250 W, it can power up to 16x 802.3af devices

SKU: PS24-L
MPN: PS24-L
Lagerstatus: 3 st
Leveransstatus: I lager
5 850 kr
Exklusive moms: 1 462,50 kr
st

PS24-L PoE Switch

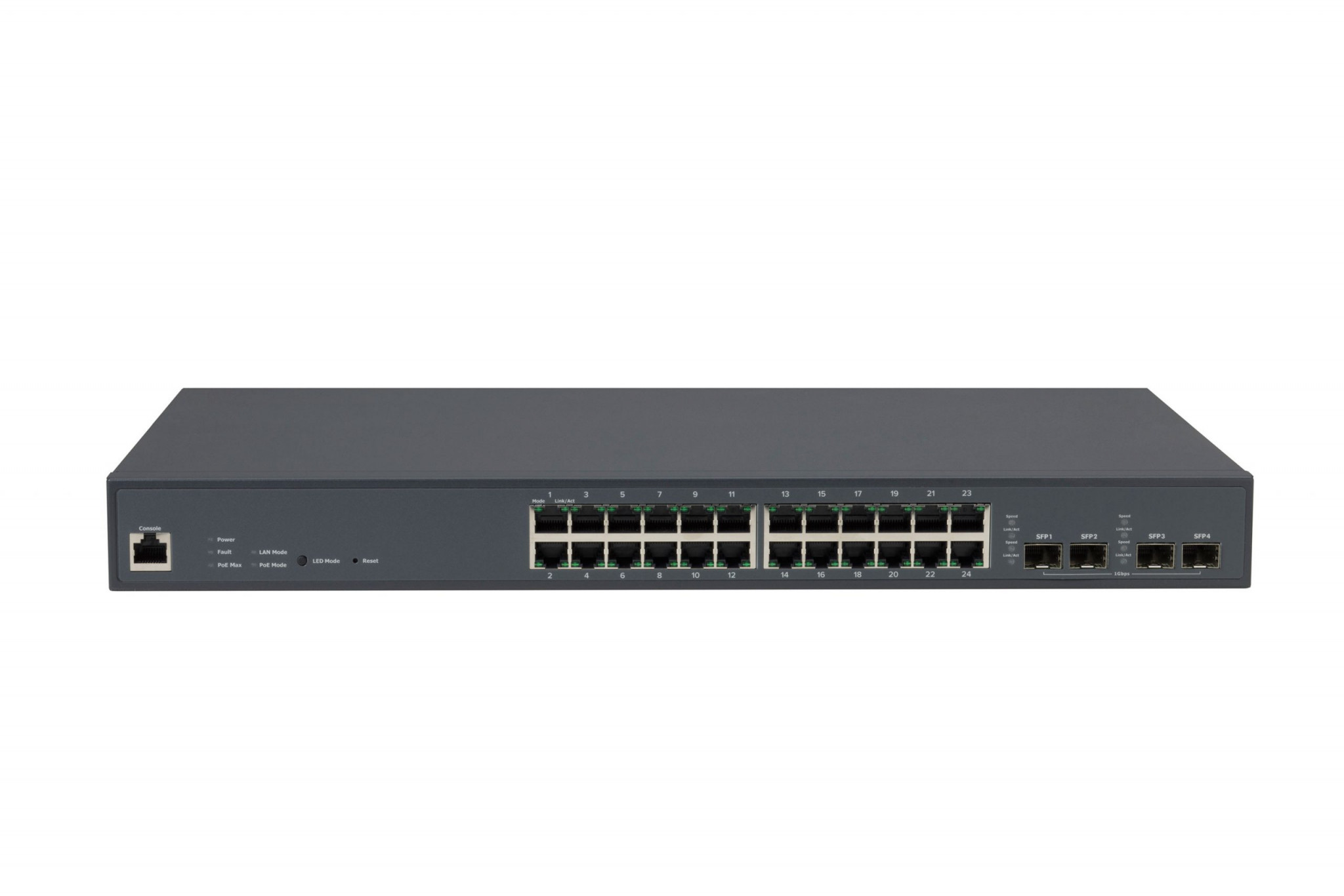

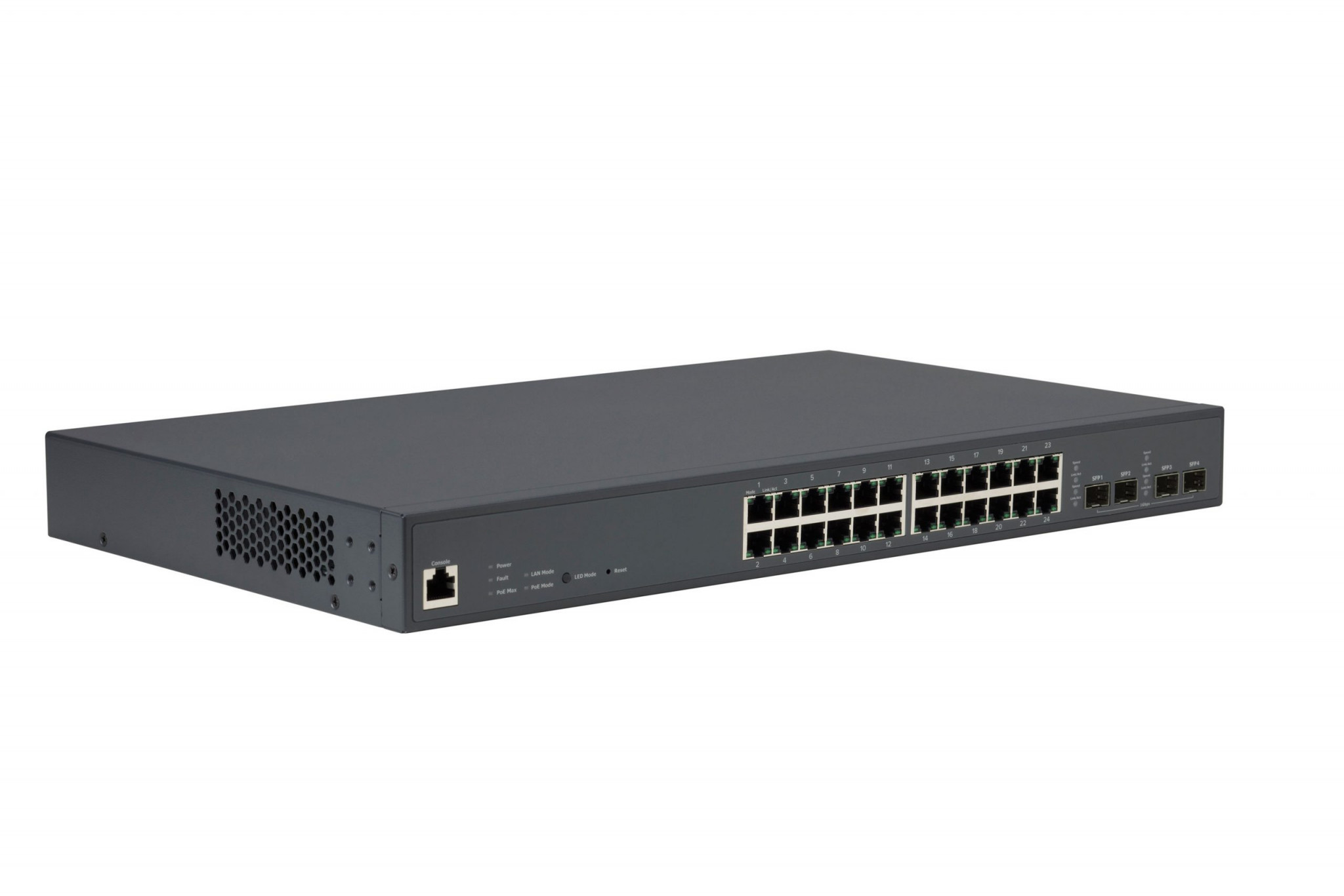

The PS24-L rack mount switch is an entry-level solution for small to medium size offices needing to power a considerable amount of PoE devices. With its 24x 1 Gigabit Ethernet ports and a PoE budget of 250 W, it can comfortably power up to 16x 802.3af devices or 8x 802.3at devices at the same time. 4x SFP transceiver slots provide 1 Gbps connectivity per slot to the optical fiber network. The backplane switching capacity of 56 Gbps allows to max out the Gigabit throughput on all Ethernet & SFP ports without hitting any bottleneck.





How many devices can be powered ?

Plasma Cloud switches support 802.3af and 802.3at PoE standards. Each port comes with the capability to detect the PoE standard required by the connected device. Therefore, a mix of 802.3af and 802.3at power consumers can be powered.

The amount of power supplied on each PoE port may vary greatly depending on power consumption of the connected device. To give an example: although the PA300 uses 802.3af PoE standard, its actual power consumption is 11.5 W or less (depending on system load and cable length). Consequently, a PS24-L allows to power up to 21x PA300 despite the PoE standard defining a power consumption of 15.4 W.

When the exact power consumption is not available, refer to the PoE standard (802.3af: 15.4 W, 802.3at: 30 W) to estimate the number of devices that can be powered through this PoE switch

PoE Budget

Mounting Options

Mounting Options

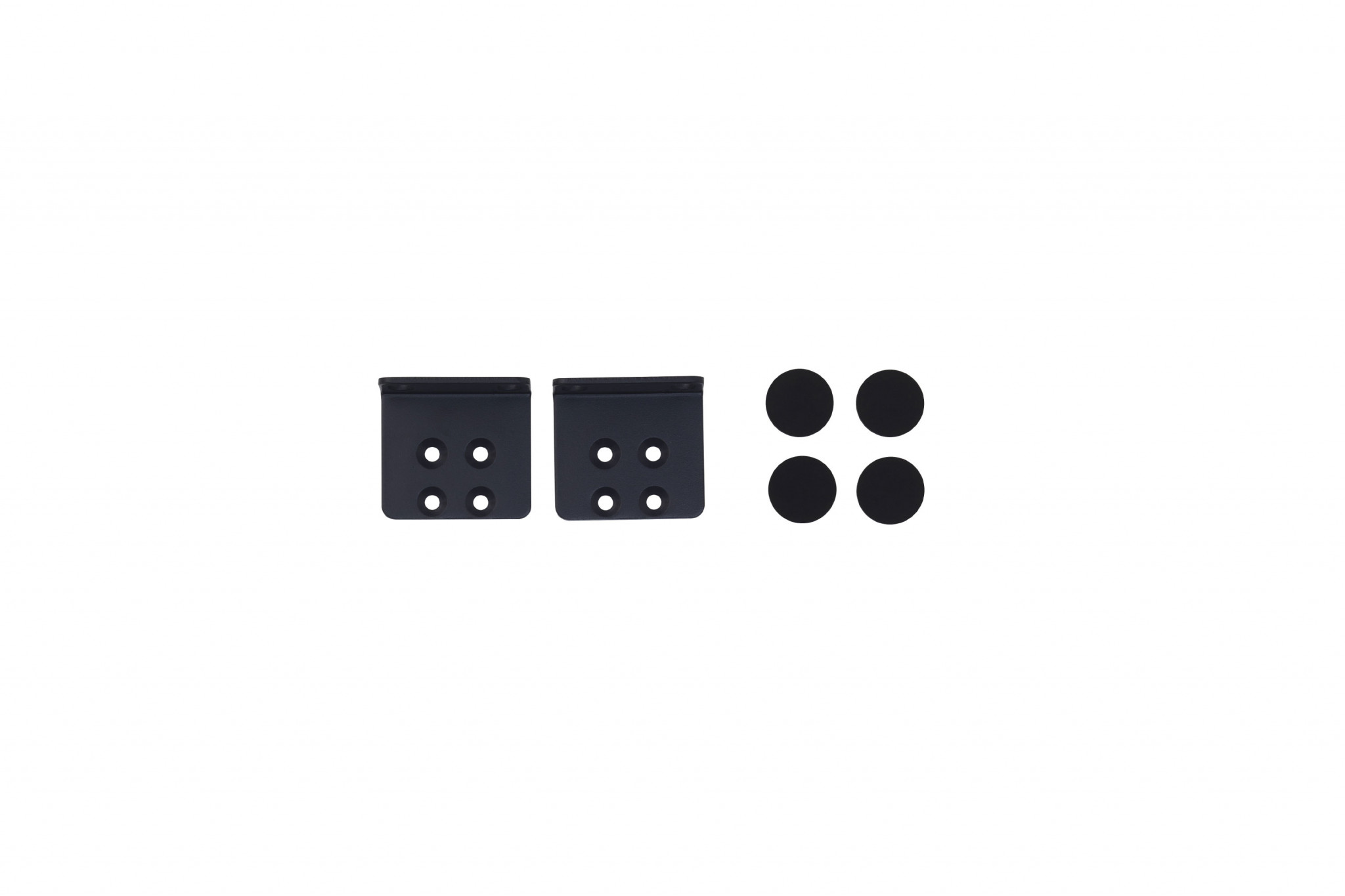

The included mounting brackets offer to mount the PS24-L onto a rack or wall. It also can be positioned on a desk or shelf.

Why Power over Ethernet

Power over Ethernet (PoE) allows you to combine data transfer and power supply using a single Ethernet cable which terminates in a PoE switch. Thereby, cabling effort can be reduced and power management of all connected devices greatly simplified. Combined with the powerful Plasma Cloud console, all connected devices can be centrally managed, power consumption monitored, power schedules automated and even non-Plasma Cloud devices power cycled when needed.



Almost all networking equipment today supports PoE, including WiFi Access Points, IP cameras, VoIP phones, and many more IoT devices. This allows for easy installation since PoE enables you to place devices in locations removed from power outlets (up to 100m Ethernet cable length).

PoE Icon

Recensioner

Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
10 / 100 / 1000 Mbps Ports 24
Fiber Slots 4 (SFP)
Console Ports 1
Memory 256 MB
PoE Budget 250 W
PoE Standard IEEE 802.3af/at
Switching Capacity 56 Gbps
Fan 2
Mounting Options Desktop, Wall mount, Rack mount
Power Input 100-240 VAC, 50/60 Hz
Power Supply Internal, 300 W
Dimension (W x D x H) 440 x 260 x 44 mm
Operating Temperature 0°C ~ 50°C
Certifications FCC, IC, CE, RCM
