Plasma Cloud PAX1800v2 WiFi6 Access Point
Plasma Cloud’s WiFi 6 universal solution for almost any setup. With dual band & dual stream 802.11ax WiFi in a compact weather resistant housing the PAX1800 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension.
SKU:
PAX1800V2
MPN:
PAX1800V2
Lagerstatus:
20 st
Leveransstatus:
I lager
Note: This latest version of the PAX1800, the v2 model, supports meshing when running the 4.x firmware.
|
PAX1800Plasma Cloud’s WiFi6 universal solution for almost any setup. With dual band & dual stream 802.11ax WiFi in a compact weather resistant housing the PAX1800 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension. It shines in high density and high throughput demand scenarios as well, such as in schools, universities, airports and shopping malls. |
|
POWER OVER ETHERNET (POE)Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply. |
|
|
|

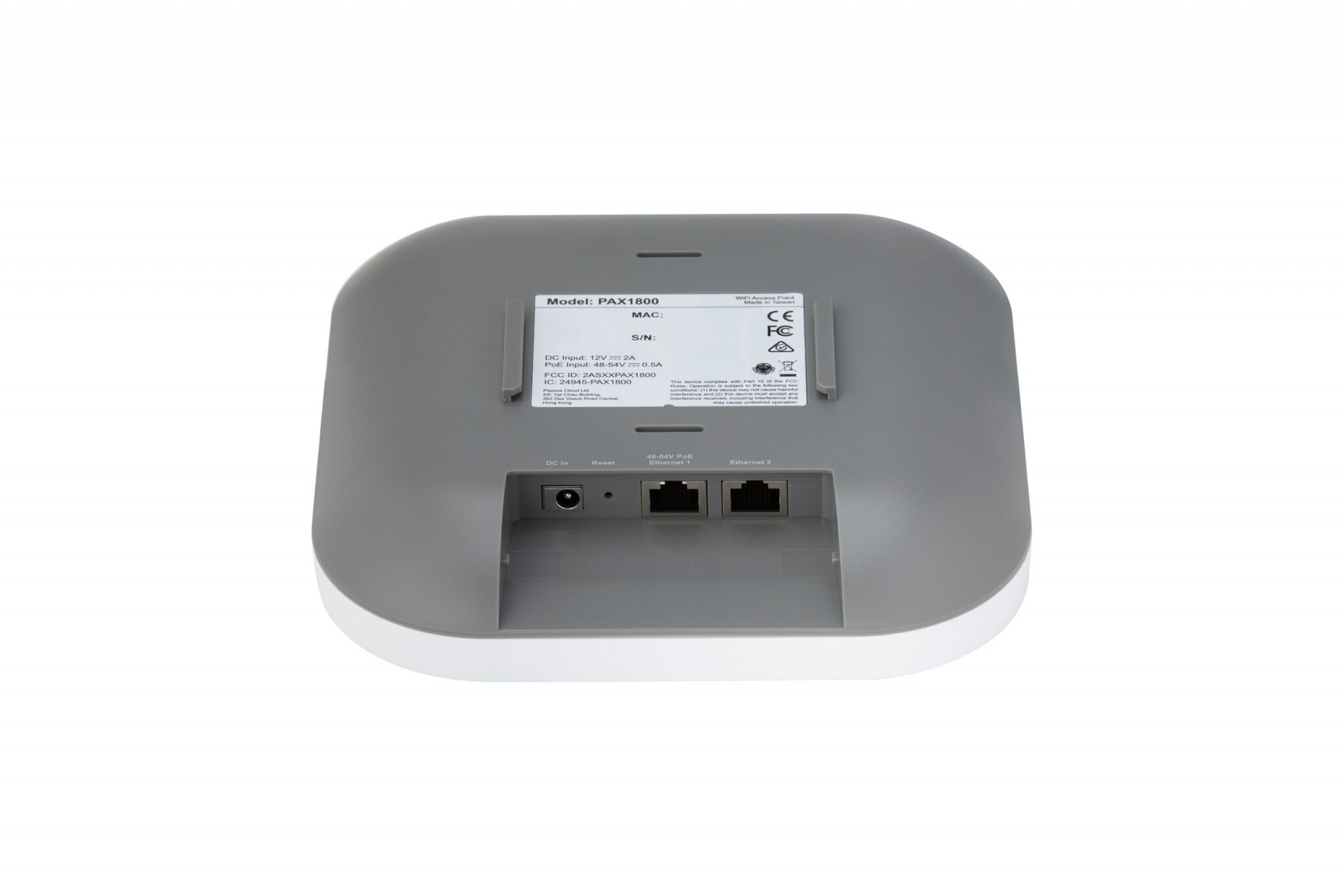

ETHERNET PORTSThe 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access. |
|

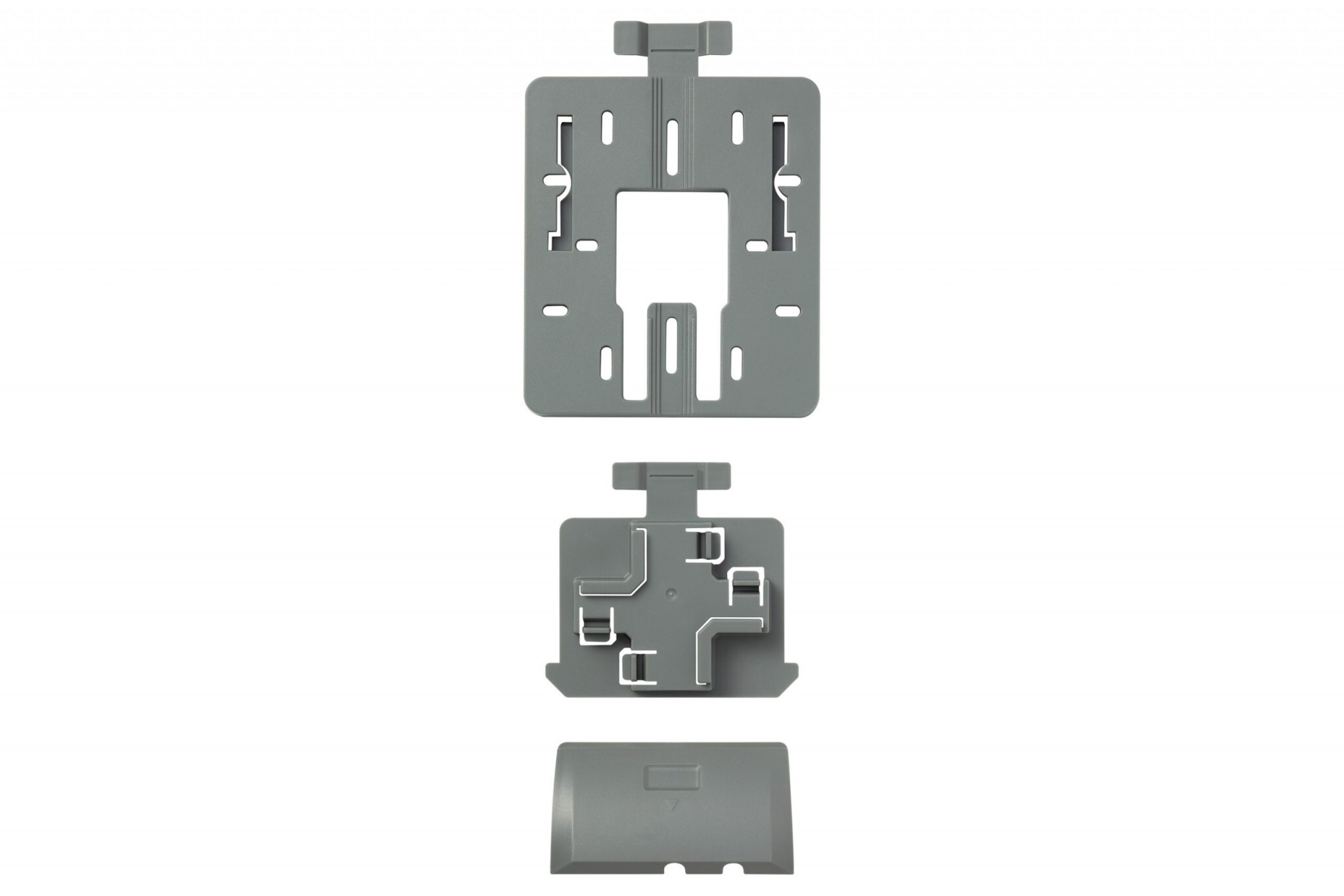

MOUNTING OPTIONSRegardless of where you want to install the access points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options have got you covered for every scenario. |
|
|
Recensioner
Be the first to post a review for this product
| RADIO CHAINS/STREAMS | 2.4 GHz=2x2, 5 GHz=2x2 |
| ANTENNAS | 2.4 GHz = 5.0 dBi 5 GHz = 5.0 dBi |
| DATA RATES | 537 Mbps + 1201 Mbps |
| 2.4 GHZ | 2 stream, 802.11 b/g/n (max rate= 573 Mbps) MU-MIMO/OFDMA |
| 5 GHZ | 2 stream, 802.11 a//n/ac/ax (max rate= 1201 Mbps) MU-MIMO/OFDMA |
| CPU | Qualcomm Cypress IPQ6000 |
| MEMORY | 512 MB DRAM DDR3 , 64 MB NOR Flash |
| Max Recommended Clients | 100 - 110 per AP |
| PHYSICAL INTERFACE | 2x 1000Mbps Ethernet Ports |
| POE | 802.3at |
| DC JACK | 12-24V / 1A |
| Power Consumption | Min 5W (PoE), 3.5W (DC) , Max 13W |
| INDOOR/OUTDOOR RATING | CE Marked for indoor/outdoor use, IP55 |
| DIMENSION (W X D X H) | 180 x 180 x 37 mm |
| WEIGHT | 500g |
| OPERATING TEMPERATURE | 0°C ~ 40°C (32°F ~ 104°F) |
| WARRANTY | 1 year |
| Certifications | CE, FCC, IC, RCM |
| Zero Config Plug-n-Play | Yes |
| Wireless Mesh | Yes |
| Free Cloud Console | Yes |
| Free Mobile App | Yes |
