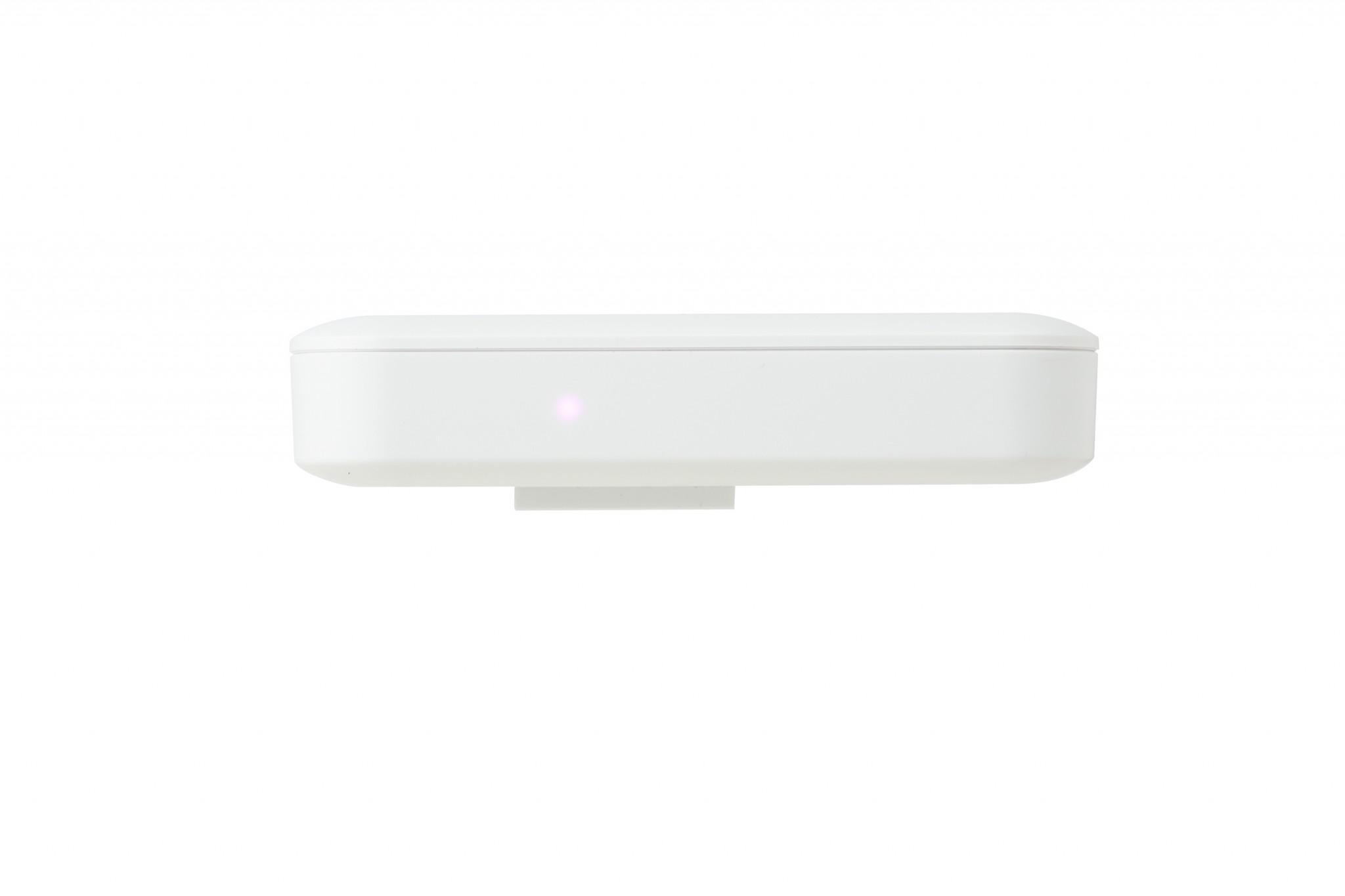

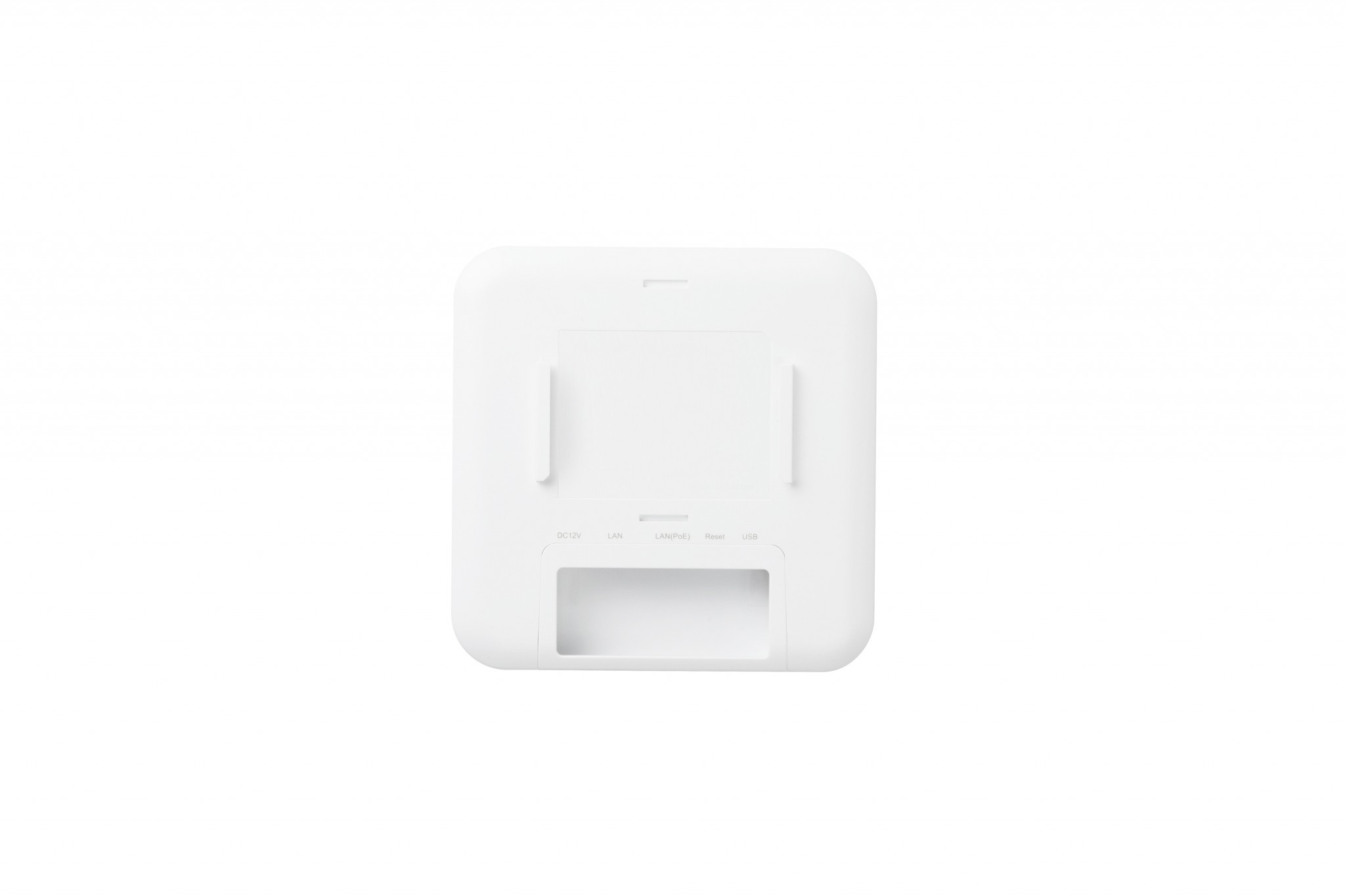

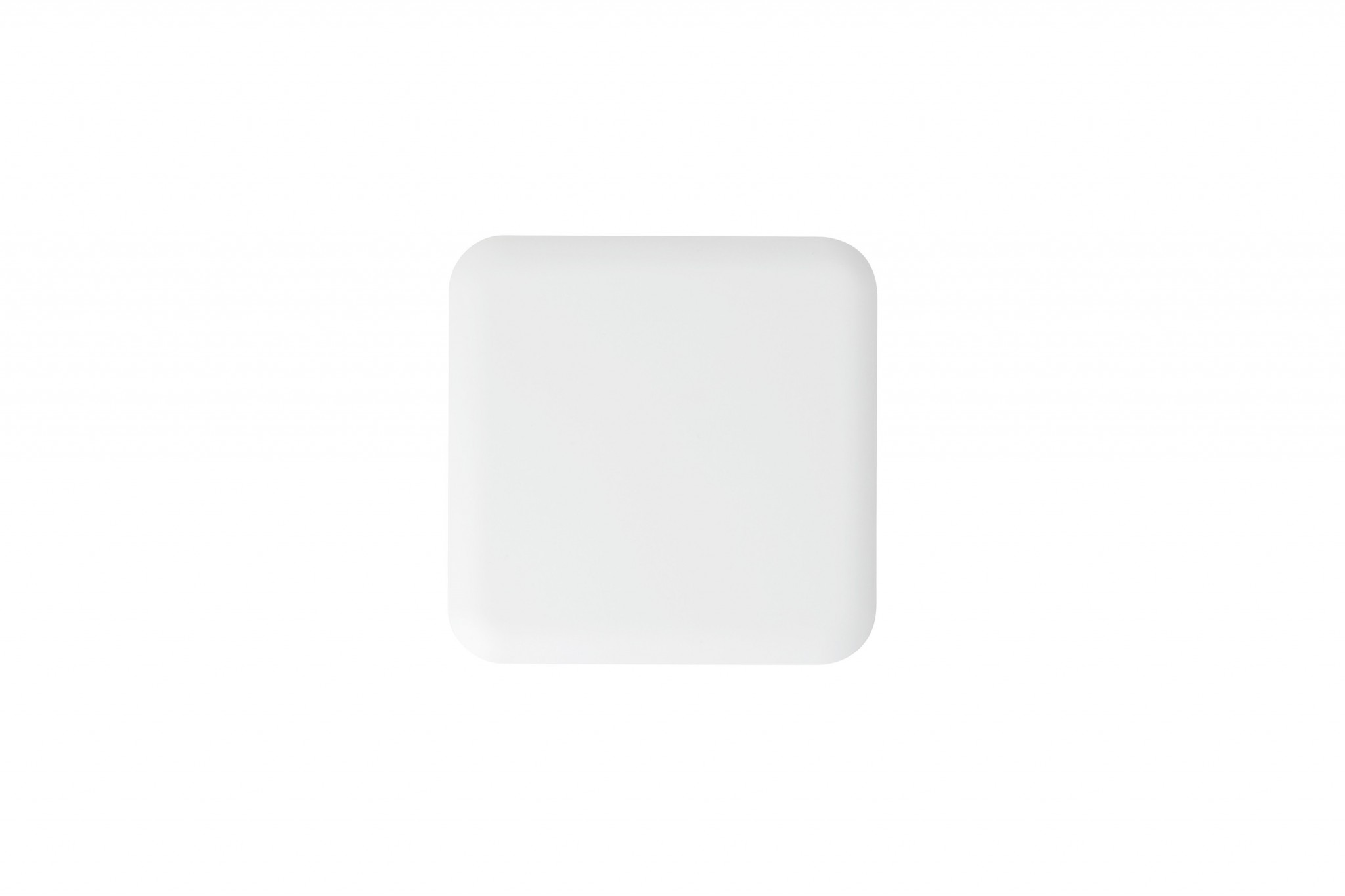

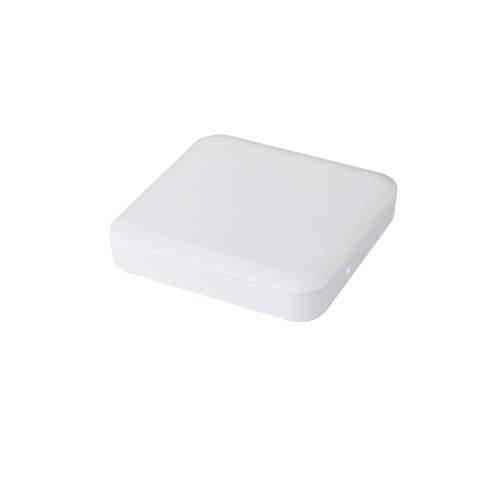

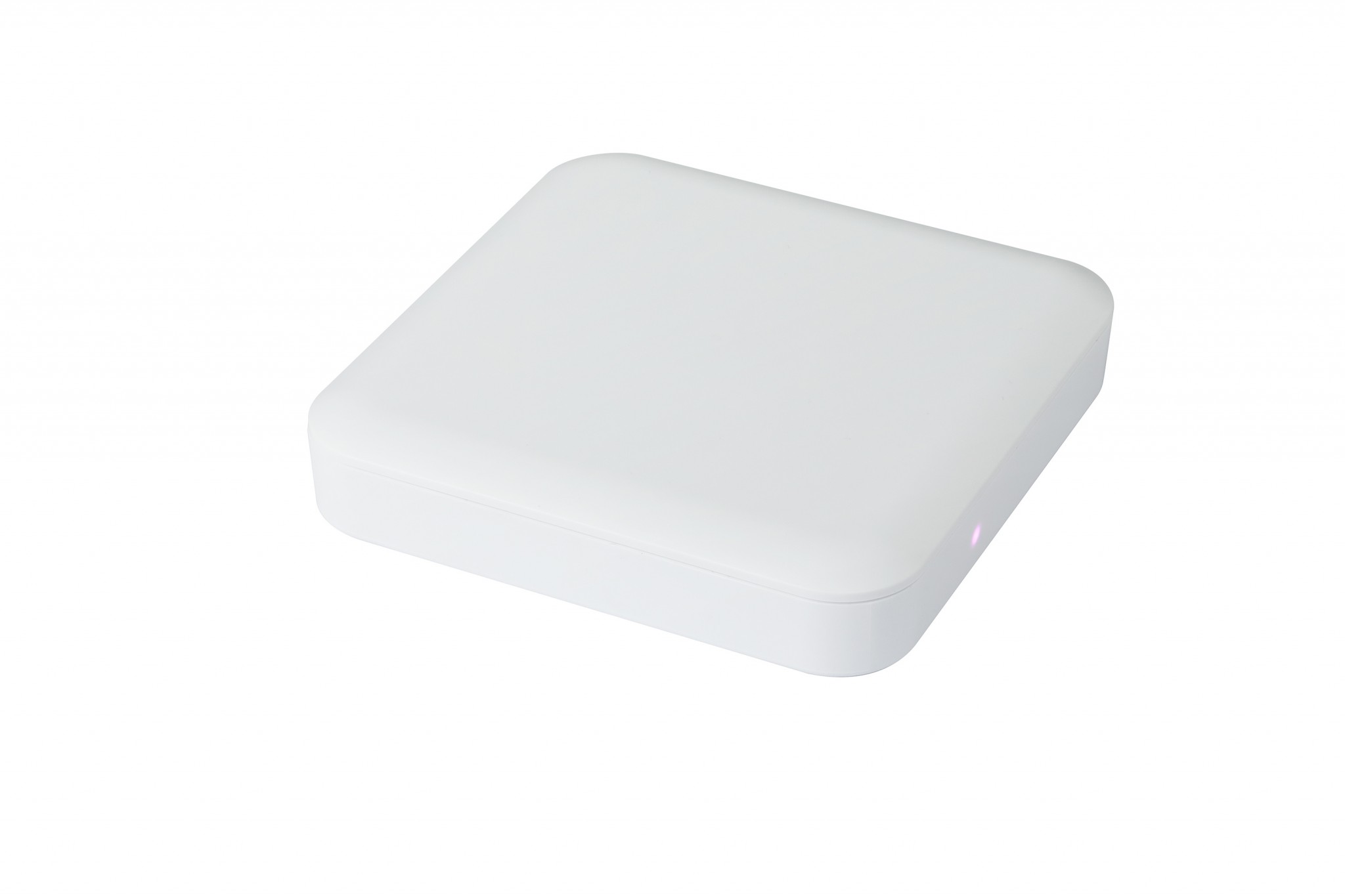

Plasma Cloud PA1200 Access Point

Plasma Cloud’s universal solution for almost any setup. With dual band & dual stream 802.11ac WiFi in a compact weather resistant housing the PA1200 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension.

1,900 kr
Excluding Tax
SKU: PA1200
MPN: PA1200
Stock Status: 3-5 days

pcs

PA1200

Plasma Cloud’s universal solution for almost any setup. With dual band & dual stream 802.11ac WiFi in a compact weather resistant housing the PA1200 may serve as office or hotel WiFi backbone, coffee shop hotspot and outdoor WiFi extension.

POWER OVER ETHERNET (POE)

Power over Ethernet (PoE) allows to supply a device with power and data over a single Ethernet cable connection. This reduces installation cost and effort for locations without available power lines. Furthermore, when connected to a Plasma Cloud PoE switch, PoE allows to centrally manage & monitor the power supply.

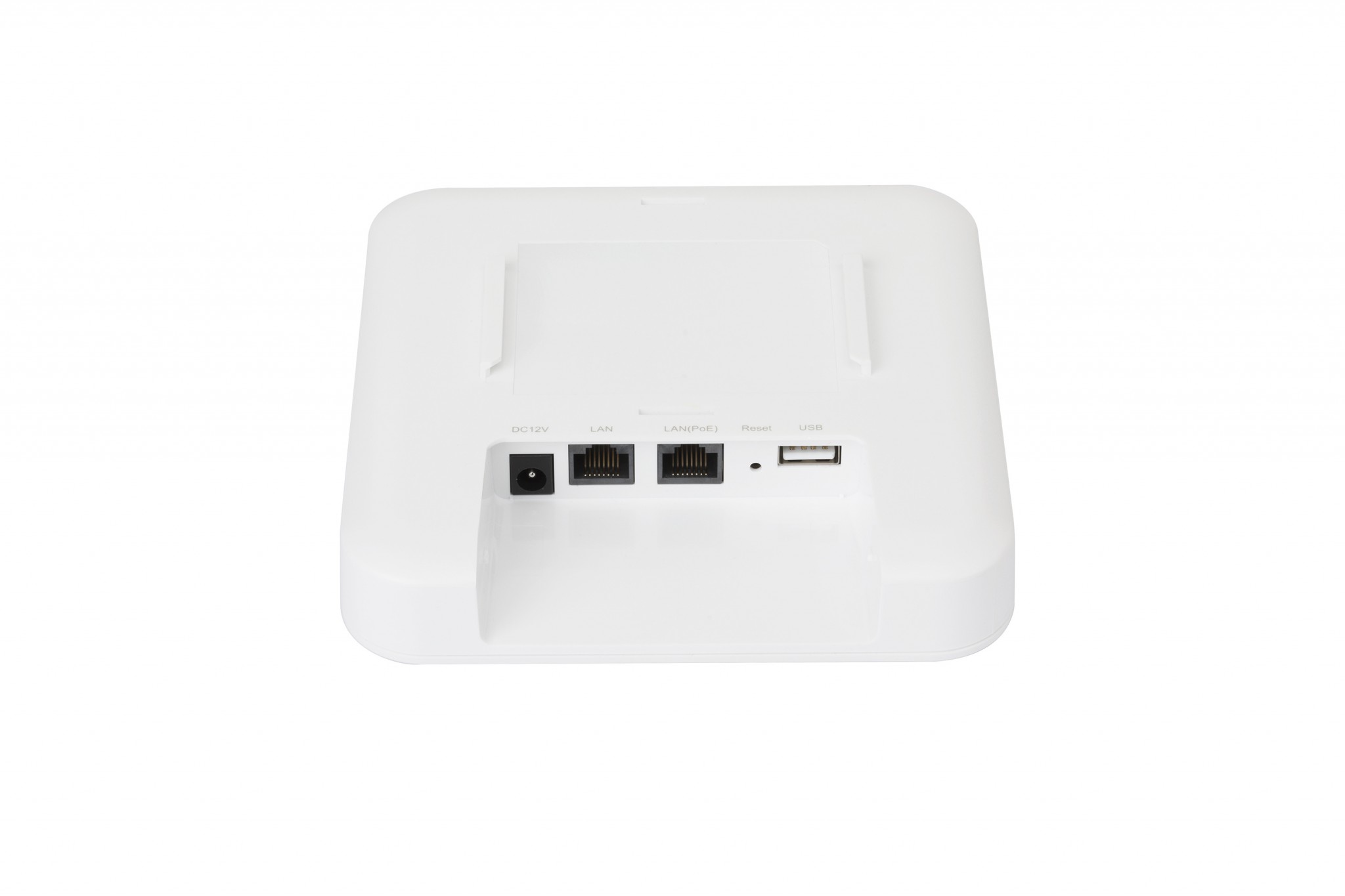

ETHERNET PORTS

The 2 provided Ethernet ports allow for maximum flexibility: one port can be used as wired uplink while the other port serves as LAN access for other wired devices. Each Ethernet port comes with a smart uplink detection to automatically determine whether a port should be an uplink or provide LAN access.

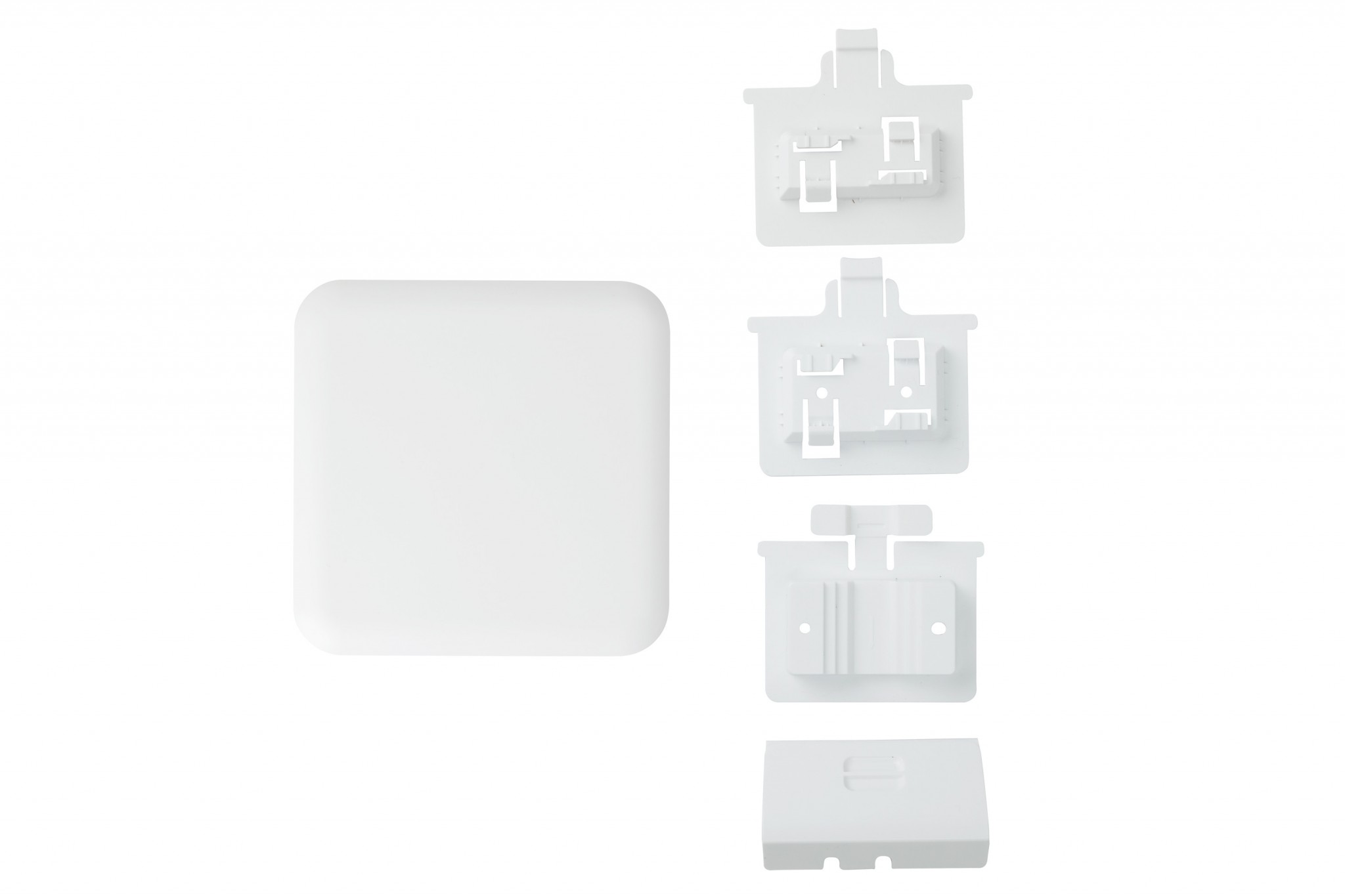

MOUNTING OPTIONS

Regardless of where you want to install the access points – on a wall, ceiling grid, pole, outdoors – the installer kit included with every Access Point facilitates the installation. Easily pluggable mounting options have got you covered for every scenario.

Datasheet - PA1200 Access Point
Quick Start Guide - PA1200 Access Point

RADIO CHAINS/STREAMS: 2.4 GHz=2x2, 5 GHz=2x2
ANTENNAS: 2.4 GHz = 3.0 dBi 5 GHz = 5.0 dBi
DATA RATES: 300 Mbps + 867 Mbps
2.4 GHZ: 2 stream, 802.11 b/g/n (max rate= 300 Mbps)
5 GHZ: 2 stream, 802.11 a/b/g/n/ac (max rate= 867 Mbps) Wave 2, MU-MIMO
CPU: Qualcomm Dakota IPQ4018
MEMORY: 256 MB DRAM DDR3
PHYSICAL INTERFACE: 2x 1000Mbps Ethernet Ports 1x USB
POE: 802.3af / 802.3at
DC JACK: 12-24V / 1A
INDOOR/OUTDOOR RATING: CE Marked for indoor/outdoor use, IP55
DIMENSION (W X D X H): 142 x 142 x 35 mm
WEIGHT: 500g
OPERATING TEMPERATURE: 0°C ~ 40°C (32°F ~ 104°F)
WARRANTY: 1 year
