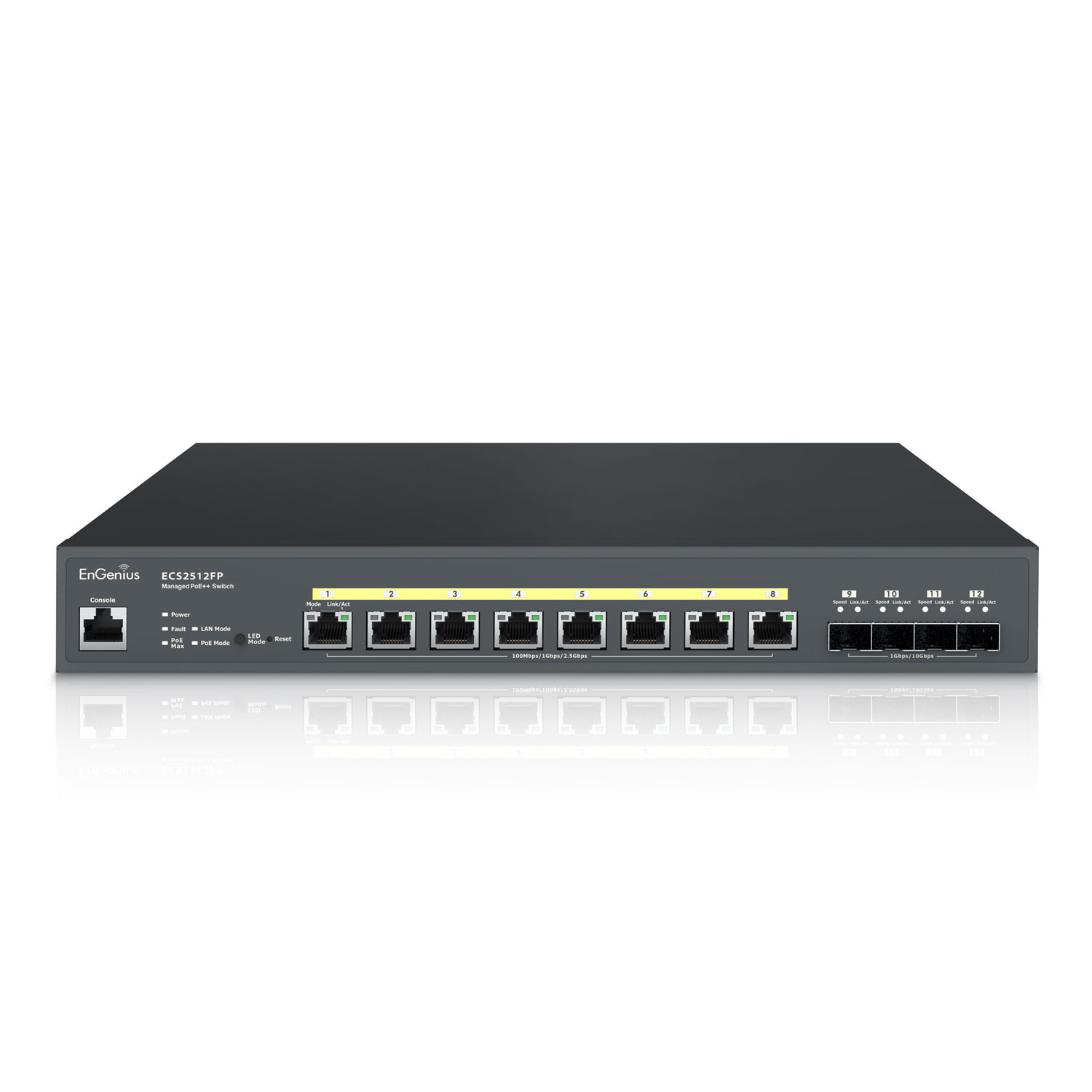

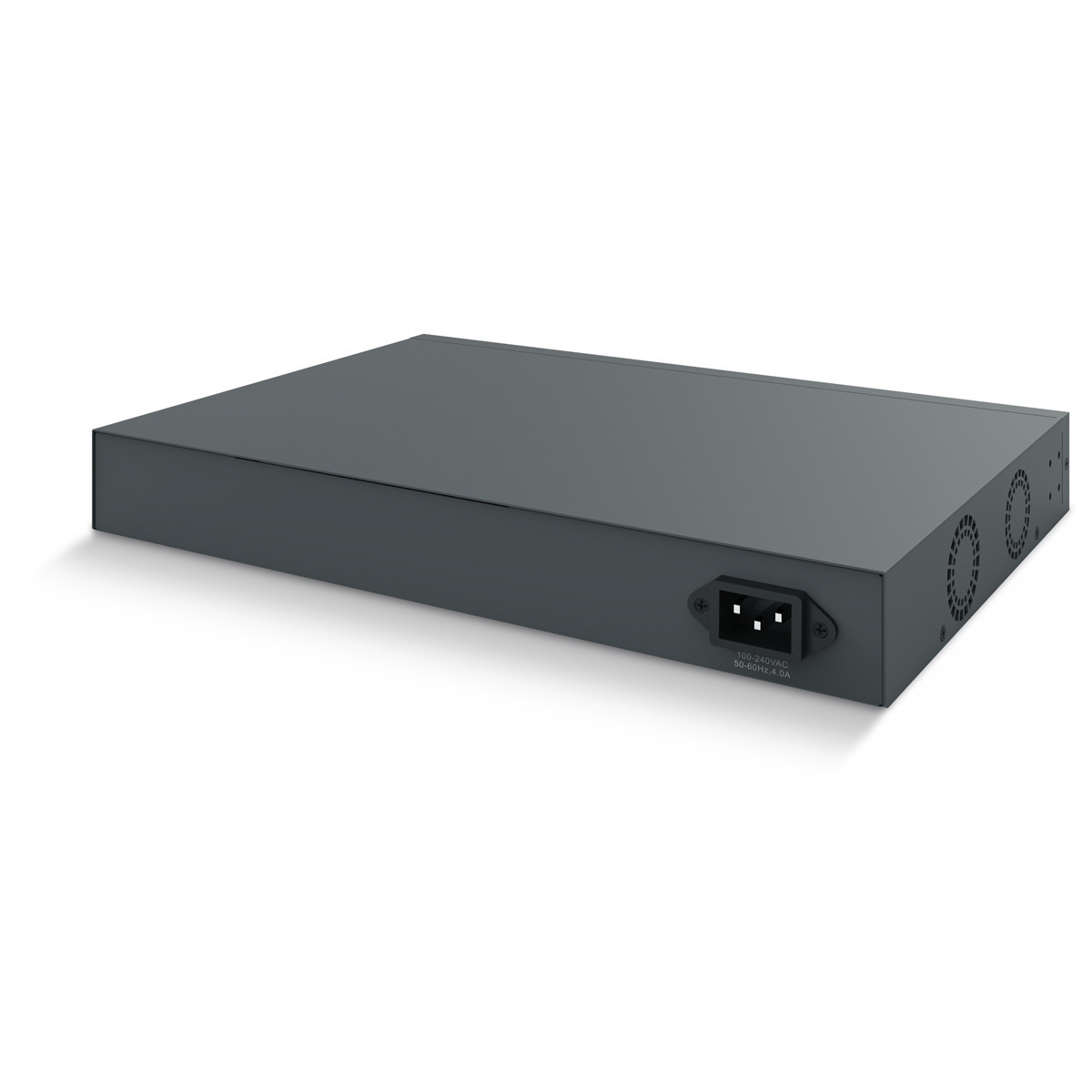

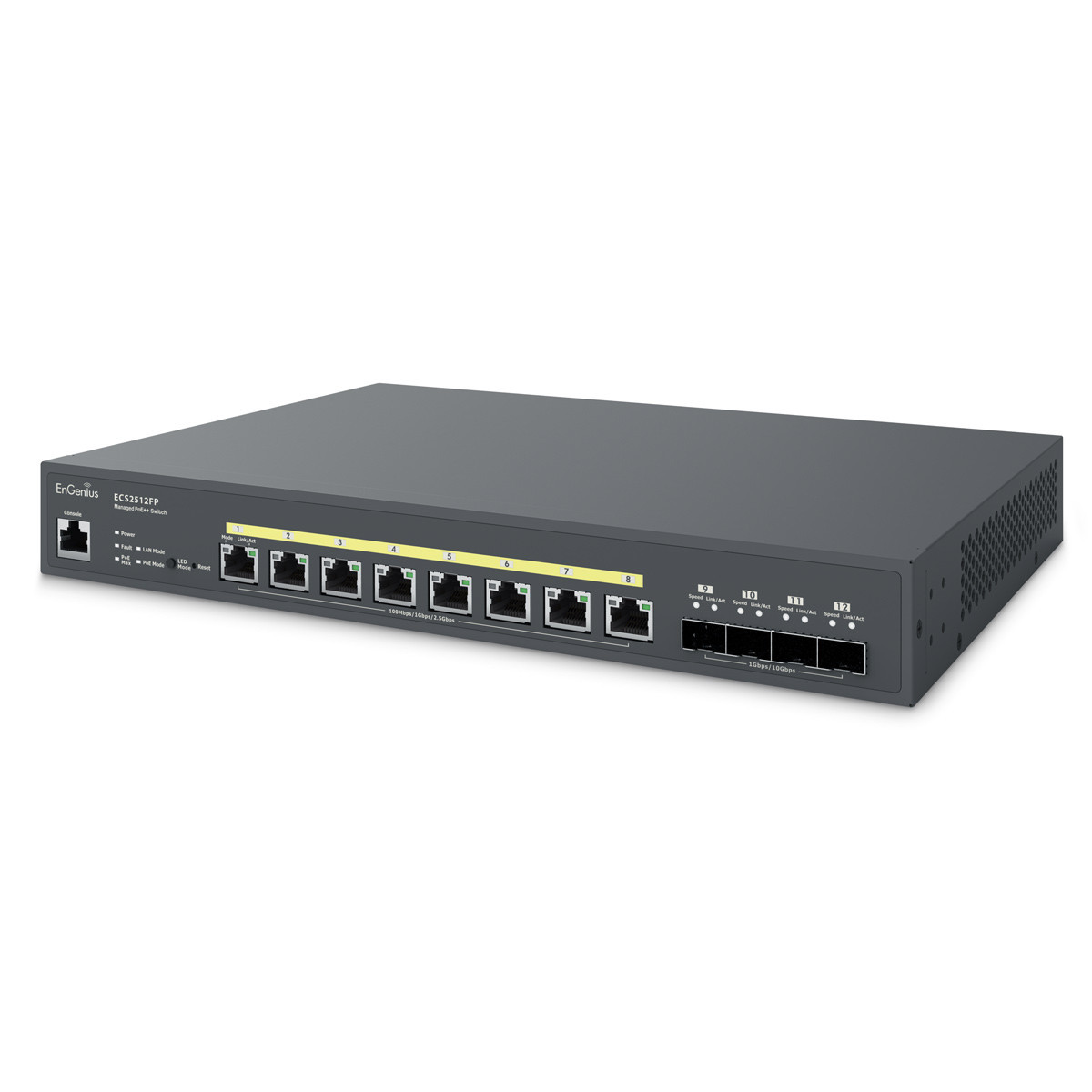

ECS5512FP Cloud-enabled switch ECS5512FP 8-port, 2.5G, L2+

Layer 2+ Switch Comes With a 420W Power Budget and 4 10Gig Uplink Ports. 8 x 100/1000/2500/5000/10000 Base-T GbE ports

SKU: ECS5512FP
MPN: ECS5512FP
Lagerstatus: 5-10 dagar
Recommended Price: 14 657 kr
14 657 kr 14 550 kr
Exklusive moms: 3 637,50 kr
st

> datasheet <

Product Highlights

The EnGenius Cloud ECS5512FP is an 8-port, 10G per port, PoE++ layer 2+ switch that comes with a 420W power budget and 4 10G uplink ports, ensuring peak network efficiency and performance for successful large businesses. Choose Cloud or on-premises management based on your network architecture, administrative permissions, technical aptitude, and budget.

  • Full-featured layer 2+ switching

  • 8 100/1000/2500/5000/10000 Base-T GbE ports to serve high-bandwidth devices

  • 802.3af/at/bt PoE++ capable on all ports with a 420W PoE budget for maximum power supply to devices

  • 240 Gbps switching capacity for improved performance

  • 4 Dual-Speed 10G SFP+ (fiber) uplink ports to connect at long distances, high speeds & high capacity

  • Security - access control list/port security; 802.1X & RADIUS authentication

  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency

  • 802.3ad link aggregation (LACP) supports traffic load balancing

  • Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)

Work Smart with EnGenius Cloud

Recensioner

Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
Technical Specifications
Port Standards 802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3an 10000Base-T Ethernet
802.3x Full-Duplex Flow Control
Network Ports 8 10/100/1000/2500/5000/10000 Mbps Ports + 4x SFP+ Ports
Switching Capacity 240Gbps
SDRAM 512MB
Flash Memory 128MB
PoE++ Capable Ports 1-8 (802.3 af/at/bt)
Total PoE Budget 420W
Power Source 100 ~ 240VAC, 50-60Hz
Physical Interface LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED
Ports Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)
Software Features (L3 Features)
Multiple IP Interface 20 IPv6 address
ARP Table Max. 192 ARP entries
Static ARP Static 192 ARP entries
IPv4 Static Route Max. 63 entries
IPv6 Static Route Max. 21 entries
Software Features (L2 Features)
MAC Address Table 32K
Jumbo Frame 10K
Multicast Group Max 256 groups
MLD Snooping MLD Snooping: v1
QoS-Number of Priority Queues Supported Queue 8
Trust Mode Cos/802.1p
DSCP
CoS/802.1p-DSCP
Scheduling Mechanism Strict / WRR/ Strict + WRR
Bandwidth Control Port-based bandwidth control (Ingress/Egress)
Port Security Max. 256 Entries
Access Control List (ACL) MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
Web Graphical User Interface(GUI) HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6
SSL Certificate Certificate/Key Import
SNMP SNMP v1/v2c/v3 Support
RMON RMON 1,2,3,9
System Time Time Setting/Daylight saving
Common L2 Features 802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree
Environmental & Physical
Temperature Range Operating: 32°F to 122°F (0°C to 50°C)
Humidity (Non-Condensing) Operating: 5% - 95%
Package Contents 1x Cloud Managed 10 Gig PoE++ Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit
Device Dimensions & Weights
ECS5512FP Device
Weight 5.75 lbs (2.61 kg)
Width 9.05” (230 mm)
Length 12.99” (330 mm)
Height 1.73” (44 mm)
Packaging
Weight 7.52 lbs (3.41 kg)
Width 15.75” (400 mm)
Length 12” (305 mm)
Height 3.94” (100 mm)
Warranty 2 year
Certifications CE, FCC, IC
