ECW160
Cloud Managed AC1300 Wave 2 Outdoor Wireless Access Point
MU-MIMO Wireless Access Point Accommodates High User Capacities & Ultra-Fast Speeds

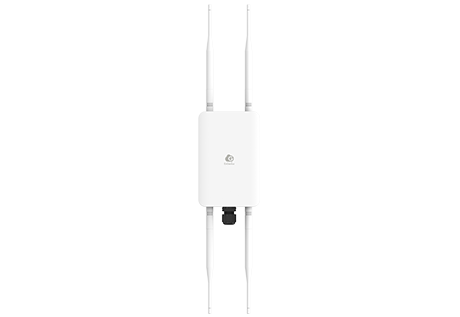

ECW160 Extend your high-speed wireless coverage to the outdoors with the high-powered ECW160, a Wave 2 cloud managed outdoor wireless access point. Reaching speeds to 867 Mbps on 5 GHz and to 400 Mbps on the 2.4 GHz frequency band, this feature-rich AP leverages advanced Wi-Fi and Beamforming antenna technology, maximizing performance and reliability while greatly increasing outdoor network user capacities. The AP is designed to operate in harsh environmental conditions and includes an IP67-rated waterproof and dustproof casing to protect it from the elements.
Product Highlight
- Managed by EnGenius Cloud
- 11ac Wave 2 Wireless Speeds to 867Mbps on 5GHz; to 400Mbps on 2.4GHz
- IP67-Rated Weatherproof & Dustproof Housing Withstands Harsh Environments
- Dual-Radio MU-MIMO Improves Performance & Expands User Capacities
- Beamforming Optimizes Antenna Signal, Reception & Reliability for Clients
- Four (4) Detachable 5dbi High-Gain, 360° SMA-Type Antennas
- WPA3 & WPA2-AES authentication support
Cloud AP Datasheet Datasheet
https://www.engeniusnetworks.eu/product/ecw220/
Model Comparison
ECW220 |
ECW120 |
ECW160 |
||
---|---|---|---|---|
Standard | 802.11ax | 802.11ac Wave2 | 802.11ac Wave2 | |
2.4 Ghz Speed | 574 Mbps | 400 Mbps | 400 Mbps | |
5 Ghz Speed | 1,200 Mbps | 867 Mbps | 867 Mbps | |
Radio Chains | 2x2:2 | 2x2:2 | 2x2:2 | |
PoE Mode | 802.3at | 802.3af | 802.3af | |
Mounting | Wall / Ceiling | Ceiling / Wall | Wall | |
Antennas | 2 x 2.4 GHz: 3 dBi ; 2 x 5 GHz: 3 dBi | 1 x 2.4 GHz: 5 dBi ; 1 x 5 GHz: 5 dBi | 2x detachable 5dBi (2.4 GHz) SMA ; 2x detachable 5dBi (5 GHz) SMA | |
Operation Mode | AP, AP Mesh, Mesh | AP, Mesh, AP mesh | AP,CB,WDS AP, WDS BR, WDS STA, Mesh | |
USB Ports | - | - | - | |
Dimensions | 160 x 160 x 33.2 mm | 161.5 x 161.5 x 41.5mm | 173.60 x111.20 x30.29 mm |
Recensioner
Be the first to post a review for this product
RADIO CHAINS/STREAMS | 2.4 GHz=2x2, 5 GHz=2x2 |
ANTENNAS | 2.4 GHz = 5.0 dBi 5 GHz = 5.0 dBi |
DATA RATES | 400Mbps + 867 Mbps |
2.4 GHZ | 2 stream, 802.11 b/g/n (max rate= 400Mbps) |
5 GHZ | 2 stream, 802.11 a/b/g/n/ac (max rate= 867Mbps) Wave 2, MU-MIMO |
CPU | - |
MEMORY | |
PHYSICAL INTERFACE | 1x 1000Mbps Ethernet Ports 1x USB |
POE | 802.3af / 802.3at |
DC JACK | 12V / 1.5A |
ESD Protection | Contact |
Surge Protection | 1KV |
INDOOR/OUTDOOR RATING | CE Marked for indoor/outdoor use, IP67 |
DIMENSION (W x D x H) | 111 x 174 x 30 mm |
WEIGHT | 829,5g |
OPERATING TEMPERATURE | -20°C ~ 60°C (-4°F ~ 176°F) |
WARRANTY | 2 year |
