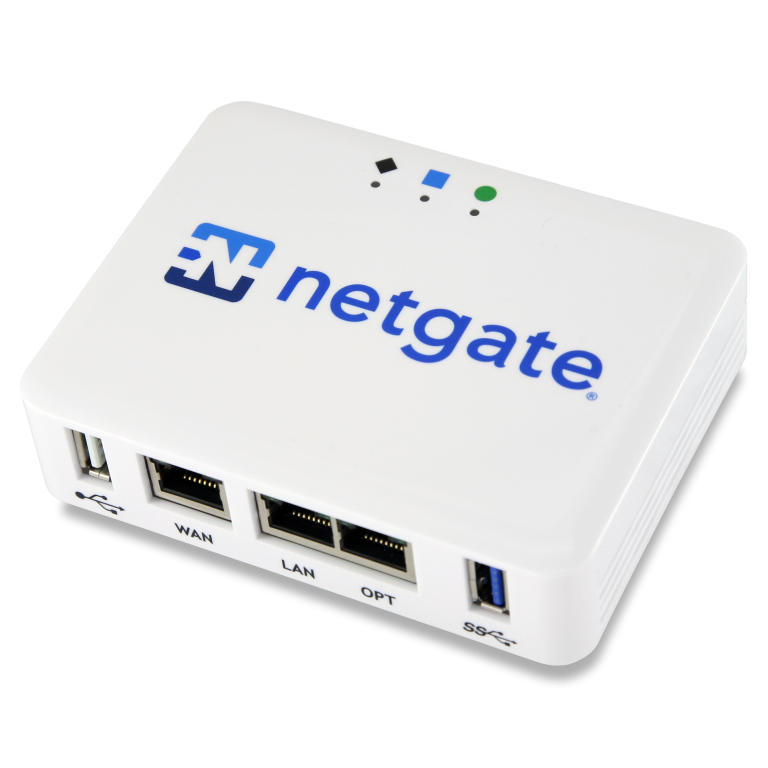

NETGATE 1100 pfSense® Security Gateway

Find the Ideal Appliance for Your Needs

NETGATE® 1100 SECURITY APPLIANCE WITH PFSENSE SOFTWARE

5X the speed and 2X the RAM vs. the SG-1000!

Netgate pfsense 1100 Review & Speed Tests

Follow Up: Is The Netgate pfsense SG-1100 Still A Good Home Router? What About Gaming?

The SG-1100 is Netgate’s replacement for the highly successful SG-1000. Consumer and business customers will quickly appreciate that this product packs a serious punch with the factory edition of pfSense® software, world-class price-performance, elegant packaging, and an unbeatable low price. The SG-1100 is underpinned by the powerful, yet energy efficient, 64-bit Marvell ARMADA® 3720 network processing system-on-chip (SoC), which fully leverages dual Cortex®-A53 ARM® processor cores.

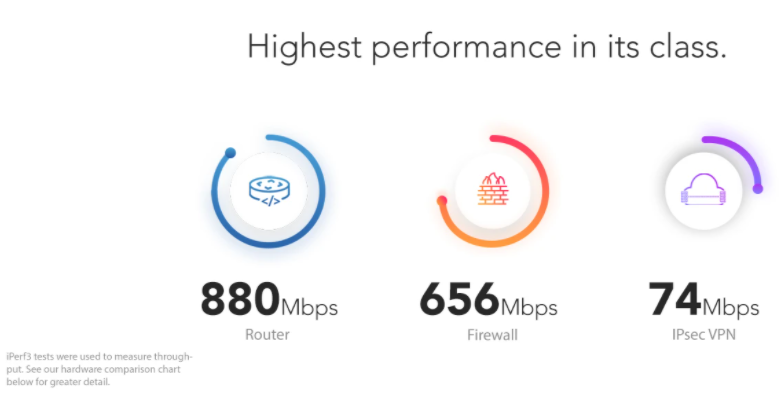

For users seeking router throughput up to 1 Gbps or an excellent firewall with up to 500 Mbps throughput, the SG-1100 is the new gold standard.

PRICE-PERFORMANCE KILLER

• 5x packet processing performance gain vs. the SG-1000

• Owing to only a slight price increase from the SG-1000 due to new tariffs, nearly a 5X packet filtering price performance gain

• 64-bit ARMv8 networking platform

• Based on the popular Marvell ESPRESSObin design


ENHANCED SECURITY

• Secured by pfSense software

• First product equipped with Microchip® CryptoAuthentication Device which provides assurance your system is running authentic, unaltered pfSense software


MODERN PACKAGING / FLEXIBLE INSTALLATION

• Cost efficient / Low power

• Sleek, compact, and attractive case

• Quiet operation / Fanless design

• Mount anywhere: Wall and DIN rail mount options coming soon


IDEAL FOR CONSUMER, SMB, AND SERVICE PROVIDER NEEDS

• Small Office Home Office (SOHO) internet access, home labs, and virtual offices

• SMB, Branch Office, remote worker locations

• Managed Service Providers (MSP) and Managed Security Service Providers (MSSP) services extension

• Extensive use case support


PRODUCT FEATURES

LOW TOTAL COST OF OWNERSHIP

• No artificial limits or add-ons required to make your system fully functional

• No additional usage or feature based pricing. Enjoy unlimited users, unlimited firewall rules, unlimited IPsec tunnels, dual WAN, etc.

• Low power requirements to help save you money

• No moving parts to wear out. This system is designed for a long deployment lifetime


GROWS WITH YOU

• From firewall to multi-function security gateway, get the security you need to protect your home or business

• Flexible configuration and support for multi-WAN, high availability, VPN, load balancing, reporting and monitoring, etc.

• Maximum Active Connections: 1 million


EASY GUI MANAGEMENT

• Manage pfSense settings through our web-based GUI

• No fumbling with a command line interface or typing arcane commands


SECURE REMOTE ACCESS

• Connect via encrypted Virtual Private Networks (VPN) between your offices, let mobile workers connect securely, or connect to the Cloud

• Use the built-in Amazon VPC Wizard to easily establish VPN connections with your Amazon EC2 cloud


OPEN SOURCE SOFTWARE

pfSense software is a free, open source firewall and router platform that is functionally competitive with expensive, proprietary commercial firewalls. The pfSense platform can be configured as a stateful packet filtering firewall, a LAN or WAN router, VPN appliance, DHCP server, DNS server, or can be configured for other applications and special purpose appliances. This next generation pfSense security appliance features include:

• Stateful packet filtering firewall or pure router

• Routing policy per gateway and per-rule for multiple WAN, failover, load balancing

• Transparent layer 2 firewall

• Support for IPV6, NAT, BGP

• Captive portal with MAC filtering, RADIUS support, etc

• VPN: IPsec, OpenVPN, PPTP

• Dynamic DNS client

• DHCP Server and Relay functions

• PPPoE Server

• Reporting and monitoring features with real time information

• IoT gateway / security endpoint

• Network tap

• IPMI / BMC firewall

• Learn more about the features of pfsense software


ADDITIONAL INFORMATION

• Quick Start Guide and other Manuals

• Full access to in-depth resources that will help you get started, and leverage the full value of pfSense:
  - Access to the continuously updated "The pfSense Book" (700+ pages)
  - ACB Auto-Configuration Backup Service for your pfSense Security Gateway Appliance
  - Monthly live education hangouts featuring in-depth pfSense topics hosted by our core developers
  - Access to the archive of education hangouts
• Not POE compatible

• (1) Does not support mSATA or LTE cards

• Note: This system is not RCM safety certified for Australia and New Zealand.


WARRANTY AND SUPPORT INFORMATION

• Community Support is always available from other community members on our forum here.

• Standard 30 day return policy

• One year manufacturer's return to depot warranty. The additional second year manufactuer's warranty is only available at the time of purchase.

• All specifications subject to change without notice
