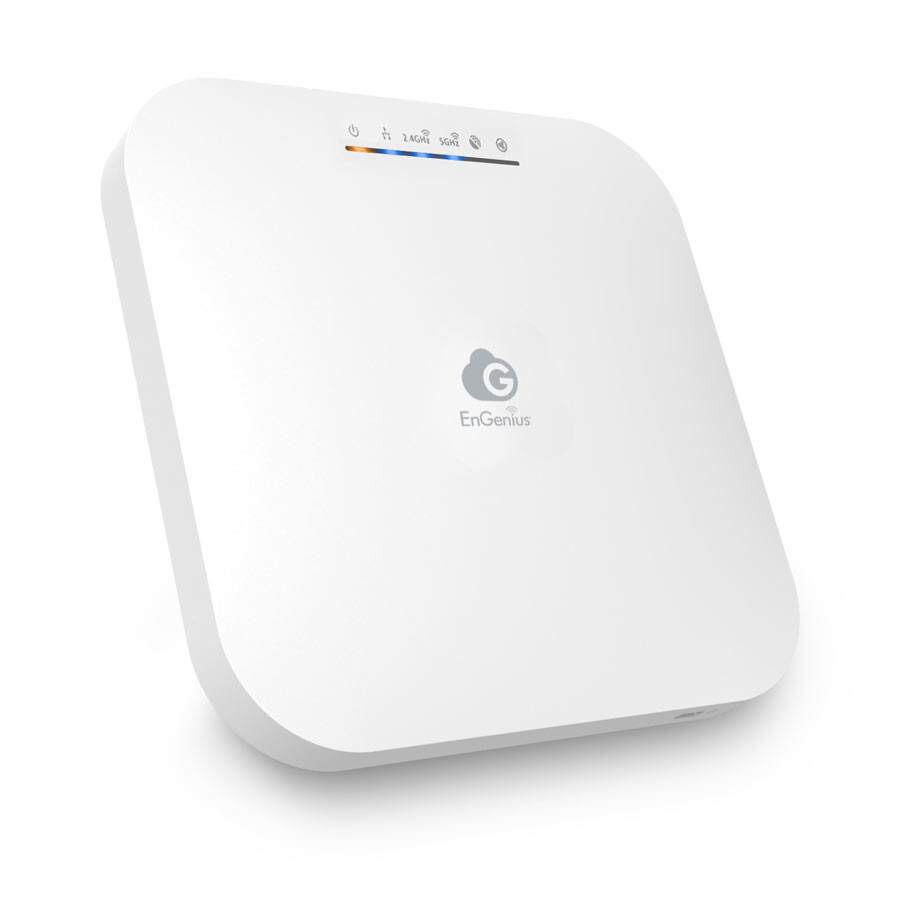

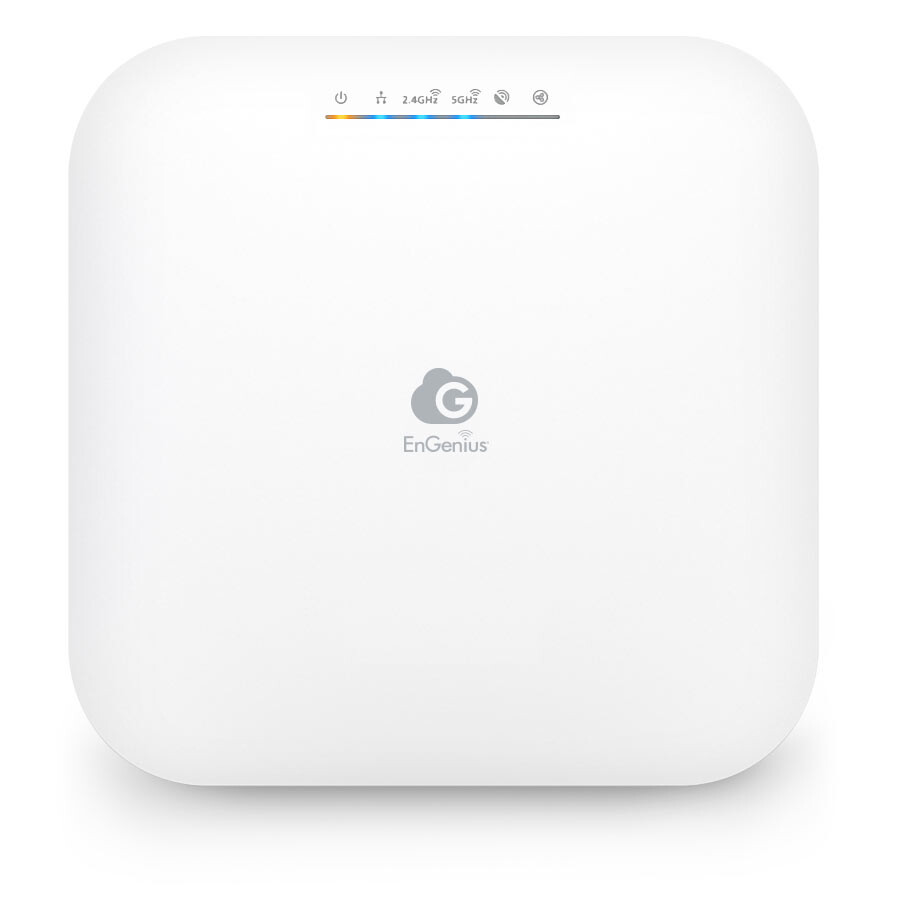

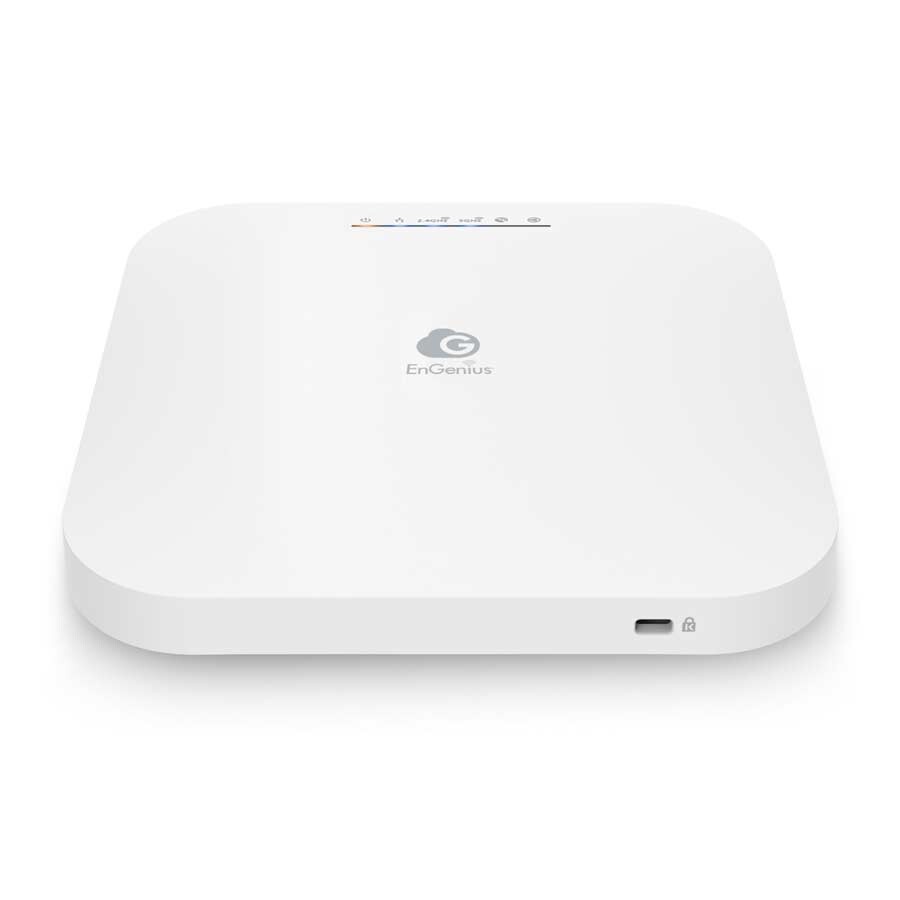

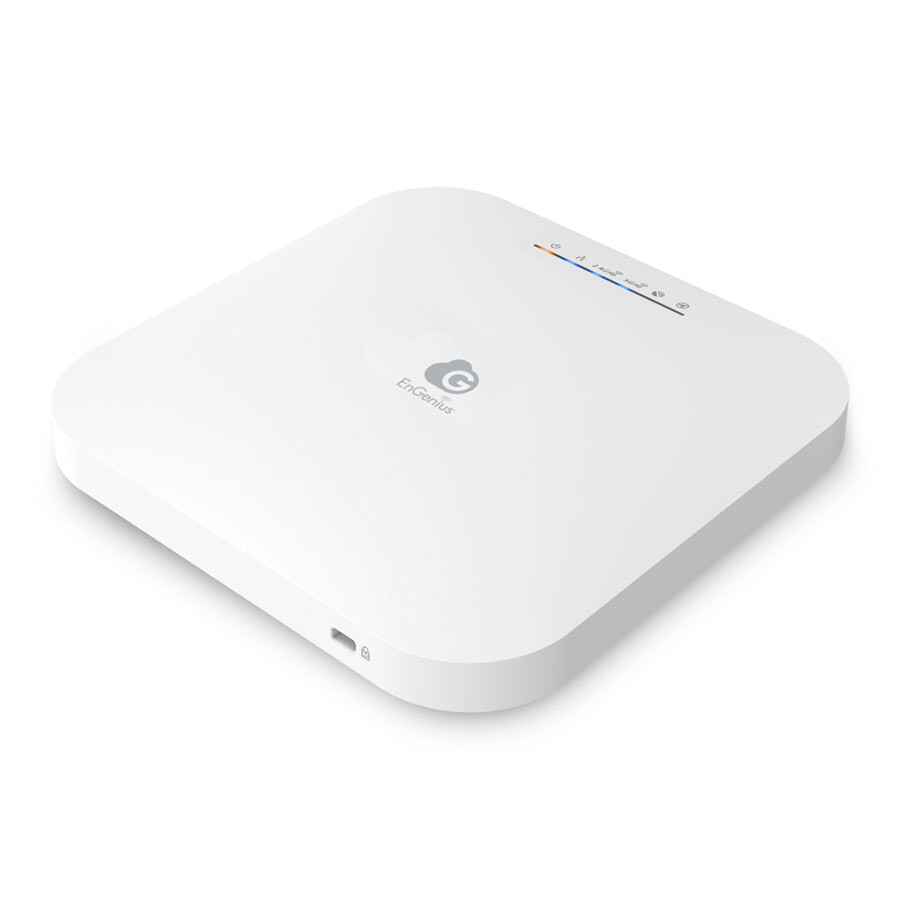

Cloud Managed Wi-Fi 6 4×4 Indoor Access Point with advanced security

MPN: 1102A1436301
Lagerstatus: På väg in
8 600 kr
Exklusive moms: 2 150 kr

> Datasheet <

Product Highlight

The EnGenius Wi-Fi 6, Cloud-Managed ECW230S Security Access Point is ideal for information-sensitive financial, medical, and distributed networks and comes equipped with EnGenius AirGuard, an intelligent wireless security system that identifies and eliminates intrusions and threats 24/7 while providing client devices with maximum performance.

Counter the Risk of Wireless Threats with EnGenius Security Access Points

  • Wi-Fi 6 technology for high-performance Wi-Fi in high-density, multi-device environments

  • 4x4 antennas to support up to 2,400 Mbps in 5 GHz & 1,148 Mbps in 2.4 GHz

  • 2.5 GbE throughput and 802.3at support for flexible installation over 100 meters (328 feet)

  • Wireless intrusion detection system (WIDS) for threat detection

  • Wireless intrusion protection system (WIPS) for attack remediation

  • Dedicated scanning radios for 24/7 wireless security monitoring

  • RF spectrum analysis for identifying clean channels and ensuring all SSIDs are legitimate

  • Zero-wait DFS to avoid client disruption when Radar is detected on DFS channels

  • Bluetooth 5 low energy for BLE device detection and location-based extended advertising

Must be Powered over Ethernet, does not include AC Adapters.

Work Smart with EnGenius Cloud


Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
Technical Specifications
Standards IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
Backward compatible with 802.11a/b/g/n/ac
Antenna 4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
Integrated Omni-Directional Antenna

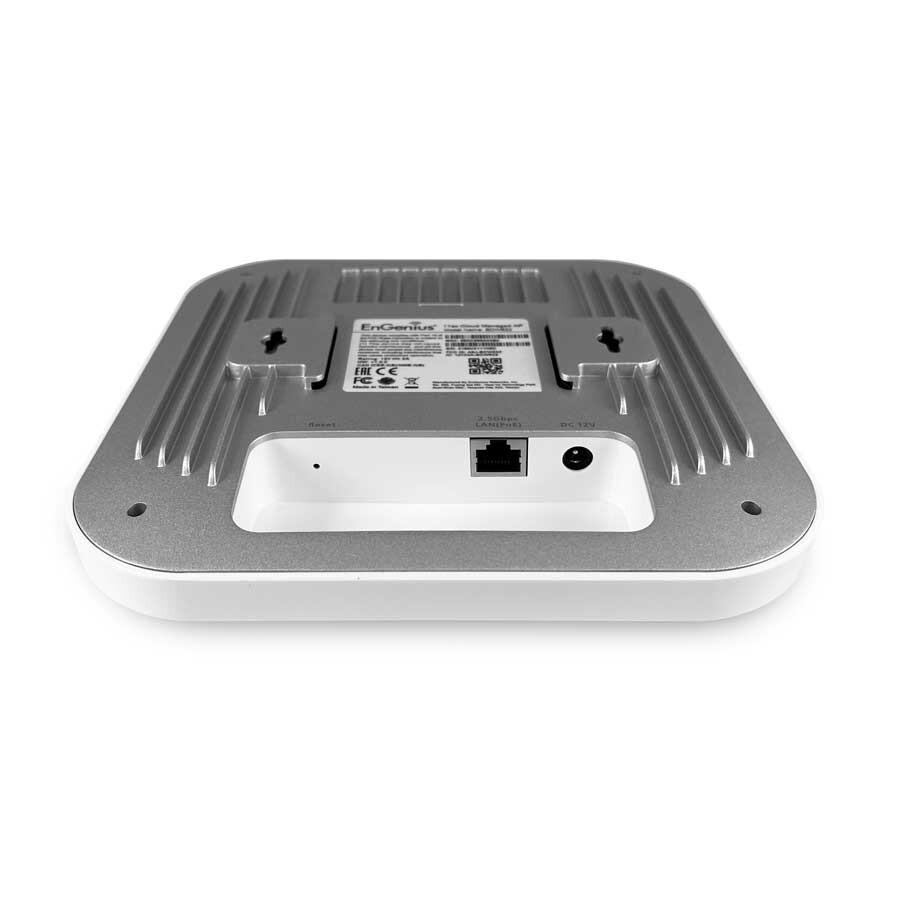

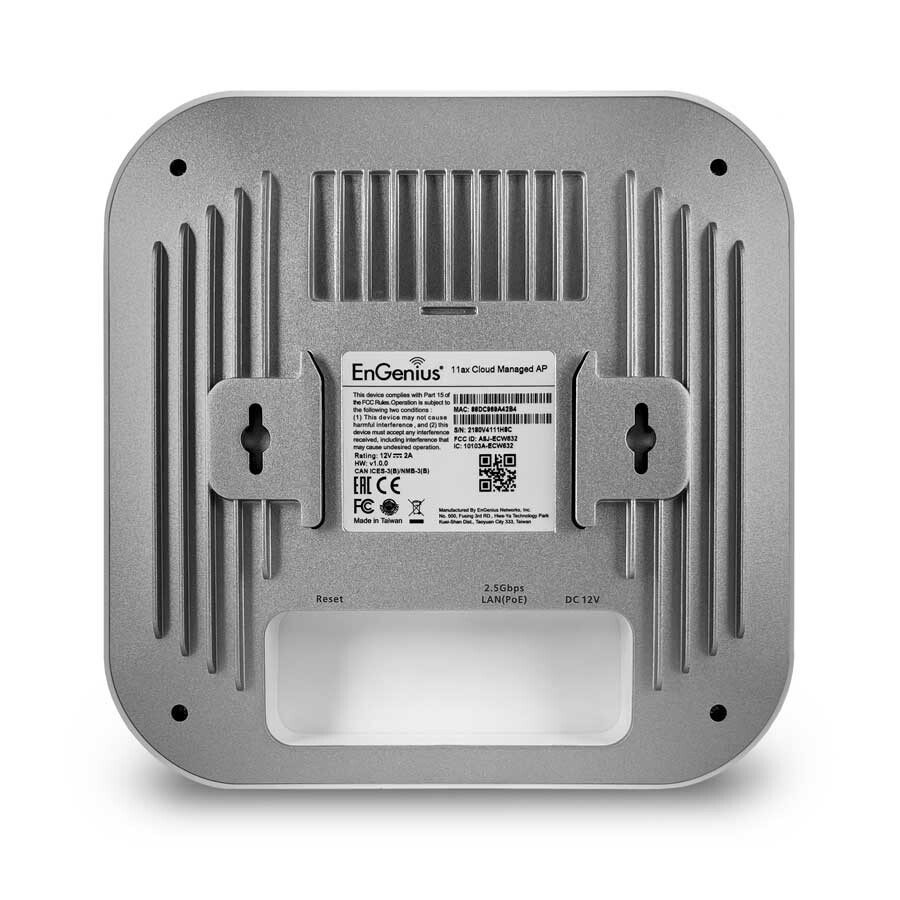

Physical Interface 1 x 10/100/1000/2500 Ethernet Port (PoE+)
1 x DC Jack
1 x Reset Button
LED Indicators 1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x Scanning
1 x BLE
Power Source Power-over-Ethernet: 802.3at Input
IEEE 802.11e Compliant Source
12VDC /2A Power Adapter (optional)
Maximum Power Consumption 19.5W
Wireless & Radio Specifications Operating Frequency: Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP, AP Mesh, Mesh
Frequency Radio 2.4 GHz: 2400 MHz~2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
Transmit Power Up to 20 dBm on 2.4 GHz:
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream 4 × 4:4
SU-MIMO Four (4) spatial stream Single User (SU) MIMO for up to 1,148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the 2.4 GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5 GHz radio.
MU-MIMO (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 5 GHz simultaneously.
Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4 GHz simultaneously
Supported Data Rates (Mbps) 802.11ax:
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 (MCS0 to MCS31)
802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)
Supported Radio Technologies 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)
Channelization 802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management Features
Multiple BSSID support 8 SSIDs on both 2.4 GHz and 5 GHz
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint With IEEE 802.11e Standard
Fast Roaming 802.11r/k
Wireless Security WPA2-PSK
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Environmental & Physical
Temperature Range Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage -40 ºF~176 ºF (-40 ºC~80 ºC)
Humidity (non-condensing) Operating: 90% or less
Storage 90% or less
Dimensions & Weight
Device ECW230S
Weight 597 g
Width 205 mm
Length 205 mm
Height 33.2 mm
Package Contents
1 – ECW230S Cloud Managed Indoor Access Point

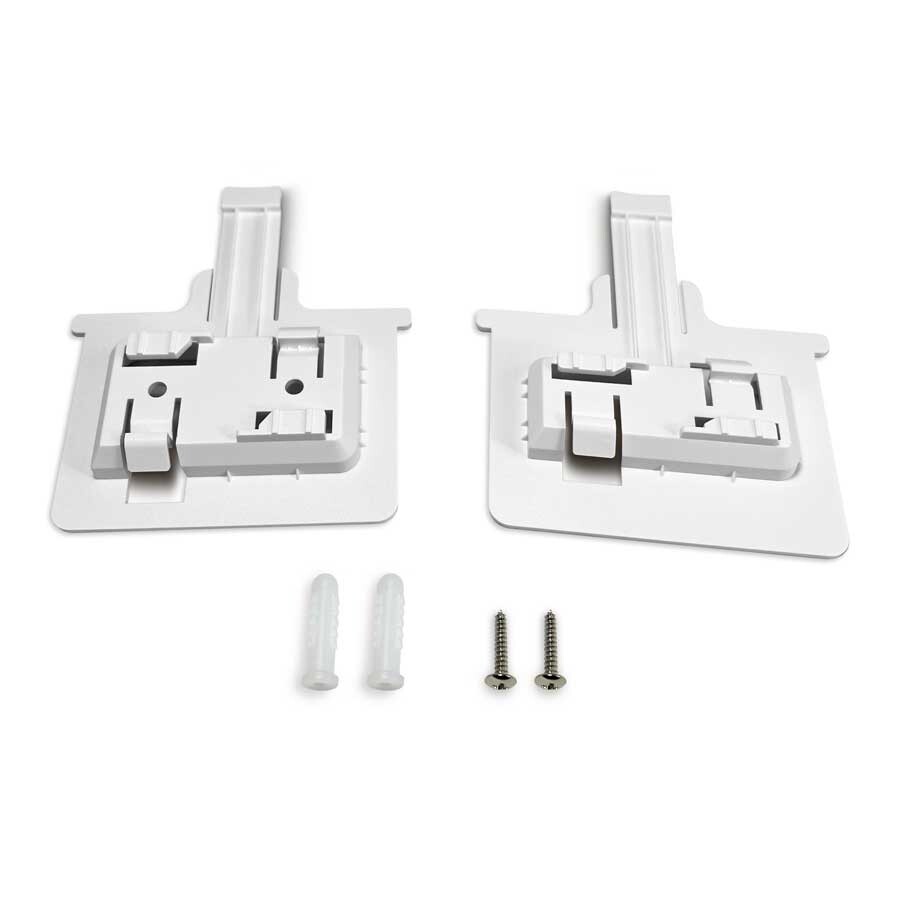

1 – Ceiling Mount Base (9/16” Trail)
1 – Ceiling Mount Base (15/16” Trail)
1 – Ceiling and Wall Mount Screw Kit
1 – Quick Installation Guide
Compliance Regulatory FCC, CE
Warranty 2 Years
