ECW336 Cloud Managed 6 GHz 4×4 Indoor Tri-Band Wireless WiFi 6E Access Point

Name: ECW336 Cloud Managed 6 GHz 4×4 Indoor Tri-Band Wireless WiFi 6E Access Point
Brand: EnGenius
SKU: ECW336
Price: 8600 SEK
Availability: OutOfStock

ECW336 Uses the new super-wide 6 GHz WiFi 6E band to increase performance, network capacity and wireless efficiency

SKU: ECW336

MPN: 1102A1426301

Lagerstatus: 5-10 dagar

> Datasheet <

Product Highlight

The EnGenius Cloud Managed ECW336 6 GHz tri-band 4x4 WiFi 6E Access Point supports up to 8.4 Gbps using 2.4 GHz, 5 GHz, and the newly-released 6 GHz band. The seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion. The wide-open 6GHz spectrum is occupied only by efficient Wi-Fi 6 client devices, removing frustrations currently caused by overcrowding of legacy devices on multiple Wi-Fi networks.
There are twice as many channels on the newly opened 6GHz band that do not overlap with each other greatly reducing network bottlenecks and enabling Gigabit WiFi. The ECW336 also supports a 5 GbE PoE+ port for easy AP placement, WPA3 Enterprise security and “enhanced open” for stronger encryption and authentication.Tri- concurrent 802.11ax Wi-Fi 6 architecture & backward-compatible.

The Ultimate - Performance Access Point | ECW336

4x4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds
8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi
5 GbE PoE+ port to maximize the connection speed and AP placement
Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices
The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications
The 6 GHz interference-free band allows ultra-fast Gigabit WiFi speeds
Integrated enterprise security and guest access
Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission
OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse
Access point diagnostic tools for real time channel utilization

Must be Powered over Ethernet, does not include AC Adapters.

Work Smart with EnGenius Cloud

Recensioner

Be the first to post a review for this product

Technical Specifications

Standards	IEEE 802.11ax on 2.4 GHz
	IEEE 802.11ax on 5 GHz
	IEEE 802.11ax on 6 GHz
	Backward compatible with 802.11a/b/g/n/ac

Antenna	4 x 2.4 GHz: 5 dBi(Integrated Omni-Directional)
	4 x 5 GHz: 6 dBi(Integrated Omni-Directional)
	4 x 6 GHz: 5 dBi(Integrated Omni-Directional)

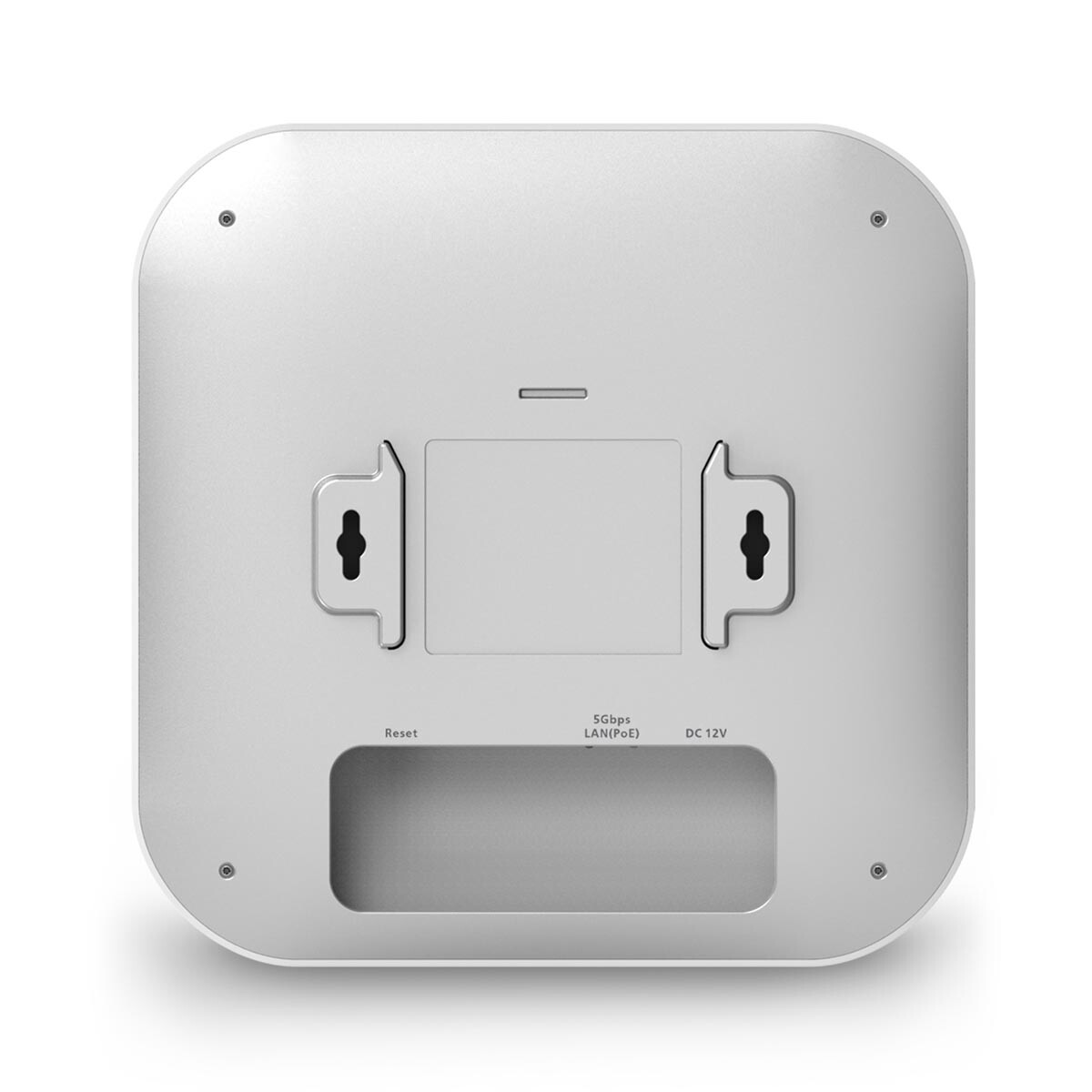

Physical Interface	1 x 10/100/1000/2500/5000 Ethernet Port (PoE+)
	1 x DC Jack
	1 x Reset Button

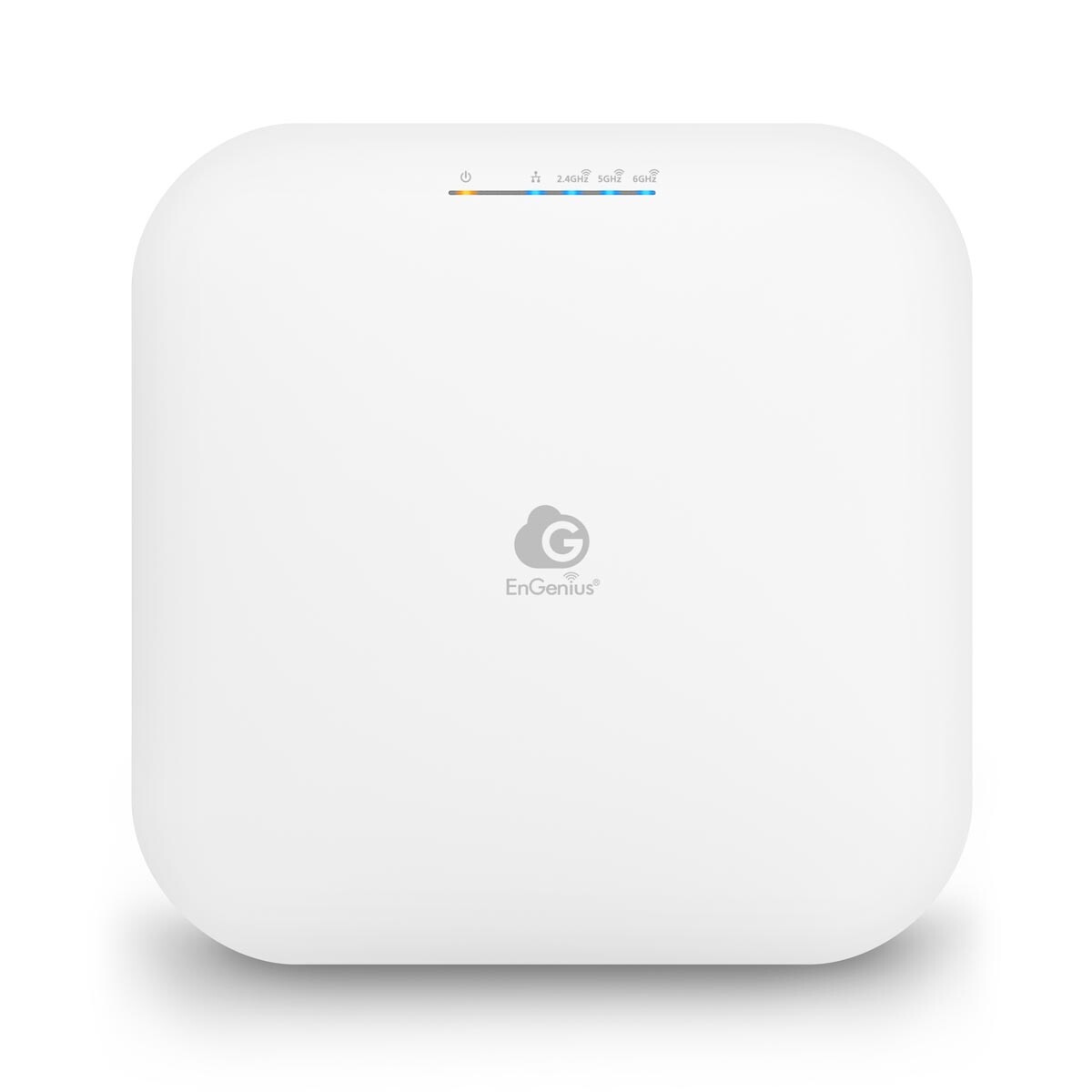

LED Indicators	1 x Power
	1 x LAN
	1 x 2.4 GHz
	1 x 5 GHz
	1 x 6 GHz

Power Source	Power-over-Ethernet: 802.3at Input
	IEEE 802.11e Compliant Source
	12VDC /2A Power Adapter

Maximum Power Consumption	22.5W

Wireless & Radio Specifications
Operating Frequency	Tri-Radio Concurrent 2.4 GHz & 5 GHz & 6GHz

Operation Modes	AP, AP Mesh, Mesh

Frequency Radio	2.4 GHz: 2400 MHz ~ 2482 MHz
	5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz,5725 MHz ~ 5850 MHz
	6 GHz: 5925MHz ~ 6425MHz, 6525MHz ~ 6875MHz

Transmit Power	Up to 23 dBm on 2.4 GHz
	Up to 23 dBm on 5 GHz
	Up to 23 dBm on 6 GHz
	(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Radio Chains/Spatial Stream	4 × 4:4

SU-MIMO	Four (4) spatial stream Single User (SU) MIMO for up to 1148 Mbps wireless data rate with HE40 bandwidth to a 4×4 wireless client device under the :2.4GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 2400 Mbps wireless data rate with HE80 to a 4×4 wireless device under the 5GHz radio. Four (4) spatial stream Single User (SU) MIMO for up to 4800 Mbps wireless data rate with HE160 to a 4×4 wireless device under the 6GHz radio.

MU-MIMO	Four (4) spatial streams Multiple (MU)-MIMO up to 4800 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 6GHz simultaneously. Four (4) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO :11ax capable wireless client devices under 5GHz simultaneously. Four (4) spatial streams Multiple (MU)-MIMO up to 1,148 Mbps wireless data rate for transmitting to four (4) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps)	802.11ax:
	2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
	5 GHz: 18 to 2,400 (MCS0 to MSC11, NSS = 1 to 4)
	6 GHZ: 18 to 4,800 (MCS0 to MSC13, NSS = 1 to 4)
	802.11b: 1, 2, 5.5, 11
	802.11a/g: 6, 9, 12, 18, 36, 48, 54
	802.11n: 6.5 to 600 (MCS0 to MCS31)
	802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies	802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
	802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
	802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization	802.11ax supports high efficiency throughput (HE) —HE 20/40/80/160 MHz
	802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
	802.11n supports high throughput (HT) —HT 20/40 MHz
	802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256- QAM)
	802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation	802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
	802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
	802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
	802.11b: BPSK, QPSK, CCK

Max Concurrent User	511 Per radio

Management Features
Multiple BSSID	8 SSIDs on both 2.4GHz, 5GHz & 6GHz bands

VLAN Tagging	Supports 802.1q SSID-to-VLAN Tagging
	Cross-Band VLAN Pass-Through
	Management VLAN

Spanning Tree	Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)	Complaint With IEEE 802.11e Standard
	WMM

SNMP	v1, v2c, v3

MIB	I/II, Private MIB

Fast Roaming	802.11r/k

Wireless Security	WPA2-PSK
	WPA2-Enterprise
	WPA3-PSK
	WPA3-Enterprise
	Hide SSID in Beacons
	MAC Address Filtering, Up to 32 MACs per SSID
	Wireless STA (Client) Connected List
	Https
	SSH Tunnel
	Client Isolation

Environmental & Physical
Temperature Range	Operating: 32ºF~104ºF (0 ºC~40 ºC)
	Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)

Humidity (non-condensing)	Operating: 90% or less
	Storage: 90% or less

Dimensions & Weight
Device	ECW336
Weight	630 g
Width	205 mm
Length	205 mm
Height	33.2 mm

Package Contents
	1 – ECW336 Cloud Managed Indoor Access Point
	1 – Ceiling Mount Base (9/16” Trail)
	1 – Ceiling Mount Base (15/16” Trail)
	1 – Ceiling and Wall Mount Screw Kit
	1 – Quick Installation Guide
