> Datasheet <
Product Highlights

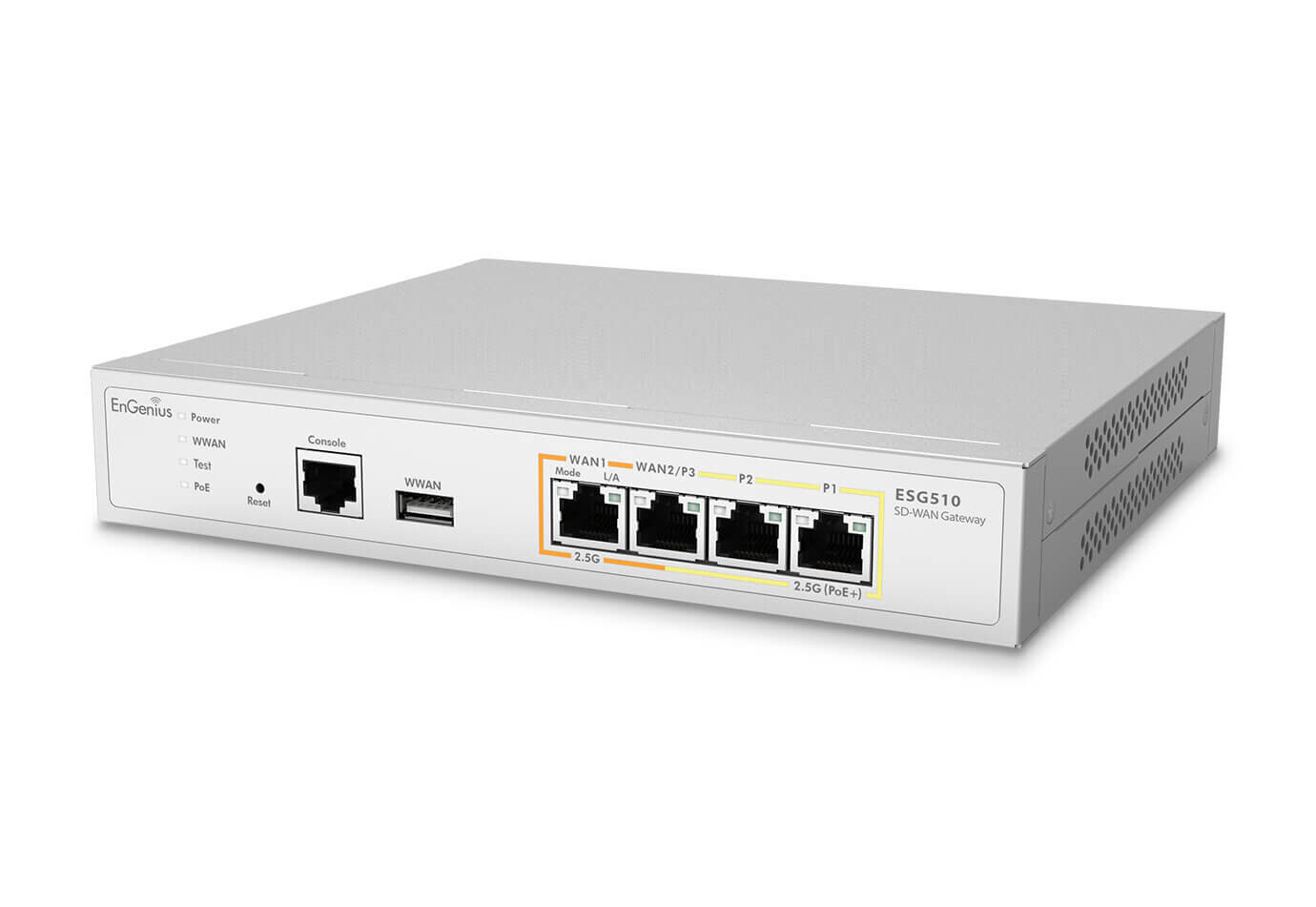

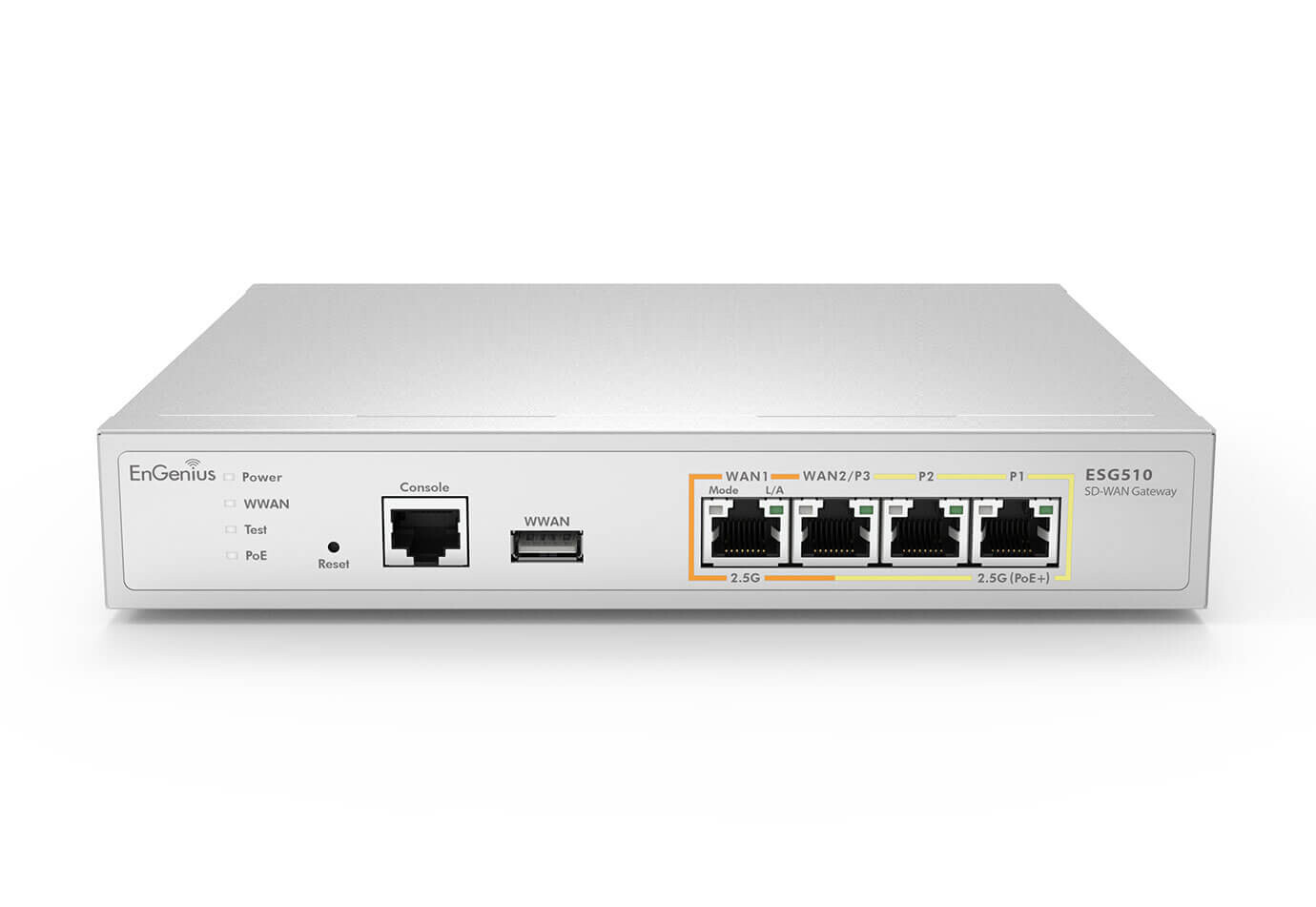

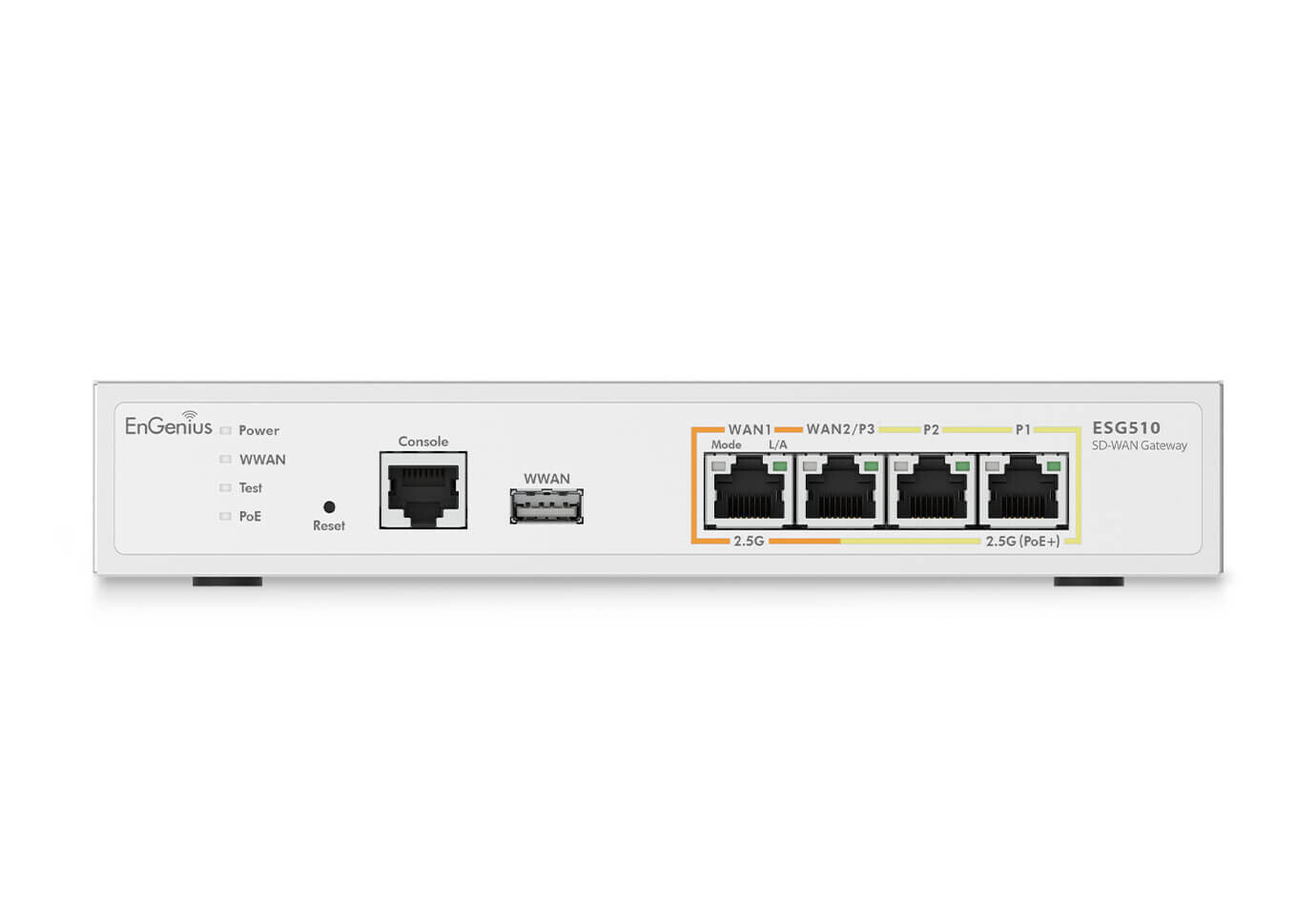

The EnGenius Cloud Managed ESG510 1.6GHz Quad-Core Security Gateway with Dual-WAN 2.5GbE, Dual-LAN 2.5GbE, cellular failover, stateful firewall, and site-to-site and client VPN delivers more simplicity and security to businesses by providing the IT team with effortless setup, enterprise-level security, and an end-to-end network solution.
- Simple, unified cloud management for any size business
- Intuitive and centralized device visibility from anywhere
- Quad core 1.6GHz processor for greater speed and power
- Dual 2.5GbE WAN and Dual 2.5GbE LAN for maximum performance
- 2.5GbE PoE+ to power up a Wi-Fi 6E AP, IP camera or IP phone
- Built-in load balancing and safeguards with dual-WAN and cellular failover
- Enhance security with a high-throughput firewall
- Quick VPN and VLAN setup for easy configurations
- Fast Site-to-site VPN and Client VPN for secure connections
- Self-healing AUTO VPN to minimize disruption
- Passthrough mode for easy integration into existing networks
- TPM chipset to enhance the security level of the gateway
- Touchless system maintenance and automatic updates
- No licensing or subscription fees needed
Unified Cloud-Management Integrating with APs and Switches
EnGenius security gateway offers a comprehensive network solution that puts everything under a single pane of glass. The cloud interface allows users to view and manage a network where each device—access points, switches, and gateways—can be explored for more granular visibility and options.
Dual WAN Ports for Load Balancing and Failover
The dual WAN ports are capable of highly efficient load-balancing, increasing overall WAN bandwidth. The gateway also features redundant WAN links, automatically switching itself from primary WAN to backup WAN in the event of WAN uplinks failure
Uninterrupted Internet Connection with Cellular Failover
If all WAN ports go down, the 3G/4G/5G network connection with the USB wireless dongle can provide a backup for the corporate network from disruption.

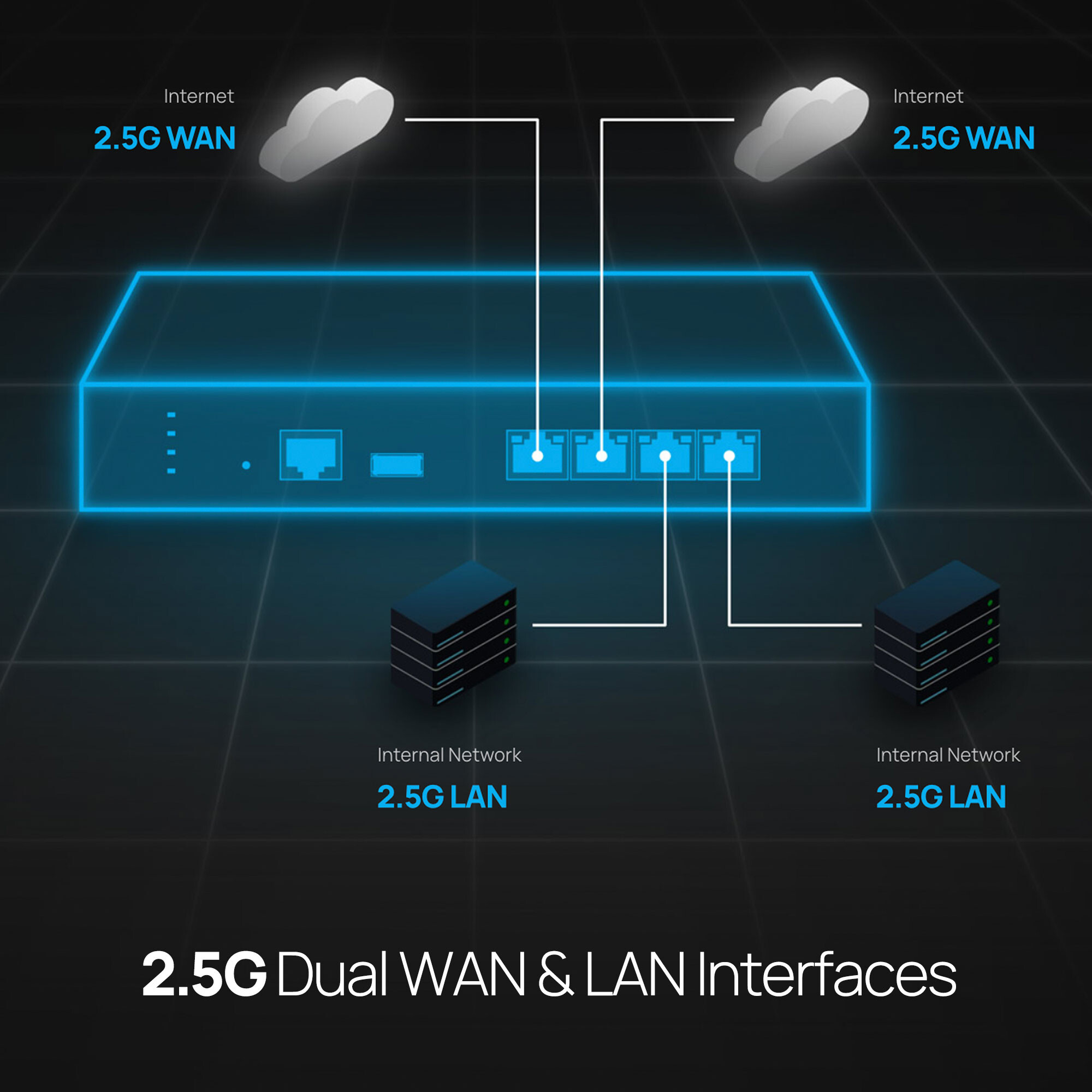

Optimal Performance with Four 2.5 GbE Ports
The security gateway has four 2.5G ports for dual WAN and dual LAN connection, which is suitable, not only for the high-speed WAN environment but also for in-line architecture design to have a 2.5G uplink to an existing router and 2.5G downlink with near-wire-speed firewall throughput up to 2.35Gbps.
Protect Networks with High-throughput Stateful Firewall
The stateful firewall of EnGenius Security Gateways protects business networks by integrating corporate security policies and real-time filtering of malicious internet traffic while delivering high throughput.

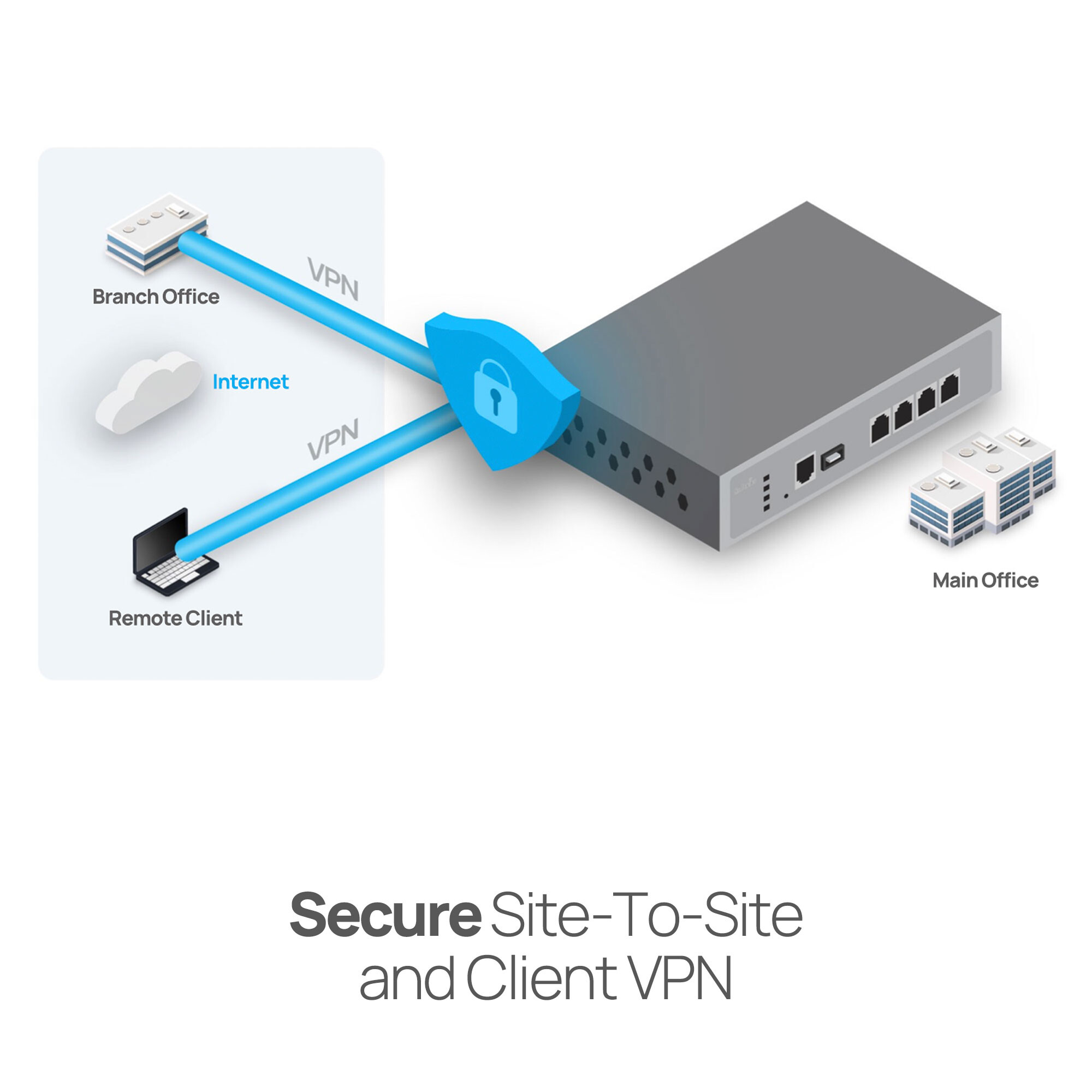

Easy-setup, Secure Site-to-Site VPN and Client VPN
It takes just a few clicks to create a secure VPN connection without the hassle of configuring all the VPN detail parameters. For remote sites, the VPN integrating corporate security policies for web filtering and configuration provides employees with a safe and efficient connection. For end-users, their private data communications are secured by the VPN tunnel for browsing the Internet or working from anywhere.
Self-healing Auto VPN for Easy Networking
EnGenius Cloud keeps monitoring the VPN connection between EnGenius Gateways and will automatically update related VPN information to all peers for continuous VPN connection in the case of WAN IP address reassignment or forwarding port change.
Passthrough Mode for Existing Network Gateway or Router
When businesses want to keep their current routing settings with existing routers or gateways, EnGenius Security Gateway can be set to the 'Passthrough' mode, which only performs data monitoring and security protection without affecting the original network configurations.
Remotely Manage Gateways On-the-Go
Easy setup and central management of the entire network from absolutely anywhere with EnGenius Cloud interface or Cloud To-Go mobile app.
Recensioner
Be the first to post a review for this product
Technical Specifications | CPU Processor: Quad-Core |
Operating Frequency: 1.6GHz | |
Memory: 4GB | |
Storage: 8GB | |
Network Ports (Copper Ports): 4 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet ports | |
Console Port: 1 x 10/100/1000, RJ-45 Ethernet port | |
PoE+ Capable Port: 1 (802.3af/at) LAN (P1) | |
Mounting Method: Wall mount | |
USB Interface: 1 x USB 3.0 | |
Security Chip: TPM |
Networking | Operation Mode: Routed/Passthrough |
Multiple WANS: Dual (WAN 1 & WAN/P3) | |
Bandwidth Limit: Per Interface/Per Client | |
Traffic Load Balancing: WAN load balancing with WRR | |
Networking Features: Static Route, Multiple WANs, USB Cellular, User Authentication, PPPoE, VLAN Tagging, Captive Portal, Custom Splash Page, Dynamic :Routing, Bandwidth Limit, Traffic Load Balancing, DHCP client/server/relay, Dynamic DNS support |
Performance & Capacity | Firewall (SPI Throughput): 4Gbps |
VPN Throughput: 970 Mbps | |
Max. TCP Concurrent Sessions: 1,000,000 | |
Max. Concurrent VPN Tunnels: 200 | |
Max. VLAN: 96 |
Firewall | Firewall Features:Stateful Packet Inspection, Policy Rules, Port Forwarding, 1:1 NAT, Allow Inbound Services |
VPN | Site-to-Site VPN: Mesh VPN/Hub-and-Spoke |
Encryption: DES, 3DES, AES (256-bit) | |
Authentication:MD5, SHA1, SHA2 (512-bit) | |
Key Management: IKEv1 (x-auth, mode-config), IKEv2 (EAP, configuration payload) | |
VPN Features: Site-to-Site VPN, Client VPN, Policy-based VPN, IPSec NAT traversal (NAT-T), Dead Peer Detection (DPD), Auto-VPN Connection, Auto NAT traversal |
Environmental & Physical | Power: 54V/1.2A |
Operating Temperature | 0°C to 40°C |
Humidity (non-condensing) | 5 to 95% non-condensing |
Package Contents | Power adapter, Power cord, RJ-45 Console Cable, Wall Mount Kit, Quick Installation Guide |
Dimensions & Weights | |
ESG510 Device | |
---|---|
Weight | 0.97 kg |
Width | 810 mm |
Length | 179.5 mm |
Height | 35 mm |
Packaging | |
---|---|
Weight | 1.7 kg |
Width | 104 mm |
Length | 279 mm |
Height | 297mm |
Compliance & Warranty | |
---|---|
Regulatory Compliance | FCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI |
Warranty | 2 years |
Certifications | CE, FCC, IC |
