Product Highlight

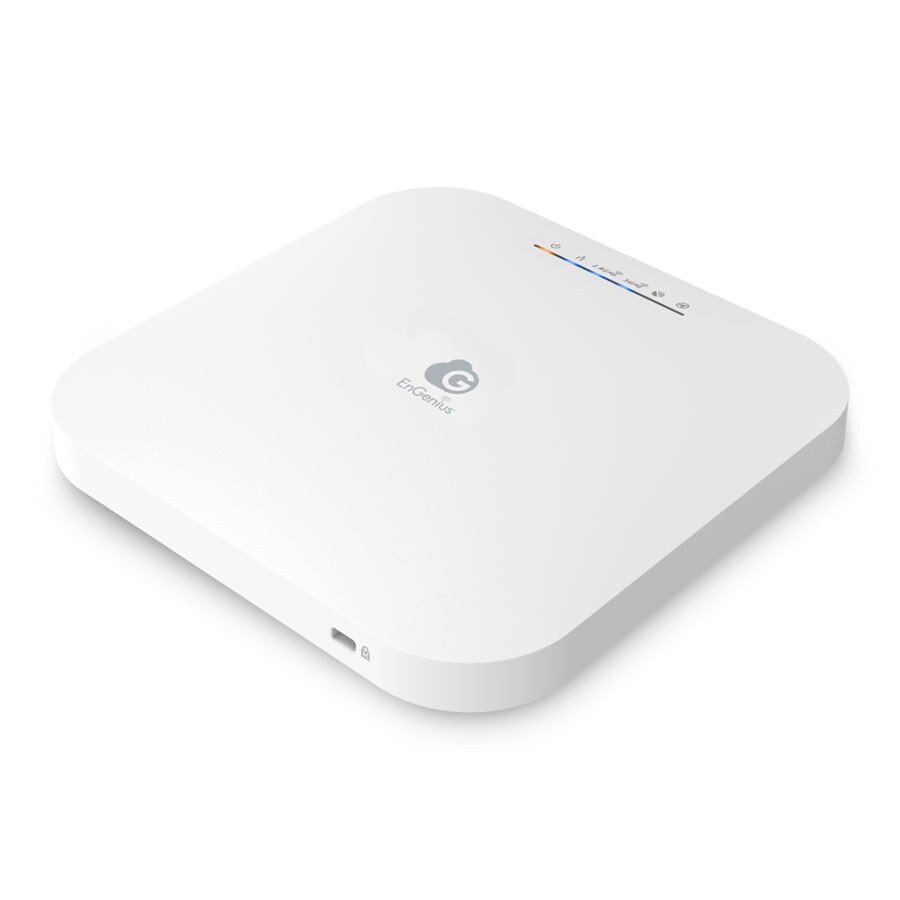

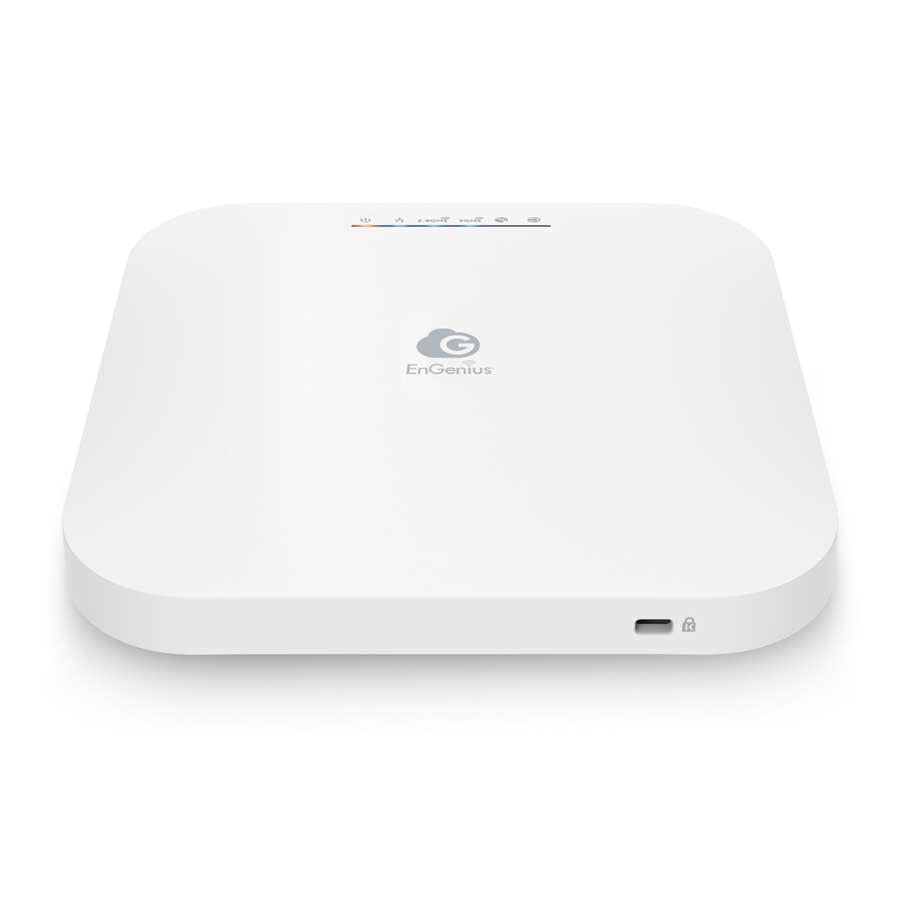

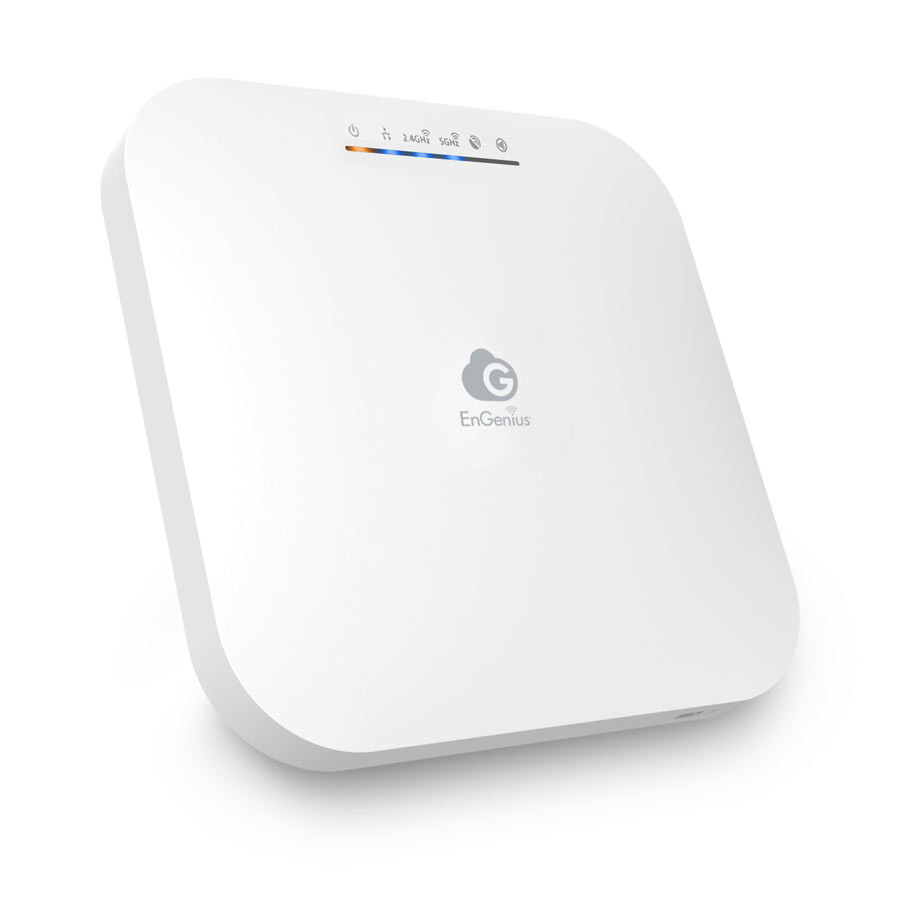

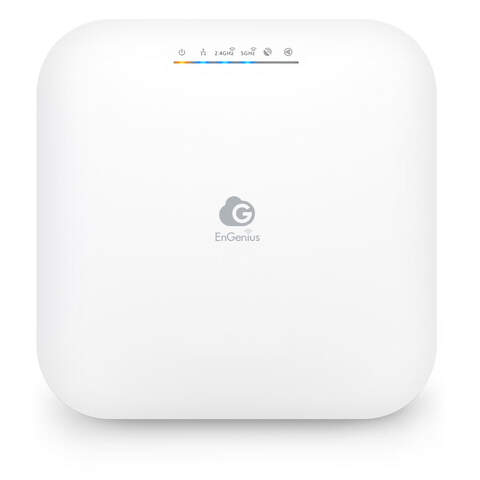

The EnGenius Wi-Fi 6, Cloud-Managed ECW220S Security Access Point is ideal for information-sensitive financial, medical, and distributed networks and comes equipped with EnGenius AirGuard, an intelligent wireless security system that identifies and eliminates intrusions and threats 24/7 while providing client devices with maximum performance.
ECW220S Wi-Fi 6 (802.11ax) 2x2 Cloud Managed Indoor Wireless Access Point which is engineered with WIPS radio and Zero DFS radio detection interfaces for listening spectrum and channel utilization by the WIPS radio and detect DFS signal via Zero DFS radio.
- Wi-Fi 6 technology for high-performance Wi-Fi in high-density, multi-device environments
- 2x2 antennas to support up to 1,200 Mbps in 5 GHz & 574 Mbps in 2.4 GHz
- 1 GbE throughput and 802.3at support for flexible installation over 100 meters (328 feet)
- Wireless intrusion detection system (WIDS) for threat detection
- Wireless intrusion protection system (WIPS) for attack remediation
- Zero-wait DFS to avoid client disruption when radar is detected on DFS channels
- Dedicated scanning radios for 24/7 wireless AP security monitoring
- RF spectrum analysis for identifying clean channels and ensuring all SSIDs are legitimate
- Bluetooth 5 low energy for BLE device detection and location-based extended advertising
Must be Powered over Ethernet, does not include AC Adapters.
Recensioner
Be the first to post a review for this product
| Standards |
IEEE 802.11ax on 2.4 GHz |
|
IEEE 802.11ax on 5 GHz |
|
Backward compatible with 802.11a/b/g/n/ac |
| Antenna |
2 x 2.4 GHz: 4 dBi |
|
2 x 5 GHz: 5 dBi |
|
Integrated Omni-Directional Antenna |

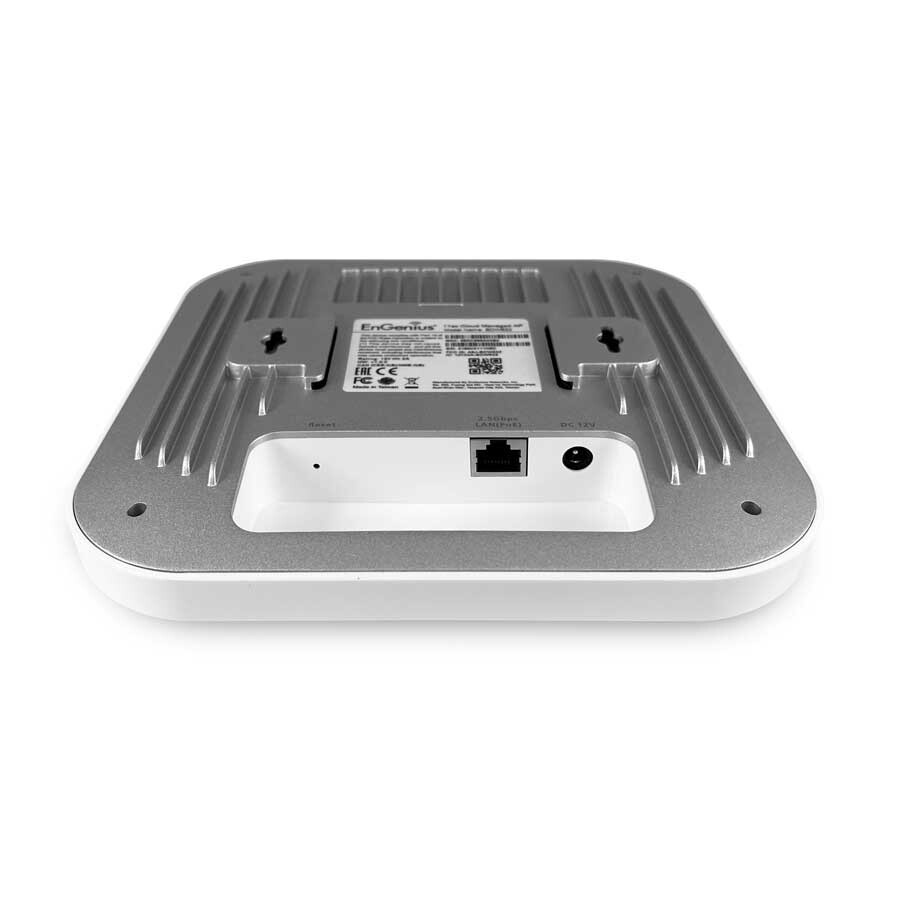

| Physical Interface |
1 x 10/100/1000 Ethernet Port (PoE+) |
|
1 x DC Jack |
|
1 x Reset Button |

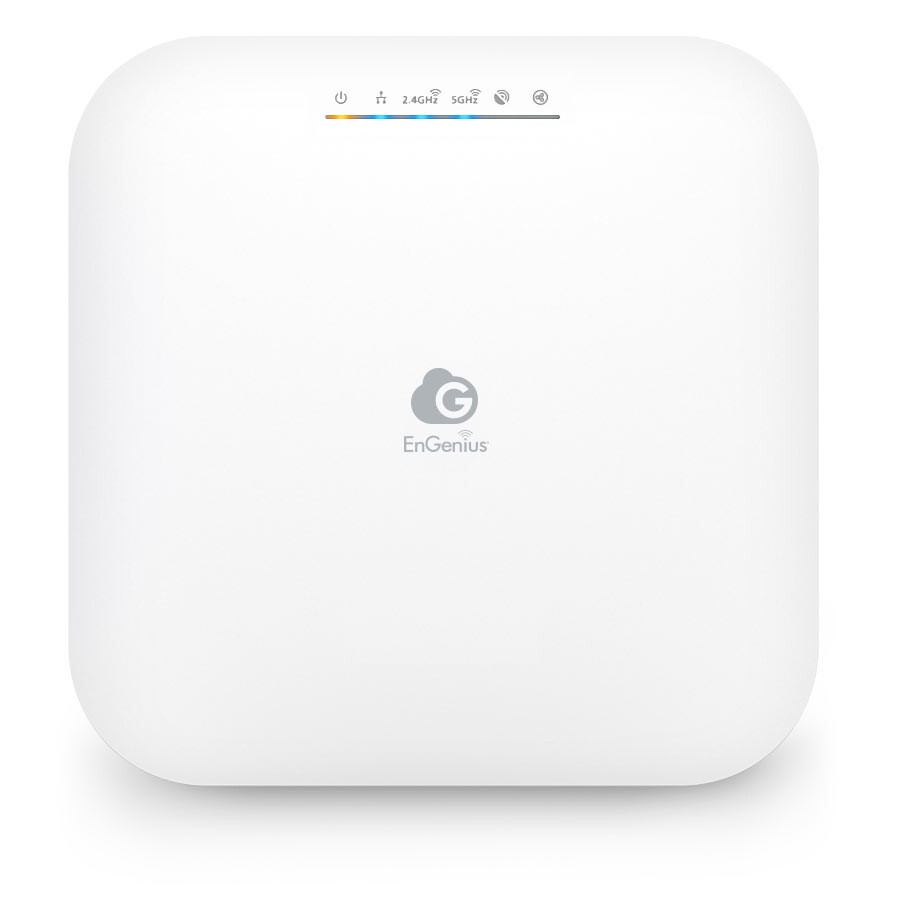

| LED Indicators |
1 x Power |
|
1 x LAN |
|
1 x 2.4 GHz |
|
1 x 5 GHz |
| Power Source |
Power-over-Ethernet: 802.3af/at Input |
|
IEEE 802.11e Compliant Source |
|
12VDC /1.5A Power Adapter (optional) |
| Wireless & Radio Specifications |
| Operating Frequency |
Dual-Radio Concurrent 2.4 GHz & 5 GHz |
| Operation Modes |
AP, AP Mesh, Mesh |
| Frequency Radio |
2.4 GHz: 2400 MHz~2482 MHz |
|
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
| Transmit Power |
Up to 22 dBm on 2.4 GHz |
|
Up to 22 dBm on 5 GHz |
|
(Maximum power is limited by regulatory domain) |
| Tx Beamforming (TxBF) |
| Radio Chains/Spatial Stream |
2 × 2:2 |
| SU-MIMO |
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio. Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio. |
| MU-MIMO |
Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously. |
| Supported Data Rates (Mbps) |
802.11ax |
|
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2) |
|
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) |
|
802.11b: 1, 2, 5.5, 11 |
|
802.11a/g: 6, 9, 12, 18, 36, 48, 54 |
|
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) |
|
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
| Supported Radio Technologies |
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) |
|
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) |
|
802.11b: Direct-sequence spread-spectrum (DSSS) |
| Channelization |
802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz |
|
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz |
|
802.11n supports high throughput (HT) —HT 20/40 MHz |
|
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) |
|
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
| Supported Modulation |
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
|
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM |
|
802.11b: BPSK, QPSK, CCK |
| Maximum Power Consumption |
12.8W |
| Management Features |
| Multiple BSSID |
support 8 SSIDs on both 2.4GHz and 5GHz bands |
| VLAN Tagging |
Supports 802.1q SSID-to-VLAN Tagging |
|
Cross-Band VLAN Pass-Through |
|
Management VLAN |
| Spanning Tree |
Supports 802.1d Spanning Tree Protocol |
| QoS (Quality of Service) |
Complaint With IEEE 802.11e Standard |
|
WMM |
| Wireless Security |
WPA2-PSK |
|
WPA2-Enterprise |
|
WPA3-PSK |
|
WPA3-Enterprise |
|
Hide SSID in Beacons |
|
MAC Address Filtering, Up to 32 MACs per SSID |
|
Wireless STA (Client) Connected List |
|
Https |
|
SSH Tunnel |
|
Client Isolation |
| Environmental & Physical |
| Temperature Range |
Operating: 32ºF~104ºF (0 ºC~40 ºC) |
| Storage |
-40 ºF~176 ºF (-40 ºC~80 ºC) |
| Humidity (non-condensing) |
Operating: 90% or less |
| Storage |
90% or less |
| Dimensions & Weight |
| Device |
ECW220S |
| Weight |
390 g |
| Width |
160 mm |
| Length |
160 mm |
| Height |
33.2 mm |
| Package Contents |
1 – ECW220S Cloud Managed Indoor Access Point |
|

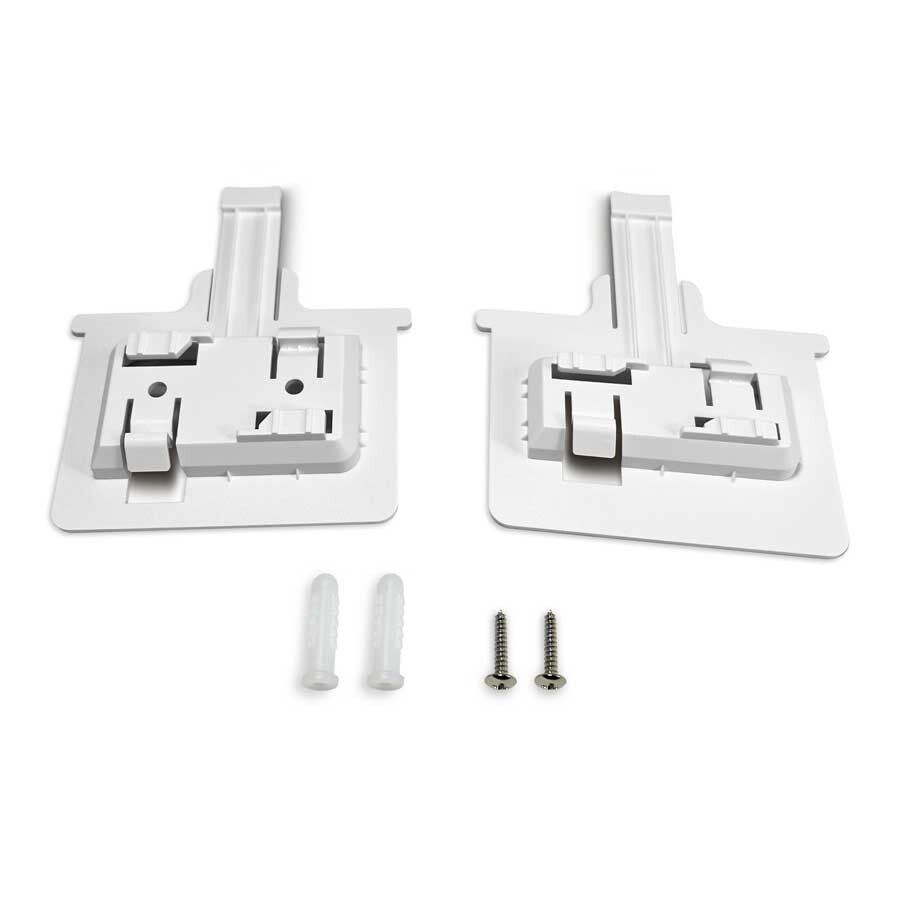

1 – Ceiling Mount Base (9/16” Trail) |
|
1 – Ceiling Mount Base (15/16” Trail) |
|
1 – Ceiling and Wall Mount Screw Kit |
|
1 – Quick Installation Guide |
| Compliance Regulatory |
FCC, CE |
