Provides exceptional in-room wired and wireless connectivity

MPN: 1102A1359303
Lagerstatus: På väg in
2 450 kr
Exklusive moms: 612,50 kr

> Datasheet <

ECW215  Product Highlights

EnGenius Cloud Managed ECW215 Wi-Fi 6 dual-band 2x2:2 wall-plate access point with built-in 2-port gigabit switch, with port 2 supporting PoE power transfer to other PoE devices, provides exceptional in-room wired and wireless connectivity for superior entertainment in hotel rooms, student housing, assisted living, senior living, multi-tenant dwellings, and classrooms.

  • Dual-band 802.11ax 2x2 supports up-to 1,200 Mbps (5 GHz) & 574 Mbps in 2.4-GHz

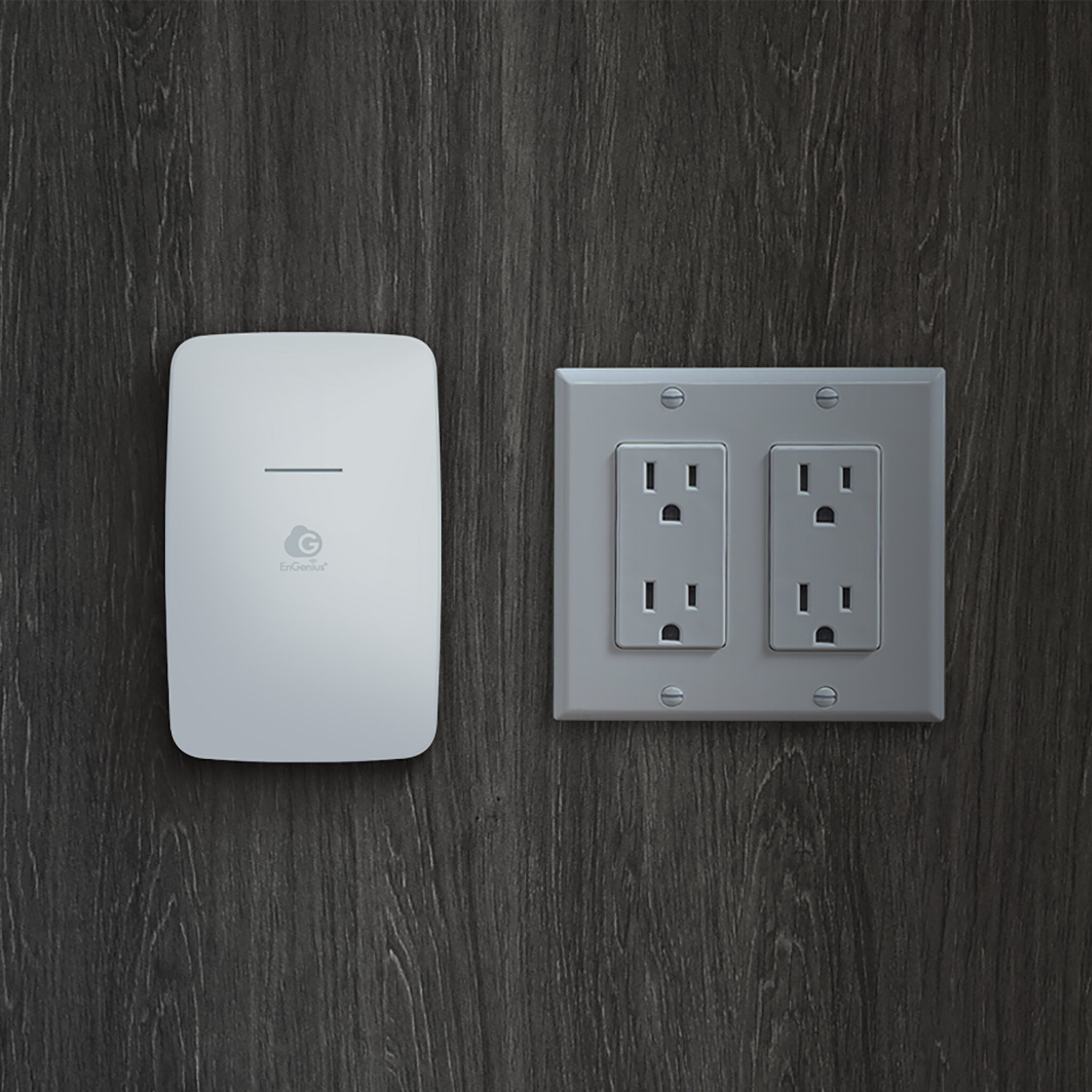

  • Sleek, low-profile design for in-room Wi-Fi & wired connectivity

  • On-board 2-port switch offers port-based 802.1Q VLAN support

  • LAN1 & LAN2 support 802.3af/at PoE input for flexible installation up-to 328 feet

  • Connect & power VoIP phones or other PoE devices with PSE Support

  • SmartCasting to personalize in-room media with mobile device streaming to TV’s

  • Extend SSID settings to LAN ports & provide captive portal, splash page, and advanced security

  • Mesh wireless support simplifies setup, optimizes signals & self-heals

Must be Powered over Ethernet, does not include AC Adapters.


Be the first to post a review for this product

Rate This Product

You must be logged in to rate this product
Processor Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.0GHz
Antenna 2 x 2.4 GHz: 4 dBi, 2 x 5 GHz: 5 dBi, Integrated Omni-Directional Antenna

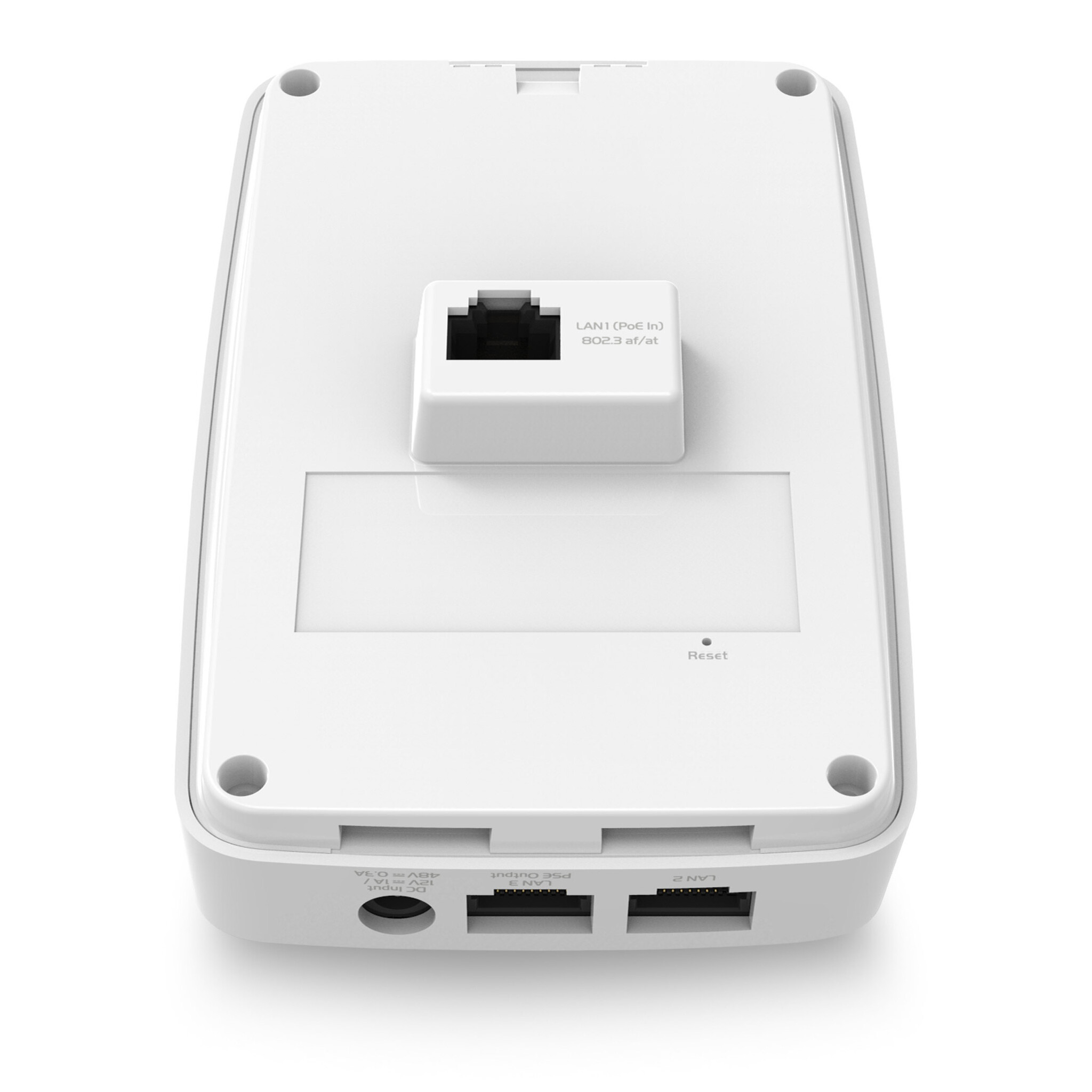

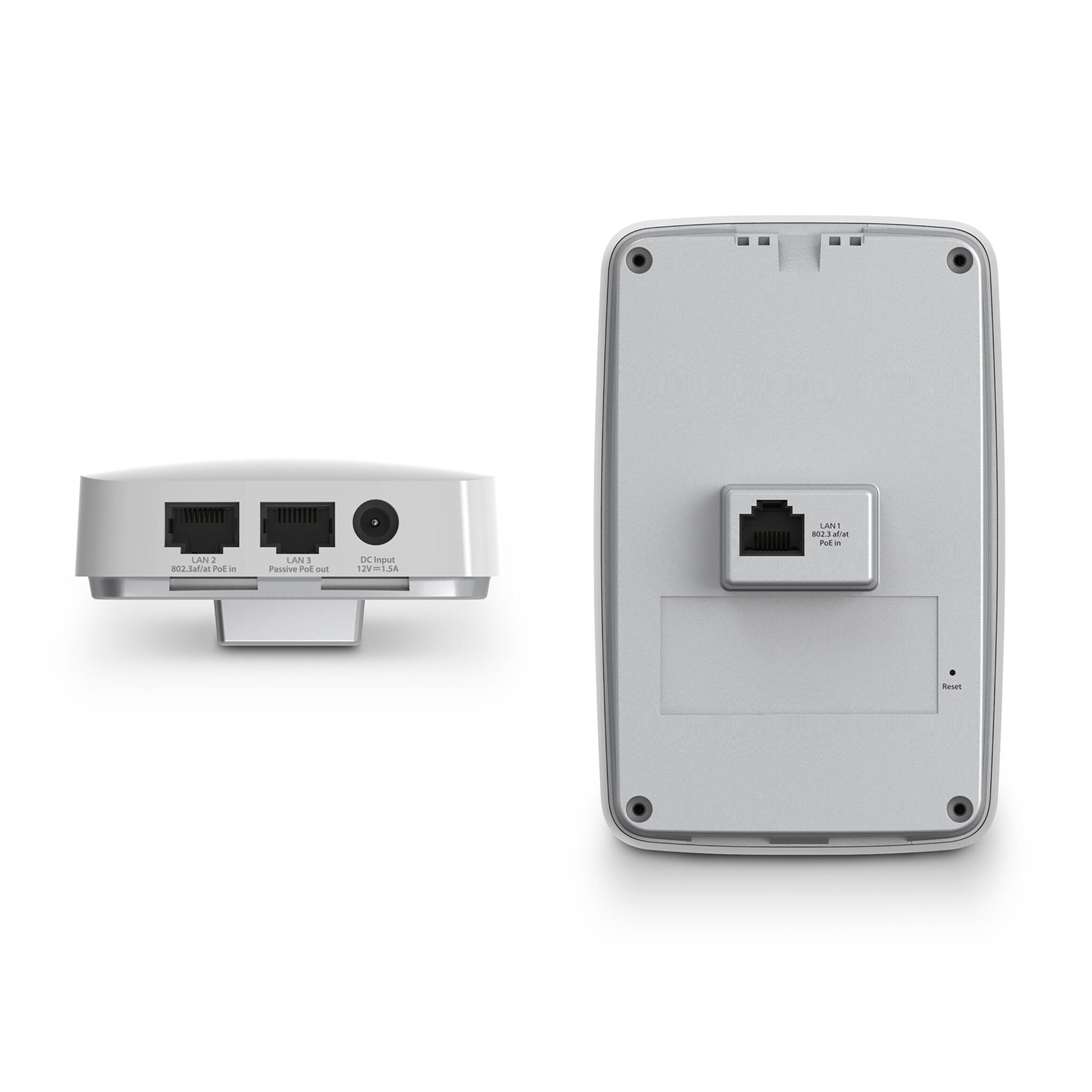

Physical Interface 1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)
2 x 10/100/1000 Mbps Ethernet Switched Ports (client ports)
- Port 3 PoE PSE (ECW215 requires 802.3at power source)
1 x Reset Button
1 x DC Jack
LED Indicators :1 x Multi- color LED for following behavior
- Power up
- Cloud connecting
- Disconnected
Power Sources Power-over-Ethernet: 802.3af/at Input
- PoE Output w/ 802.3at , IEEE 802.11e Compliant Source
DC Jack: 12V/1.5A 48V
Maximum Power Consumption: 14.2W
Wireless & Radio Specifications
Operating Frequency Dual-Radio Concurrent 2.4 GHz & 5 GHz
Operation Modes AP, AP Mesh, Mesh
Frequency Radio: 2.4 GHz: 2400 MHz ~ 2482 MHz, 5 GHz: 5150 MHz ~ 5250 MHz, 5725 MHz ~ 5850 MHz
Transmit Power:
Up to 20 dBm on 2.4 GHz
Up to 20 dBm on 5 GHz
Tx Beamforming (TxBF)
Radio Chains/Spatial Stream: 2x2:2
SU-MIMO Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams
SU-MIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless
client device under both 2.4GHz and 5GHz radio.
MU-MIMO Two (2) spatial streams multi-user (MU)-MIMO for up to 1,200 Mbps wireless
data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless
client devices under 5GHz simultaneously.
Two (2) spatial streams multi-user (MU)-MIMO for up to 574 Mbps wireless data
rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client
devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps) 802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies:
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division
Channelization 802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management Multiple BSSID: 8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN
Spanning Tree Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service) Complaint with IEEE 802.11e Standard, WMM
SNMP v1, v2c, v3
MIB I/II, Private MIB
Wireless Security WPA3 Enterprise
WPA2 Enterprise
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation
Environment & Physical
Temperature Range Operating: 32ºF~104ºF (0 ºC~40 ºC)
Storage: -40 ºF~176 ºF (-30 ºC~80 ºC)
Humidity (non-condensing) Operating: 90% or less
Storage: 90% or less
Dimensions & Weights
Device ECW215
Weight .80 lbs. (.363 Kg)
Length 5.5” (140 mm)
Width 3.5” (90 mm)
Height 1.6” (40 mm)
Certifications FCC, CE, IC
Warranty 2 Year
Weight 0.4 Kg
Length 187 mm
Width 137 mm
Height 70 mm
